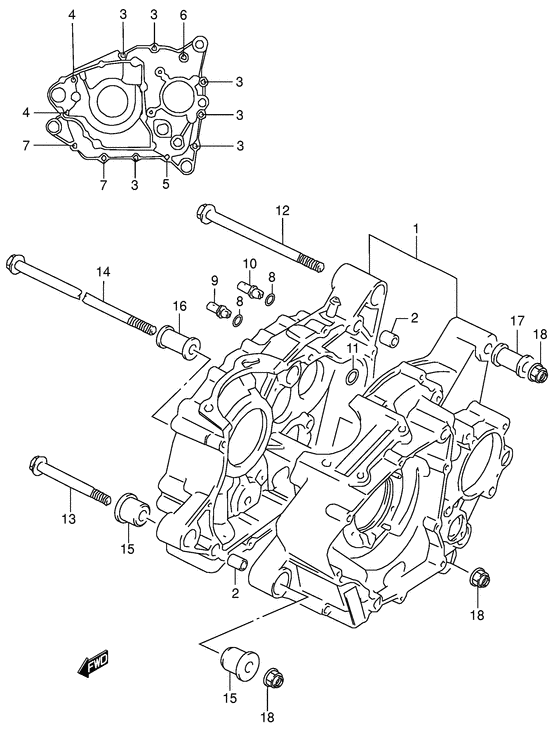

Crankcase Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K7
- Engine Capacity
- 158
- Year
- 2007
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*71100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-35861-000
Crankcase set
|
11301-35861-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-35862-000
CRANKCASE SET
|
11301-35862-000 |
— | ||
|
2
|
2
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
3
|
3
01547-06403-000
Bolt
|
01547-06403-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0640B-000 Bolt |
01547-0640B-000 |
from US $0.91 |
||
|
4
|
4
01547-06503-000
Bolt
|
01547-06503-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0650B-000 Bolt |
01547-0650B-000 |
from US $0.84 |
||
|
5
|
5
01547-06603-000
Bolt
|
01547-06603-000 |
— | ||
| replacement | |||||
|
5
|
5
01547-0660B-000 BoltBolt, crankcase |
01547-0660B-000 |
from US $0.84 |
||
|
6
|
6
01547-06753-000
Bolt
|
01547-06753-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-0675B-000 BOLT |
01547-0675B-000 |
from US $5.36 |
||
|
7
|
7
01547-06853-000
Bolt
|
01547-06853-000 |
— | ||
| replacement | |||||
|
7
|
7
01547-0685B-000 BoltBolt, crankcase (6x85) |
01547-0685B-000 |
from US $5.46 |
||
|
8
|
8
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring, oil gallery jet (d:1.2,id:4.0); |
09280-04004-000 |
from US $1.82 |
||
|
9
|
9
09493-28010-000 JET,AIR (14)Jet, oil gallery Jet, oil gallery (#14); |
09493-28010-000 |
from US $6.72 |
||
|
10
|
10
09493-32006-000 JET,OIL GALLERY(16)Jet, oil gallery (#16); |
09493-32006-000 |
from US $7.95 |
||
|
11
|
11
09280-10016-000 O RING(D:1.9,ID:9.8)O ring O ring, oil gallery (d:1.9,id:9.8); |
09280-10016-000 |
from US $1.52 |
||
|
12
|
12
09103-10118-000 BOLT(10X195)Bolt (l:195) Bolt (10x195); |
09103-10118-000 |
from US $14.69 |
||
|
13
|
13
09103-10061-000 BOLT(10X90)Bolt, fr diff housing mtg Bolt (10x90); |
09103-10061-000 |
from US $8.76 |
||
|
14
|
14
09103-10238-000
Bolt, 10x230
Bolt (10x230); |
09103-10238-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-10238-XC0 BOLT(10X230)Bolt (10x230); |
09103-10238-XC0 |
from US $23.07 |
||
|
15
|
15
11621-35B00-000 SPACER,ENG MTG |
11621-35B00-000 |
from US $17.37 |
||
|
16
|
16
11610-02CA0-000 SPACER,ENG MTG(L:60)Spacer (l:60) Spacer (l:60); |
11610-02CA0-000 |
from US $8.46 |
||
|
17
|
17
11610-49300-000 SPACERSpacer (l:65) Spacer (l:65); |
11610-49300-000 |
from US $11.19 |
||
|
18
|
18
08319-31103-000
Nut
|
08319-31103-000 |
— | ||
| replacement | |||||
|
18
|
18
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
