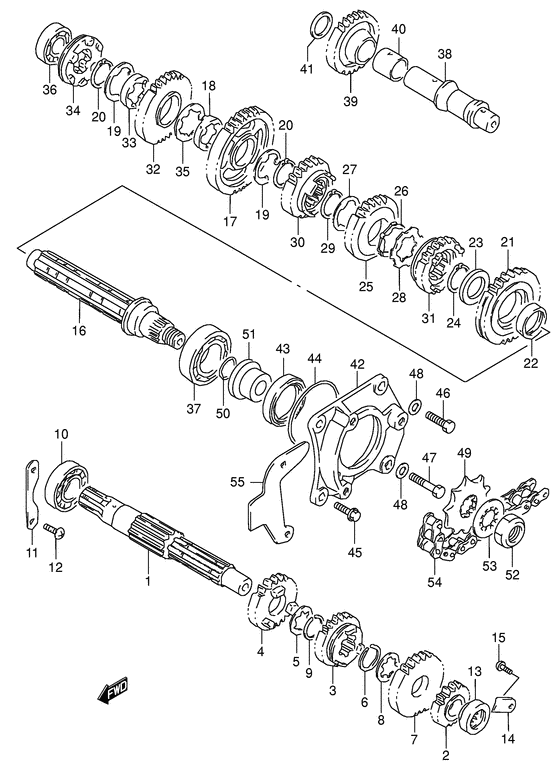

Transmission Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K7
- Engine Capacity
- 158
- Year
- 2007
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*71100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-18A03-000
SHAFT,COUNTER
Countershaft (nt:12); |
24121-18A03-000 |
— | ||
|
2
|
2
24221-02C01-000
GEAR,2ND DRIVE
Gear, 2nd drive (nt:14); |
24221-02C01-000 |
— | ||
|
3
|
3
24231-02C01-000
GEAR,3RD DRIVE
Gear, 3rd drive (nt:17); |
24231-02C01-000 |
— | ||
|
4
|
4
24241-02C01-000
GEAR,4TH DRIVE
Gear, 4th drive (nt:20); |
24241-02C01-000 |
— | ||
|
5
|
5
09181-22139-000 SHIM(22X28X1)Washer (22x28x1.0) Washer (22x28x1.0); |
09181-22139-000 |
from US $1.92 |
||
|
6
|
6
09380-22006-000 CIRCLIPCirclip Circlip; |
09380-22006-000 |
from US $1.82 |
||
|
7
|
7
24251-18B01-000
GEAR,5TH DRIVE
Gear, 5th drive (nt:20); |
24251-18B01-000 |
— | ||
|
8
|
8
09167-22011-000 WASHER,LOCKWasher (22.1x27x0.5) Washer (22.1x27x0.5); |
09167-22011-000 |
from US $5.17 |
||
|
9
|
9
09380-22006-000 CIRCLIPCirclip Circlip; |
09380-22006-000 |
from US $1.82 |
||
|
10
|
10
09262-22018-000 BEARING(22X50X14)Bearing, rh Bearing, rh (22x50x14); |
09262-22018-000 |
from US $11.84 |
||
|
11
|
11
24741-18A00-000
RETAINER,CNTR SHAFT BEARING,R
|
24741-18A00-000 |
— | ||
|
12
|
12
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw (6x12); |
09125-06110-000 |
from US $1.52 |
||
|
13
|
13
09263-17026-000 BEARING(17X30X14)Bearing, lh Bearing, lh (17x30x14); |
09263-17026-000 |
from US $32.20 |
||
|
14
|
14
24742-18A00-000 RETAINER,BEARINGRetainer; |
24742-18A00-000 |
from US $2.13 |
||
|
15
|
15
02112-06103-000
Screw 6x10
Screw; |
02112-06103-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0610B-000 SCREWScrew; |
02112-0610B-000 |
from US $0.76 |
||
|
16
|
16
24131-35B10-000 SHAFT,DRIVEDriveshaft |
24131-35B10-000 |
from US $84.64 |
||
|
17
|
17
24311-02C01-000
GEAR,1ST DRIVEN
Gear, 1st driven (nt:38); |
24311-02C01-000 |
— | ||
|
18
|
18
24332-24510-000 BUSH,DRIVEN GEAR |
24332-24510-000 |
from US $10.18 |
||
|
19
|
19
09167-25016-000 WASHER,LOCKLock washer |
09167-25016-000 |
from US $2.13 |
||
|
20
|
20
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
21
|
21
24321-02C00-000
GEAR,2ND DRIVEN
Gear, 2nd driven (nt:30); |
24321-02C00-000 |
— | ||
|
22
|
22
09300-25020-000 BUSH(25X29X8)Bush |
09300-25020-000 |
from US $19.36 |
||
|
23
|
23
08211-25351-000 WASHERWasher; |
08211-25351-000 |
from US $5.07 |
||
|
24
|
24
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
25
|
25
24331-02C01-000
GEAR,3RD DRIVEN
Gear, 3rd driven (nt:27); |
24331-02C01-000 |
— | ||
|
26
|
26
09169-25001-000 WASHERLock washer |
09169-25001-000 |
from US $3.69 |
||
|
27
|
27
09167-25016-000 WASHER,LOCKLock washer |
09167-25016-000 |
from US $2.13 |
||
|
28
|
28
09167-25013-000 WASHER,LOCKLock washer |
09167-25013-000 |
from US $4.49 |
||
|
29
|
29
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
30
|
30
24341-02C01-000
GEAR,4TH DRIVEN
Gear, 4th driven (nt:24); |
24341-02C01-000 |
— | ||
|
31
|
31
24351-18B01-000
GEAR,5TH DRIVEN
Gear, 5th driven (nt:19); |
24351-18B01-000 |
— | ||
|
32
|
32
24571-18A02-000
GEAR,REVERSE DRIVEN
Gear, reverse driven (nt:34); |
24571-18A02-000 |
— | ||
|
33
|
33
24333-18A00-000 BUSH,REVERSE DRIVEN GEARBush, reverse driven; |
24333-18A00-000 |
from US $9.64 |
||
|
34
|
34
24581-18A00-000 DOG,REVERSE |
24581-18A00-000 |
from US $33.30 |
||
|
35
|
35
09167-25017-000 WASHER,LOCKWasher (25.1x40x1.5); |
09167-25017-000 |
from US $5.27 |
||
|
36
|
36
09262-20059-000 BEARING(20X42X12)Bearing, rh (20x42x12); |
09262-20059-000 |
from US $14.90 |
||
|
37
|
37
09262-30084-000 BEARING(30X62X16)Bearing (30x62x16) Bearing, lh (30x62x16); |
09262-30084-000 |
from US $33.12 |
||
|
38
|
38
24551-35B10-000
SHAFT,REVERSE IDLE
|
24551-35B10-000 |
— | ||
|
39
|
39
24561-18A02-000
GEAR,REVERSE DRIVEN
Gear, reverse idler (nt:29); |
24561-18A02-000 |
— | ||
|
40
|
40
09300-20034-000
BUSH(20X24X26)
Bush, reverse idler gear; |
09300-20034-000 |
— | ||
|
41
|
41
09181-20195-000 SHIM(20X30X1)Thrust washer (20x30x1.0); |
09181-20195-000 |
from US $1.82 |
||
|
42
|
42
24751-35B10-000 RETAINER,DRIVE SHAFT OIL SEAL |
24751-35B10-000 |
US $88.77 |
||
|
43
|
43
09283-38017-000 SEAL,OIL(38X52X8)Oil seal (38x52x8) Oil seal (38x52x8); |
09283-38017-000 |
from US $11.89 |
||
|
44
|
44
09280-70009-000 O RING(D:2.5,ID:71.9)O ring (d:2.5,id:71.9) O ring (d:2.5,id:71.9); |
09280-70009-000 |
from US $7.43 |
||
|
45
|
45
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
45
|
45
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
46
|
46
09100-08259-000 BOLT(8X20)Bolt (8x20); |
09100-08259-000 |
from US $3.04 |
||
|
47
|
47
09100-08260-000 BOLT(8X30)Bolt (8x30); |
09100-08260-000 |
from US $1.38 |
||
|
48
|
48
09160-08043-000 WASHER(8.5X18X1)Washer, heat switch Washer (8.5x18x1); |
09160-08043-000 |
from US $1.06 |
||
|
49
|
49
27511-35B00-000 SPROCKET,ENGINE(NT:11)Sprocket, engine (nt:11) Sprocket, engine (nt:11); |
27511-35B00-000 |
from US $19.20 |
||
|
50
|
50
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) O ring (d:2.5,id:21.0); |
09280-21008-000 |
from US $0.95 |
||
|
51
|
51
27531-35B10-000 SPACER,ENGINE SPROCKETSpacer (l:25.1) Spacer (l:25.1); |
27531-35B10-000 |
from US $27.97 |
||
|
52
|
52
09140-18008-000 NUT |
09140-18008-000 |
from US $6.56 |
||
|
53
|
53
09167-22012-000 WASHER,LOCKLock washer Lock washer; |
09167-22012-000 |
from US $0.76 |
||
|
54
|
54
27600-34A40-084 Chain,driveChain, drive (520smo-z9) rk Chain, drive (rk520smo-z9); |
27600-34A40-084 |
from US $120.34 |
||
|
54
|
54
27600-34A40-088
Chain,drive
Chain, drive (rk520smo-z9); P51 |
27600-34A40-088 |
— | ||
|
55
|
55
27641-35B00-000 PLATE,FR CHAIN GUIDEPlate, front chain guide |
27641-35B00-000 |
from US $4.27 |
||
