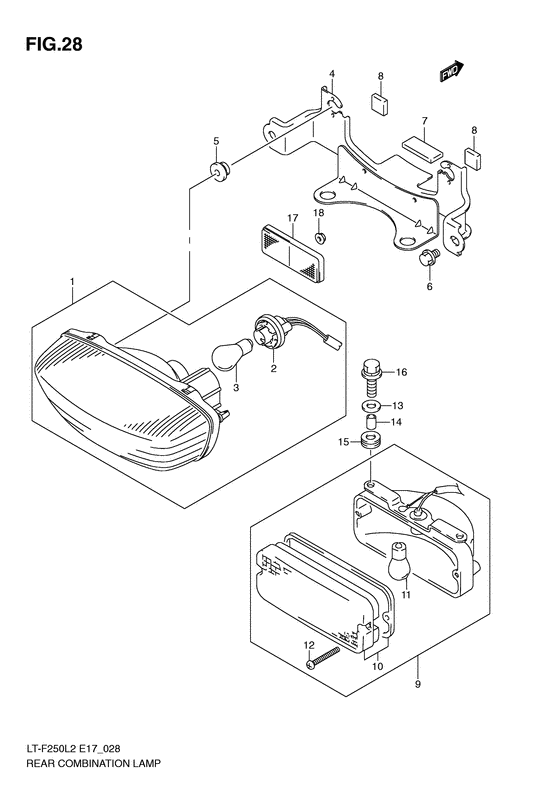

Rear combination (Lt-f250l2 e17) Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L2
- Engine Capacity
- 249
- Year
- 2012
- Sales region
- Sweden (E17)
- Frame
- JSAAJ51A*C2100001~
- Power
- 25 hp
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-03G30-000 LAMP ASSY,RR COMBINATION |
35710-03G30-000 |
from US $54.10 |
||
|
2
|
2
35718-03G30-000 SOCKET & BULBSocket & cord assy; |
35718-03G30-000 |
from US $15.64 |
||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v21/5w); |
09471-12128-000 |
from US $7.20 |
||
| replacement | |||||
|
3
|
3
ZK690-A4875-B00 Bulb (12V 21/5W) A4875B, STANLEYBulb (12v21/5w); |
ZK690-A4875-B00 |
US $2.74 |
||
|
4
|
4
35726-05G10-000 BRACKET,RR COMBINATION LAMP |
35726-05G10-000 |
US $25.58 |
||
|
5
|
5
09320-06024-000 CUSHION |
09320-06024-000 |
from US $5.24 |
||
|
6
|
6
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
7
|
7
33652-05G10-000 CUSHION,RR LAMP(25X55X8)Cushion (25x55x8) Cushion (25x55x8); |
33652-05G10-000 |
from US $1.58 |
||
|
8
|
8
33652-05G20-000 CUSHION,RR LAMP(17X17X12)Cushion (17x17x12) |
33652-05G20-000 |
from US $1.76 |
||
|
9
|
9
36250-09F00-000 LAMP ASSY,BACK UP |
36250-09F00-000 |
US $70.29 |
||
|
10
|
10
36252-09F01-000 LENS SET |
36252-09F01-000 |
US $11.04 |
||
|
11
|
11
09471-12045-000 BULB(12V21W)Bulb (12v,21w); |
09471-12045-000 |
from US $2.54 |
||
|
12
|
12
03211-04207-000 SCREW |
03211-04207-000 |
from US $0.80 |
||
|
13
|
13
09160-06079-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2); |
09160-06079-000 |
from US $0.77 |
||
| replacement | |||||
|
13
|
13
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer (6.5x16x1.2); |
09160-06052-000 |
from US $1.28 |
||
|
14
|
14
09180-06248-000 SPACER(6.1X8X9.5)Spacer (6.1x8x9.5); |
09180-06248-000 |
from US $1.68 |
||
|
15
|
15
09320-08501-000 CUSHION |
09320-08501-000 |
from US $5.17 |
||
|
16
|
16
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
35970-38E00-000 REFLECTOR ASSY,RRReflector assy, rear Reflector assy, rear; |
35970-38E00-000 |
from US $10.64 |
||
|
18
|
18
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
