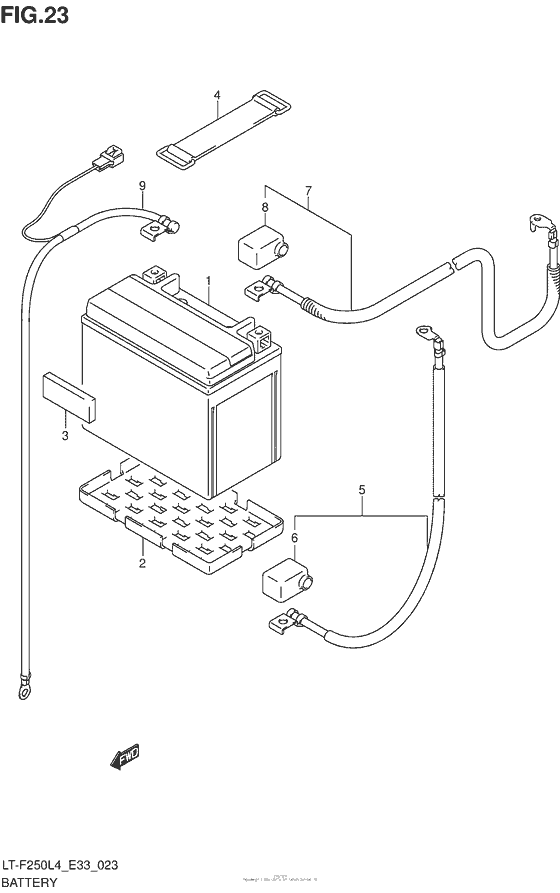

Battery Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-48E20-000
Battery (ftx12-bs,12v,10ah)
|
33610-48E20-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-48E21-000
BATTERY(FTX12-BS,12V10.5AH)
|
33610-48E21-000 |
— | ||
|
1
|
1
33610-48E22-000 Battery(Ftx12-Bs,12V10.5Ah) |
33610-48E22-000 |
US $603.52 |
||
|
2
|
2
33652-16G00-000 PROTECTOR,BATTERY |
33652-16G00-000 |
from US $4.26 |
||
|
3
|
3
33652-35400-000 PROTECTOR(20X50X8)Protector (20x50x8) |
33652-35400-000 |
US $1.76 |
||
|
4
|
4
09462-00008-000 BANDBand, battery |
09462-00008-000 |
from US $4.80 |
||
|
5
|
5
33810-05G00-000 WIRE,STARTER MOTOR |
33810-05G00-000 |
from US $21.71 |
||
|
6
|
6
31146-05G00-000 CAP,STARTER MOTOR |
31146-05G00-000 |
US $11.63 |
||
|
7
|
7
33820-05G00-000
WIRE,BATTERY PLUS
|
33820-05G00-000 |
— | ||
| replacement | |||||
|
7
|
7
33820-05G01-000 WIRE,BATTERY PLUS |
33820-05G01-000 |
US $19.32 |
||
|
8
|
8
33624-16E00-000 CAP,BATTERY PLUS |
33624-16E00-000 |
from US $2.56 |
||
|
9
|
9
33860-21G00-000 WIRE,BATTERY MINUS |
33860-21G00-000 |
from US $14.39 |
||
