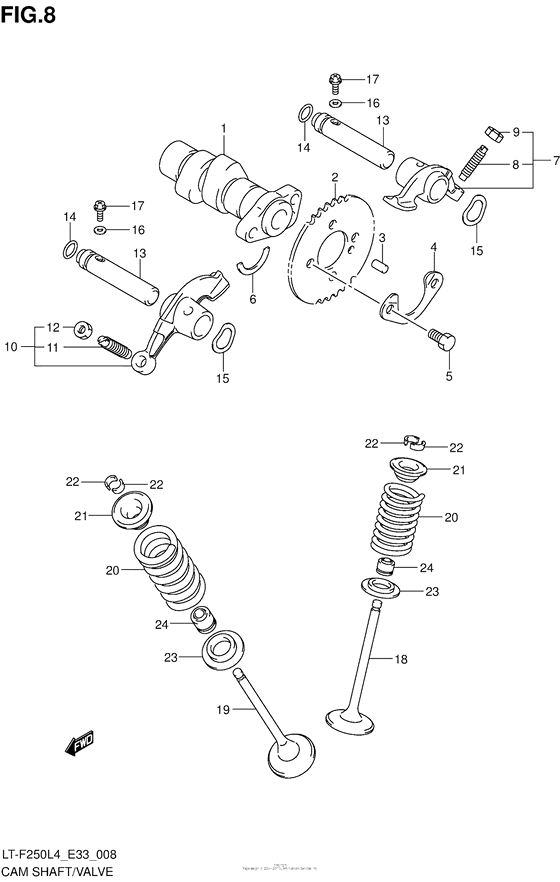

Cam Shaft/valve Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-18A00-000 CAM,SHAFT |
12711-18A00-000 |
from US $138.38 |
||
|
2
|
2
12741-21G00-000 SPROCKET,CAMSHAFTSprocket (nt:34) |
12741-21G00-000 |
from US $25.58 |
||
|
3
|
3
09261-05005-000 PIN(5X8)Knock pin |
09261-05005-000 |
from US $0.76 |
||
|
4
|
4
12747-05202-000 WASHER,SPROCKET |
12747-05202-000 |
from US $1.87 |
||
|
5
|
5
09100-06166-000 BOLT(6X10.5) |
09100-06166-000 |
from US $4.13 |
||
|
6
|
6
09390-22002-000 C RINGC ring |
09390-22002-000 |
from US $1.06 |
||
|
7
|
7
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in |
12850-25C00-000 |
from US $28.88 |
||
|
8
|
8
12842-32411-000 SCREW,TAPPET ADJUSTING |
12842-32411-000 |
from US $4.80 |
||
|
9
|
9
12843-32400-000 NUT,ADJUSTING SCREW |
12843-32400-000 |
from US $1.60 |
||
|
10
|
10
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in |
12850-25C00-000 |
from US $28.88 |
||
|
11
|
11
12842-32411-000 SCREW,TAPPET ADJUSTING |
12842-32411-000 |
from US $4.80 |
||
|
12
|
12
12843-32400-000 NUT,ADJUSTING SCREW |
12843-32400-000 |
from US $1.60 |
||
|
13
|
13
12861-05201-000 SHAFT,VALVE ROCKETShaft, rocker arm |
12861-05201-000 |
from US $7.14 |
||
|
14
|
14
09280-09005-000 O RING(D:1.9,ID:8.6) |
09280-09005-000 |
from US $1.67 |
||
|
15
|
15
09164-12021-000 WASHER |
09164-12021-000 |
from US $1.52 |
||
|
16
|
16
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
17
|
17
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
18
|
18
12911-05G00-000 Valve,intake |
12911-05G00-000 |
from US $48.35 |
||
|
19
|
19
12912-18A00-000 Valve,exhaust |
12912-18A00-000 |
from US $54.68 |
||
|
20
|
20
12921-21G00-000 SPRING,VALVE |
12921-21G00-000 |
from US $7.95 |
||
|
21
|
21
12931-19B01-000 RETAINER,VALVE SPRING |
12931-19B01-000 |
from US $6.40 |
||
|
22
|
22
12932-24400-000 COTTER,VALVE |
12932-24400-000 |
from US $1.17 |
||
|
23
|
23
12933-19B00-000 SEAT,VALVE SPRINGSeat, spring |
12933-19B00-000 |
from US $4.32 |
||
|
24
|
24
09289-05015-000 SEAL,OIL(5.5X11X8.2) |
09289-05015-000 |
from US $3.24 |
