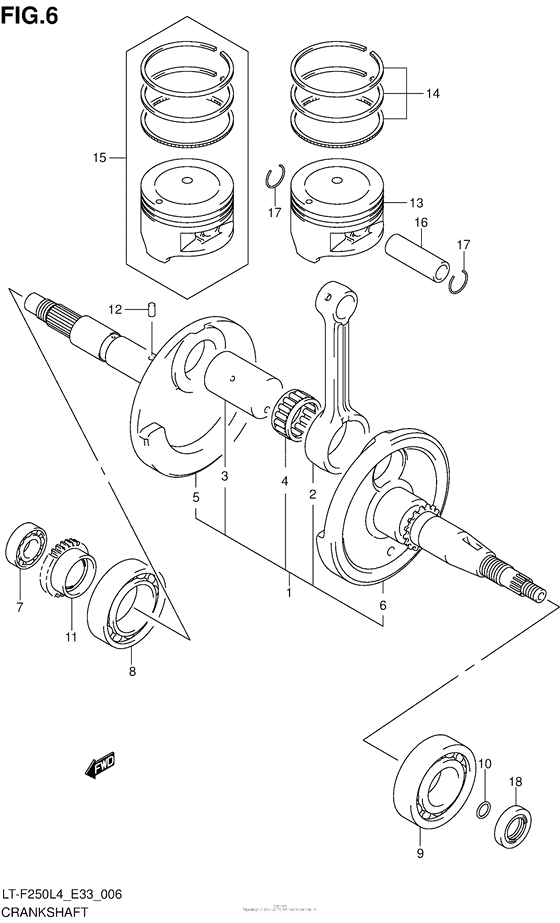

Crankshaft Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-05G11-000 CRANKSHAFT ASSY |
12200-05G11-000 |
from US $644.16 |
||
|
2
|
2
12161-19B03-000 CONNECTING ROD |
12161-19B03-000 |
from US $73.60 |
||
|
3
|
3
12210-22A03-000 PIN,CRANK |
12210-22A03-000 |
from US $43.20 |
||
|
4
|
4
09263-30033-0B0 BEARING(30X39X18)Bearing (30x39x18) |
09263-30033-0B0 |
from US $48.80 |
||
|
5
|
5
12220-05G01-000 CRANKSHAFT,R |
12220-05G01-000 |
from US $241.04 |
||
|
6
|
6
12261-05G10-000 CRANKSHAFT,L |
12261-05G10-000 |
US $241.04 |
||
|
7
|
7
09262-15038-000 BEARING(15X35X11) |
09262-15038-000 |
US $37.76 |
||
|
8
|
8
09262-28014-000 BEARING(28X68X18)Bearing, mdl (28x68x18) |
09262-28014-000 |
from US $36 |
||
|
9
|
9
09262-35073-000 BEARING(35X72X17) |
09262-35073-000 |
from US $27.23 |
||
|
10
|
10
09280-12009-000 O RING(D:1.9,ID:12.6) |
09280-12009-000 |
from US $1.76 |
||
|
11
|
11
16321-19B00-000 GEAR,OIL PUMP DRIVEGear, oil pump drive (nt:30) |
16321-19B00-000 |
from US $30.36 |
||
|
12
|
12
04221-04089-000 PINPin, bal sprocket driven |
04221-04089-000 |
from US $0.76 |
||
|
13
|
13
12111-05G01-0F0 PISTON |
12111-05G01-0F0 |
from US $87.31 |
||
|
14
|
14
12140-05G00-000 RING SET,PISTON |
12140-05G00-000 |
from US $56.15 |
||
|
15
|
15
12100-05G01-050 PISTON SET(OS:0.5) |
12100-05G01-050 |
from US $104 |
||
|
16
|
16
12151-22A02-000 PIN,PISTONPin, piston |
12151-22A02-000 |
from US $8.57 |
||
|
17
|
17
09381-16004-000 CIRCLIP |
09381-16004-000 |
from US $1.48 |
||
|
18
|
18
09289-22010-000 SEAL,OIL(22X35X7)Oil seal (22x35x7) |
09289-22010-000 |
from US $14.46 |
