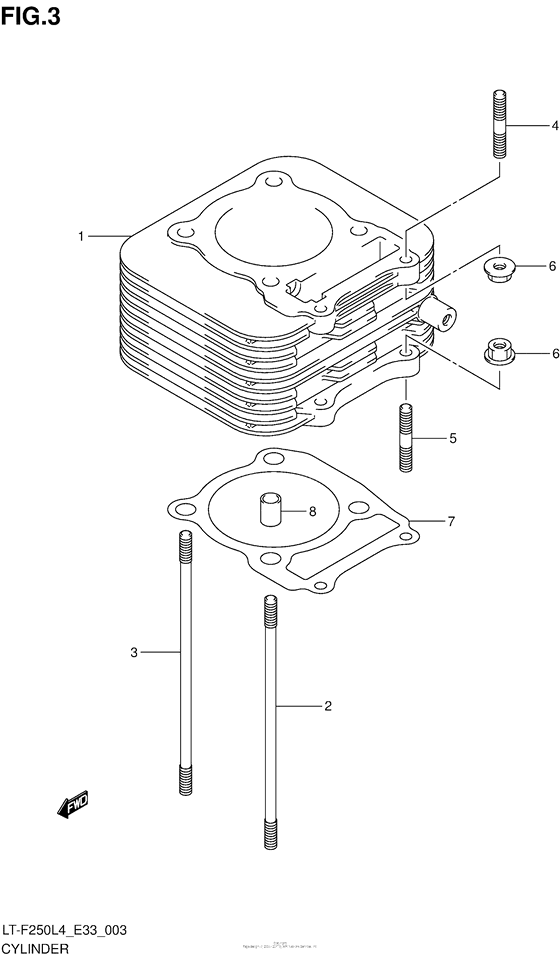

Cylinder Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-05G00-0F0 CYLINDER |
11210-05G00-0F0 |
from US $309.12 |
||
|
2
|
2
09108-08195-000 BOLT,STUDStud bolt (l:160) |
09108-08195-000 |
from US $3.09 |
||
|
3
|
3
09108-08184-000 BOLT,STUD(8X167)Stud bolt (l:167) |
09108-08184-000 |
from US $3.31 |
||
|
4
|
4
01421-0625A-000 BOLT,STUD |
01421-0625A-000 |
from US $0.98 |
||
|
5
|
5
01421-0625A-000 BOLT,STUD |
01421-0625A-000 |
from US $0.98 |
||
|
6
|
6
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
11241-18A20-000 GASKET,CYLINDERGasket, cylinder |
11241-18A20-000 |
from US $4.56 |
||
|
8
|
8
04211-11149-000 PIN |
04211-11149-000 |
from US $1.12 |
