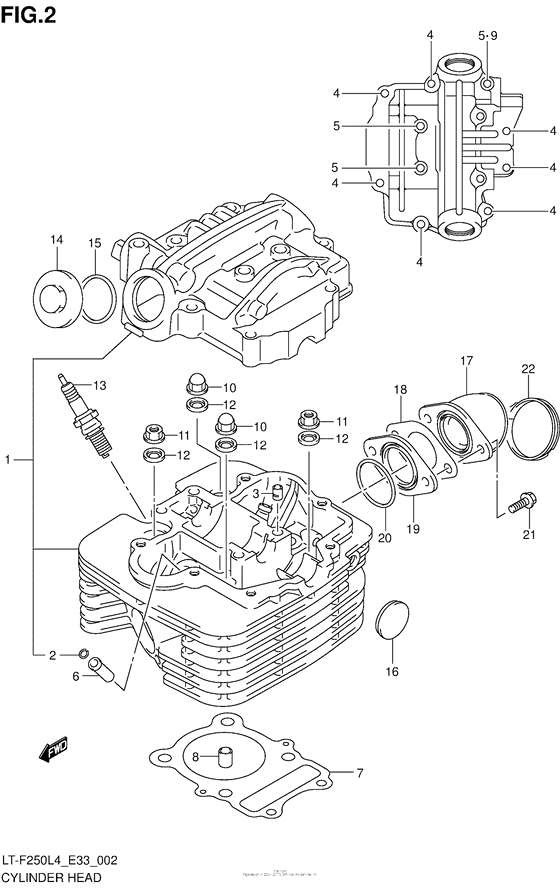

Cylinder head Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-05G00-000 HEAD ASSY,CYLINDER |
11100-05G00-000 |
US $885.14 |
||
|
2
|
2
09381-10004-000 RING,SNAPRing, valve guide |
09381-10004-000 |
from US $1.06 |
||
|
3
|
3
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.26 |
||
|
4
|
4
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
5
|
5
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
6
|
6
11115-05270-000 GUIDE,VALVEGuide, valve |
11115-05270-000 |
from US $15.96 |
||
|
7
|
7
11141-19B00-000 GASKET,CYLINDER HEADGasket, cylinder head |
11141-19B00-000 |
from US $13.77 |
||
|
8
|
8
04211-11169-000 PINPin, dowel |
04211-11169-000 |
from US $1.06 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
09159-08049-000 NUT |
09159-08049-000 |
from US $1.12 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
09168-08021-000 GASKET(8.5X17X2.3) CopperGasket (8.5x17x2.3) |
09168-08021-000 |
from US $1.22 |
||
|
13
|
13
09482-00222-000 PLUG,SPARK(X22ESR-U)Spark plug (denso,x22esr-u) |
09482-00222-000 |
from US $5.63 |
||
|
13
|
13
09482-00223-000 PLUG,SPARK(X24ESR-U)Spark plug (denso,x24ers-u) |
09482-00223-000 |
from US $7.92 |
||
|
13
|
13
09482-00224-000 PLUG,SPARK(X27ESR-U)Spark plug (denso,x27esr-u) |
09482-00224-000 |
from US $5.63 |
||
|
13
|
13
09482-00398-000 PLUG,SPARK(DR7EA)Spark plug (ngk,dr7ea) |
09482-00398-000 |
from US $4.86 |
||
|
13
|
13
09482-00399-000 PLUG,SPARK(DR8EA)Spark plug (ngk,dr8ea) |
09482-00399-000 |
from US $5.30 |
||
|
13
|
13
09482-00400-000 PLUG,SPARK(DR9EA) |
09482-00400-000 |
from US $5.63 |
||
|
14
|
14
11175-18920-000 CAP,INSPECTION HOLE |
11175-18920-000 |
from US $16.46 |
||
|
15
|
15
09280-30001-000 O RING(D:3,ID:29.5) |
09280-30001-000 |
from US $1.51 |
||
|
16
|
16
09241-22002-000 PLUG(OD:22.5)Plug, head |
09241-22002-000 |
from US $2.58 |
||
|
17
|
17
13110-05G00-000
PIPE,INTAKE
|
13110-05G00-000 |
— | ||
| replacement | |||||
|
17
|
17
13110-05G01-000 Pipe,intake |
13110-05G01-000 |
from US $29.07 |
||
|
18
|
18
13118-05G00-000 GASKET,INTAKE PIPE |
13118-05G00-000 |
from US $2.99 |
||
|
19
|
19
13117-05G00-000 INSULATOR,INTAKE PIPE |
13117-05G00-000 |
US $12.56 |
||
|
20
|
20
09280-35005-000 O RING(D:2.1,ID:34.7)O ring (d:2.1,id:34.7) |
09280-35005-000 |
from US $8.97 |
||
|
21
|
21
07120-0620A-000 BOLT |
07120-0620A-000 |
from US $4.13 |
||
|
22
|
22
09402-46208-000 CLAMP |
09402-46208-000 |
from US $1.96 |
||
