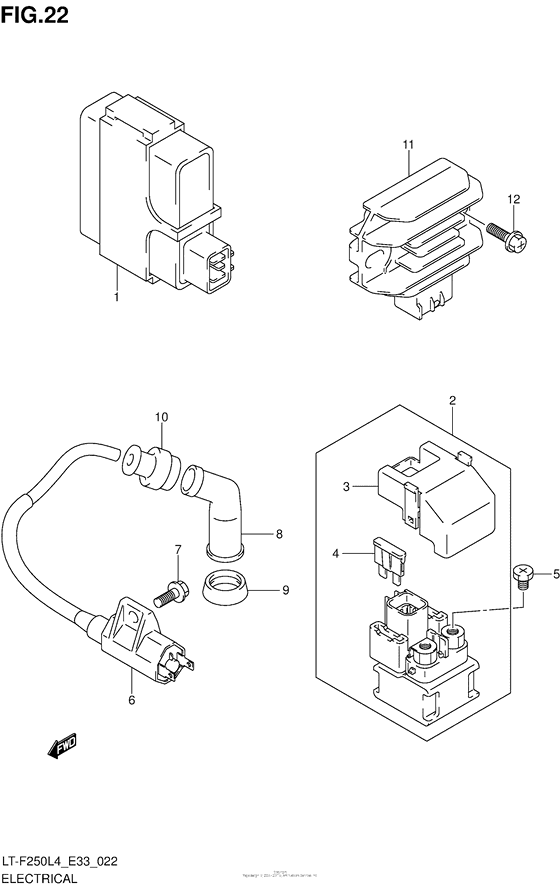

Electrical Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-05G30-000 CDI UNIT |
32900-05G30-000 |
from US $412.16 |
||
|
2
|
2
31800-47E00-000 RELAY ASSY,STARTING MOTORRelay, starting motor |
31800-47E00-000 |
US $100.56 |
||
| replacement | |||||
|
2
|
2
31800-47E01-000 Relay Assy,Starting Motor |
31800-47E01-000 |
from US $88.54 |
||
|
3
|
3
31861-47E00-000 COVER |
31861-47E00-000 |
from US $7.91 |
||
|
4
|
4
09481-20102-000 FUSE(20A) |
09481-20102-000 |
from US $4.06 |
||
|
5
|
5
09128-06013-000 SCREW(6X8)Screw |
09128-06013-000 |
from US $1.94 |
||
|
6
|
6
33410-05G00-000 COIL ASSY,IGNITION |
33410-05G00-000 |
from US $64.40 |
||
|
7
|
7
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
33510-43010-000 Cap,spark plugCap, spark plug |
33510-43010-000 |
from US $19.73 |
||
|
9
|
9
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug |
33541-47D00-000 |
from US $4.26 |
||
|
10
|
10
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
11
|
11
32800-05F20-000 Rectifier Assy |
32800-05F20-000 |
from US $126.59 |
||
|
12
|
12
02162-0625B-000 SCREW |
02162-0625B-000 |
from US $3.32 |
||
