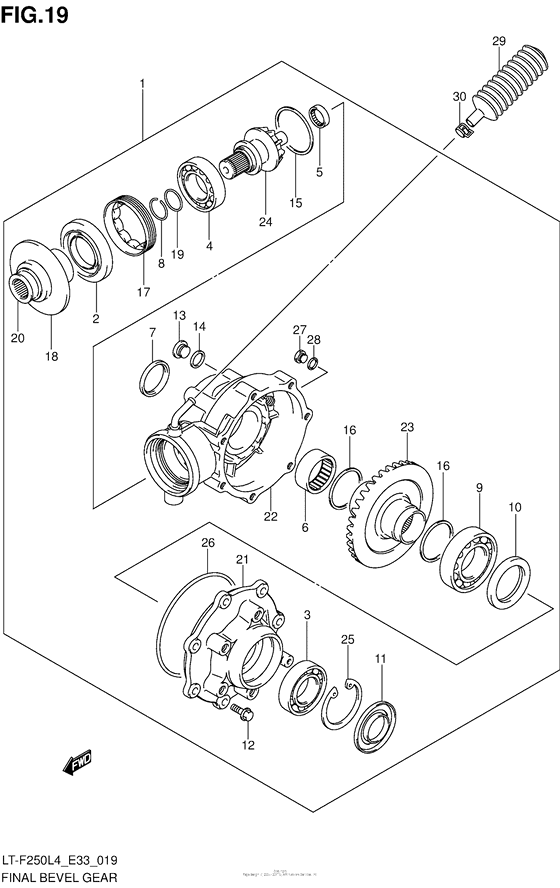

Final Bevel Gear Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27400-05G10-000 CASE ASSY,RR FINAL GEAR |
27400-05G10-000 |
from US $968 |
||
|
2
|
2
27406-05GA0-000 SEAL,OIL(35X69X8) |
27406-05GA0-000 |
from US $30.87 |
||
|
3
|
3
27405-05GF0-000 BEARING(30X62X16) |
27405-05GF0-000 |
US $83.28 |
||
|
4
|
4
27405-05GF0-000 BEARING(30X62X16) |
27405-05GF0-000 |
US $83.28 |
||
|
5
|
5
27405-05GB0-000 BEARING(15X23X16) |
27405-05GB0-000 |
from US $26.68 |
||
|
6
|
6
27405-05GC0-000 BEARING(45X52X20) |
27405-05GC0-000 |
from US $38.27 |
||
|
7
|
7
27406-05GB0-000 SEAL,OIL(45X55X7) |
27406-05GB0-000 |
from US $20.09 |
||
|
8
|
8
27403-05GA1-000 C RING(24X1.0) |
27403-05GA1-000 |
from US $3.09 |
||
|
9
|
9
27405-05GD0-000 BEARING(45X75X16) |
27405-05GD0-000 |
from US $49.31 |
||
|
10
|
10
27406-05GC0-000 SEAL,OIL(42X62X7) |
27406-05GC0-000 |
from US $26.06 |
||
|
11
|
11
27406-05GG0-000 SEAL,OIL(30X62X7) |
27406-05GG0-000 |
from US $21.96 |
||
|
12
|
12
27401-05GC0-000 BOLT,FLANGE |
27401-05GC0-000 |
from US $3.09 |
||
|
13
|
13
27409-05GA0-000 PLUG |
27409-05GA0-000 |
from US $8.17 |
||
|
14
|
14
27407-05GA0-000 GASKET |
27407-05GA0-000 |
from US $4.16 |
||
|
15
|
15
27407-05810-000 SHIM SET,FINAL DRIVE |
27407-05810-000 |
from US $44.16 |
||
|
16
|
16
27407-05820-000 SHIM SET,FINAL DRIVEN |
27407-05820-000 |
from US $126.96 |
||
|
17
|
17
27312-05GA0-000 STOPPER,BEARING |
27312-05GA0-000 |
US $90.36 |
||
|
18
|
18
27592-05GA0-000 PLATE,OUTPUT OIL SEAL |
27592-05GA0-000 |
from US $39.88 |
||
|
19
|
19
27406-05GE0-000 O RING(D:2.0,ID:25.5) |
27406-05GE0-000 |
from US $3.09 |
||
|
20
|
20
27591-05GA1-000 SHAFT,JOINT |
27591-05GA1-000 |
from US $75.15 |
||
|
21
|
21
27461-05GA1-000 CASE,FINAL GEAR,L |
27461-05GA1-000 |
from US $126.96 |
||
|
22
|
22
27450-05GA1-000 CASE,FINAL GEAR,R |
27450-05GA1-000 |
US $641.51 |
||
|
23
|
23
27321-05GA0-000 GEAR,FINAL DRIVEN BEVEL |
27321-05GA0-000 |
US $366.15 |
||
|
24
|
24
27311-05GA0-000 GEAR,FINAL DRIVEN BEVEL |
27311-05GA0-000 |
from US $179.28 |
||
|
25
|
25
27403-05GB0-000 CIRCLIP |
27403-05GB0-000 |
from US $5.96 |
||
|
26
|
26
27406-05GF0-000 O RING(D:3.5,ID:130) |
27406-05GF0-000 |
US $19.26 |
||
|
27
|
27
27401-05GB0-000 BOLT,OIL CHECK |
27401-05GB0-000 |
from US $1.58 |
||
|
28
|
28
27407-05GD0-000 GASKET,OIL CHECK |
27407-05GD0-000 |
from US $3.94 |
||
|
29
|
29
27491-38F00-000 CASE,BREATHERBoots |
27491-38F00-000 |
US $25.71 |
||
| replacement | |||||
|
29
|
29
27491-38F10-000 Case,Breather |
27491-38F10-000 |
US $24.97 |
||
|
30
|
30
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
