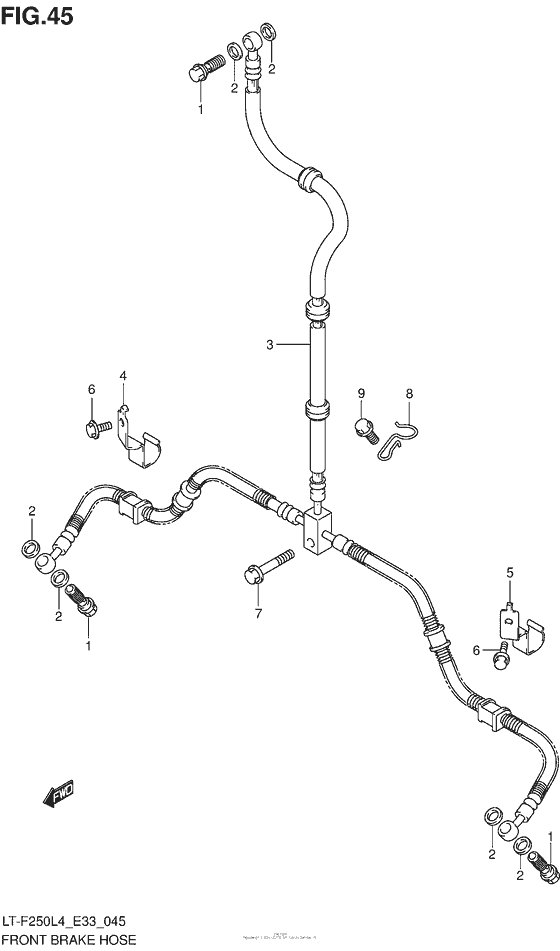

Front Brake Hose Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10062-000 UNIONBolt, upper |
09360-10062-000 |
from US $4.64 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59480-05G02-000
HOSE,FR BRAKE
|
59480-05G02-000 |
— | ||
| replacement | |||||
|
3
|
3
59480-05G03-000 Hose |
59480-05G03-000 |
from US $183.04 |
||
|
4
|
4
59261-05G00-000 CLAMP,FR BRAKE HOSE,R |
59261-05G00-000 |
from US $5.41 |
||
|
5
|
5
59271-05G00-000 CLAMP,FR BRAKE HOSE,L |
59271-05G00-000 |
US $5.41 |
||
|
6
|
6
01547-0610A-000 Bolt |
01547-0610A-000 |
from US $3.35 |
||
|
7
|
7
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
|
8
|
8
59243-05G00-000 GUIDE,FR BRAKE HOSE |
59243-05G00-000 |
US $6.40 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
