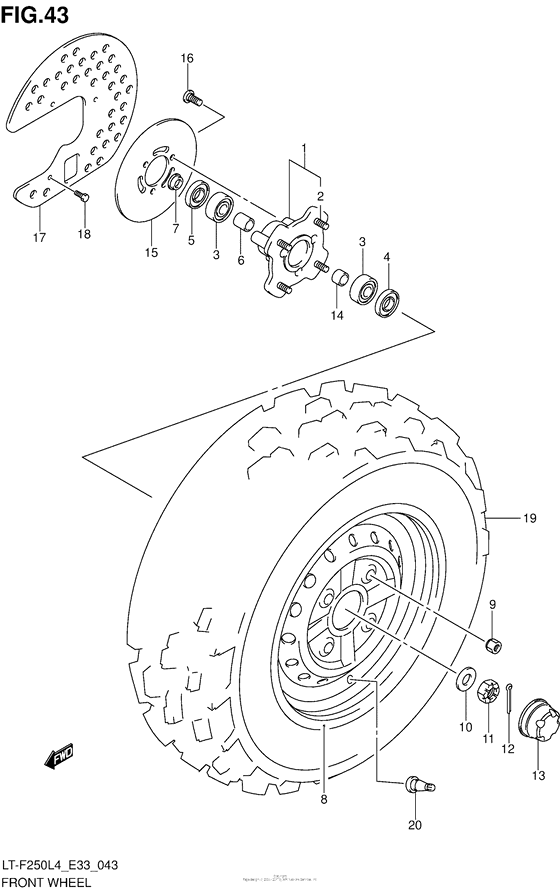

Front Wheel Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-05G10-000 HUB,FR WHEEL |
54110-05G10-000 |
US $304.79 |
||
|
2
|
2
09119-10049-XC0 BOLT |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
08120-62037-000 BearingBearing |
08120-62037-000 |
from US $11.04 |
||
|
4
|
4
09284-22002-000 SEAL,OIL(22.2X40X8) |
09284-22002-000 |
from US $11.26 |
||
|
5
|
5
09284-26002-000 SEAL,OIL(26X42X8)Dust seal, inner |
09284-26002-000 |
from US $6.99 |
||
|
6
|
6
54731-05G00-000 SPACER,FR HUB BEARING |
54731-05G00-000 |
from US $6.40 |
||
|
7
|
7
54741-05G00-000 SPACER,FR AXLE |
54741-05G00-000 |
from US $10.86 |
||
|
8
|
8
55310-05G00-YL8 RIM,FR WHEEL(11X5.5AT)Rim, front wheel (11x5.5at) (silver) |
55310-05G00-YL8 |
from US $222.40 |
||
|
9
|
9
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
10
|
10
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
11
|
11
08314-4016A-000 NUT |
08314-4016A-000 |
from US $1.44 |
||
|
12
|
12
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
13
|
13
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
14
|
14
54741-189A0-000 SPACER,FR AXLESpacer, front axle |
54741-189A0-000 |
from US $7.74 |
||
|
15
|
15
59211-05G00-000 DISC,FR BRAKE |
59211-05G00-000 |
from US $102.30 |
||
|
16
|
16
09106-08155-000 BOLT(8X20)Bolt, brake disc |
09106-08155-000 |
from US $1.33 |
||
|
17
|
17
59231-05G10-000 COVER,FR DISC |
59231-05G10-000 |
from US $30.73 |
||
|
18
|
18
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
19
|
19
55110-05G20-000 TIRE,FR |
55110-05G20-000 |
from US $183.63 |
||
|
20
|
20
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
