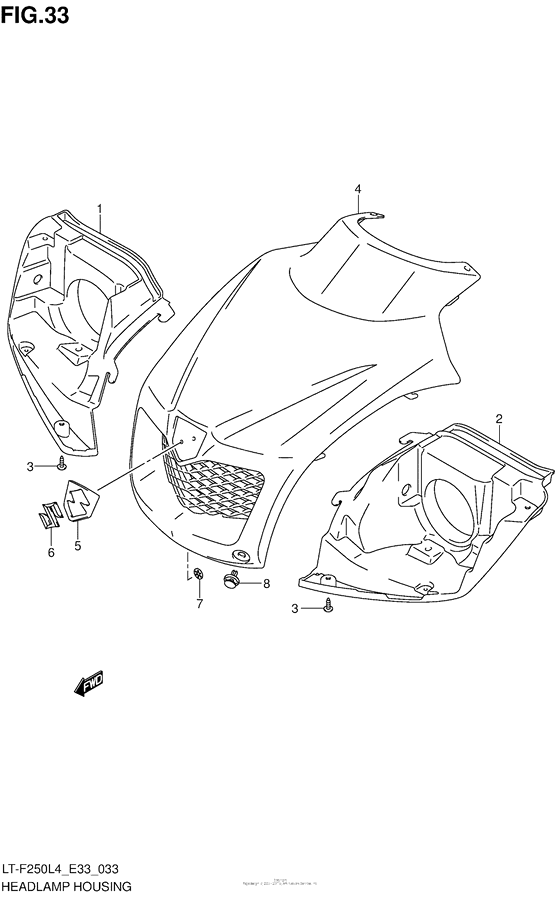

Headlamp Housing Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-05G10-000 HOUSING,HEADLAMP,R |
51811-05G10-000 |
from US $31.83 |
||
|
2
|
2
51821-05G10-000 HOUSING,HEADLAMP,L |
51821-05G10-000 |
US $31.83 |
||
|
3
|
3
03241-1516B-000 SCREW |
03241-1516B-000 |
from US $0.70 |
||
|
4
|
4
53118-05G00-291 COVER,CTR |
53118-05G00-291 |
from US $69.55 |
||
|
5
|
5
68151-03G30-000 BASE,EMBLEM |
68151-03G30-000 |
from US $11.22 |
||
|
6
|
6
68151-03G40-000 EMBLEM,S |
68151-03G40-000 |
from US $10.08 |
||
|
7
|
7
09148-05033-000 NUT |
09148-05033-000 |
from US $1.58 |
||
|
8
|
8
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
