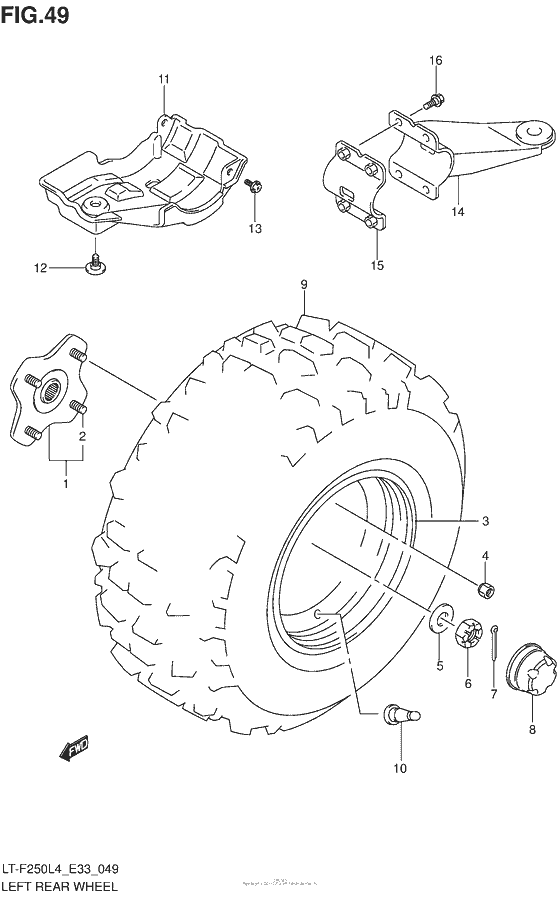

Left Rear Wheel Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-05G00-000 HUB,RR WHEEL,L |
64110-05G00-000 |
from US $136.16 |
||
|
2
|
2
09119-10049-XC0 BOLT |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
65310-05G00-YL8 RIM,RR WHEEL(9X8.0AT)Rim, rear wheel (9x7.0at) (silver) |
65310-05G00-YL8 |
from US $181.79 |
||
|
4
|
4
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
5
|
5
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
6
|
6
09141-18010-000 NUT |
09141-18010-000 |
from US $13.63 |
||
|
7
|
7
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
8
|
8
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
9
|
9
65110-05G20-000 TIRE,RR |
65110-05G20-000 |
from US $213.44 |
||
|
10
|
10
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
11
|
11
61391-05G01-000 PROTECTOR,FINAL CASE |
61391-05G01-000 |
from US $25.21 |
||
|
12
|
12
61393-09F10-000 BOLT |
61393-09F10-000 |
from US $4.23 |
||
|
13
|
13
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.96 |
||
|
14
|
14
95210-05G00-000 PLATE,TRAILER TOW |
95210-05G00-000 |
from US $53.36 |
||
|
15
|
15
95220-05G00-000 PLATE,TRAILER TOW JOINT |
95220-05G00-000 |
from US $16.71 |
||
|
16
|
16
09111-08087-000 BOLT(8X16.5) |
09111-08087-000 |
from US $0.84 |
