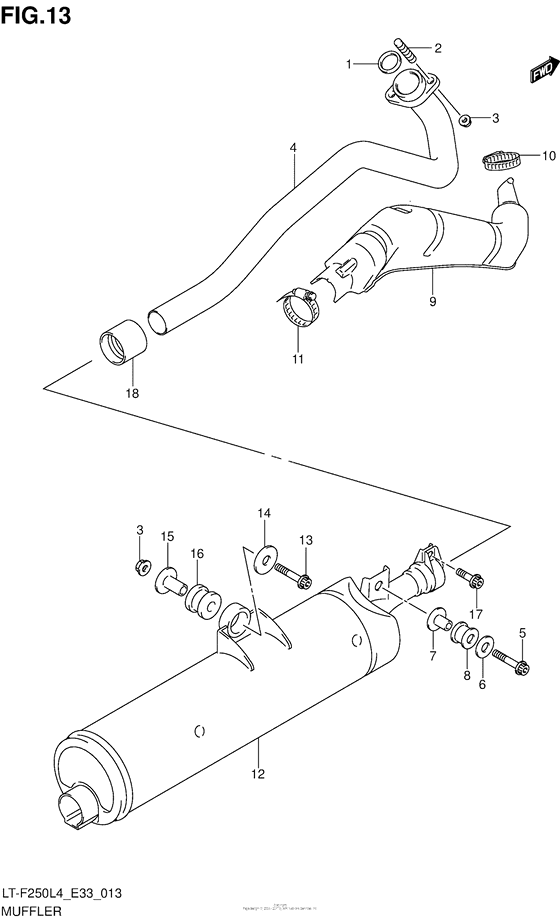

Muffler Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-42A00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe |
14181-42A00-000 |
from US $5.47 |
||
|
2
|
2
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
3
|
3
08319-3108B-000 NUT |
08319-3108B-000 |
from US $4.32 |
||
|
4
|
4
14150-05G00-000 PIPE,EXHAUST |
14150-05G00-000 |
from US $61.46 |
||
|
5
|
5
09106-08133-000 BOLT(8X35)Bolt, exhaust support |
09106-08133-000 |
from US $1.98 |
||
|
6
|
6
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support |
09160-08503-000 |
from US $1.60 |
||
|
7
|
7
09180-08151-000 SPACER(8.6X12X17.5)Spacer, exhaust support |
09180-08151-000 |
from US $2.89 |
||
|
8
|
8
09320-12043-000 CUSHIONCushion, exhaust support |
09320-12043-000 |
from US $7.45 |
||
|
9
|
9
14180-05G01-000 COVER,EXHAUST PIPE |
14180-05G01-000 |
from US $22.26 |
||
|
10
|
10
14184-05G00-000 BAND,EXHAUST PIPE |
14184-05G00-000 |
from US $6.62 |
||
|
11
|
11
14185-05G00-000 BAND,EXHAUST PIPE |
14185-05G00-000 |
from US $8.98 |
||
|
12
|
12
14310-05G00-000 BODY,MUFFLER |
14310-05G00-000 |
US $348.48 |
||
|
13
|
13
07120-0845B-000 BOLT |
07120-0845B-000 |
from US $6.26 |
||
|
14
|
14
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support |
09160-08503-000 |
from US $1.60 |
||
|
15
|
15
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support |
09180-08152-000 |
from US $2.74 |
||
|
16
|
16
09320-12048-000 CUSHION |
09320-12048-000 |
from US $4.64 |
||
|
17
|
17
07120-0825B-000 BOLT |
07120-0825B-000 |
from US $1.28 |
||
|
18
|
18
14771-19B00-000 CONNECTOR,MUFFLERConnector, muffler |
14771-19B00-000 |
from US $11.19 |
