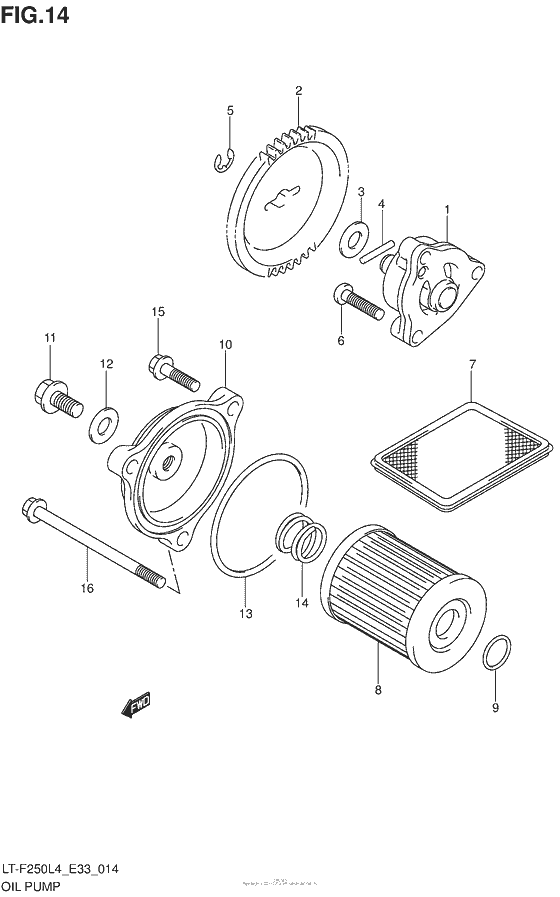

Oil pump Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-01412-000 PUMP ASSY,OILPump, engine oil |
16400-01412-000 |
from US $87.95 |
||
|
2
|
2
16331-05G00-000 GEAR,OIL PUMP DRIVEN |
16331-05G00-000 |
from US $19.14 |
||
|
3
|
3
09181-08186-000 SHIM(8X18X0.5)Washer, pump driven gear |
09181-08186-000 |
from US $3.03 |
||
|
4
|
4
09261-02001-000 PIN(2.5X19.8) |
09261-02001-000 |
from US $0.77 |
||
|
5
|
5
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
6
|
6
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
7
|
7
16520-30A00-000
STRAINER,ENGINE OIL
|
16520-30A00-000 |
— | ||
| replacement | |||||
|
7
|
7
16520-30A01-000 Strainer,engine Oil |
16520-30A01-000 |
US $10.46 |
||
|
8
|
8
16510-25C00-000 FILTER ASSY,ENGINE OILFilter, engine oil |
16510-25C00-000 |
from US $10.52 |
||
|
9
|
9
09280-13004-000 O-RING (D:1.9,ID:13) |
09280-13004-000 |
from US $1.31 |
||
|
10
|
10
16512-05G00-000 CAP,OIL FILTER |
16512-05G00-000 |
from US $16.41 |
||
|
11
|
11
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
09168-08029-000 GASKET(8.2X16X1)Washer (8.2x16x1) |
09168-08029-000 |
from US $1.76 |
||
|
13
|
13
09280-54001-000 O RING(D:2.4,ID:52.6) |
09280-54001-000 |
from US $2.13 |
||
|
14
|
14
09440-18002-000 SPRING |
09440-18002-000 |
from US $1.06 |
||
|
15
|
15
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
16
|
16
01547-0680A-000 BOLTBolt (6x80) |
01547-0680A-000 |
from US $4.49 |
||
