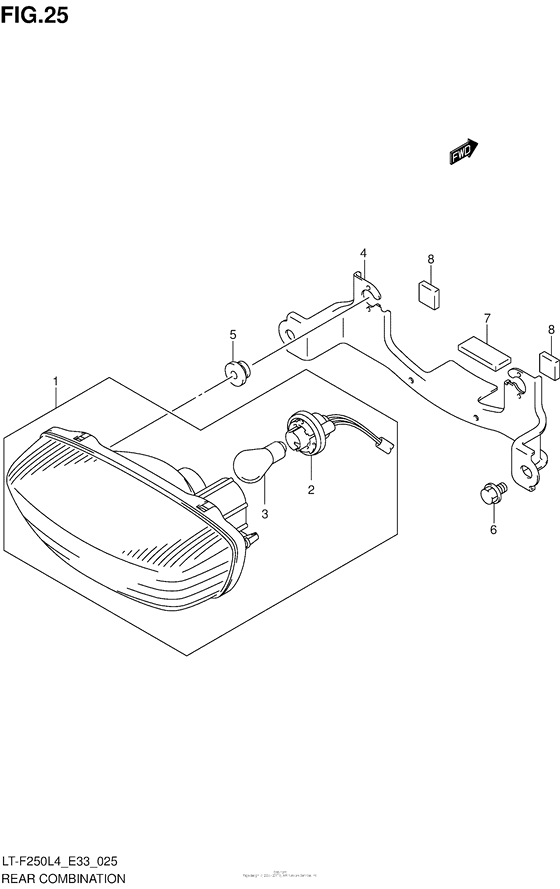

Rear Combination Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-03G30-000 LAMP ASSY,RR COMBINATION |
35710-03G30-000 |
from US $54.10 |
||
|
2
|
2
35718-03G30-000 SOCKET & BULB |
35718-03G30-000 |
from US $15.64 |
||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
| replacement | |||||
|
3
|
3
ZK690-A4875-B00 Bulb (12V 21/5W) A4875B, STANLEY |
ZK690-A4875-B00 |
US $2.74 |
||
|
4
|
4
35726-05G00-000 BRACKET,RR COMBINATION LAMP |
35726-05G00-000 |
from US $17.22 |
||
|
5
|
5
09320-06024-000 CUSHION |
09320-06024-000 |
from US $5.24 |
||
|
6
|
6
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
7
|
7
33652-05G10-000 CUSHION,RR LAMP(25X55X8)Cushion (25x55x8) |
33652-05G10-000 |
from US $1.58 |
||
|
8
|
8
33652-05G20-000 CUSHION,RR LAMP(17X17X12)Cushion (17x17x12) |
33652-05G20-000 |
from US $1.76 |
||
