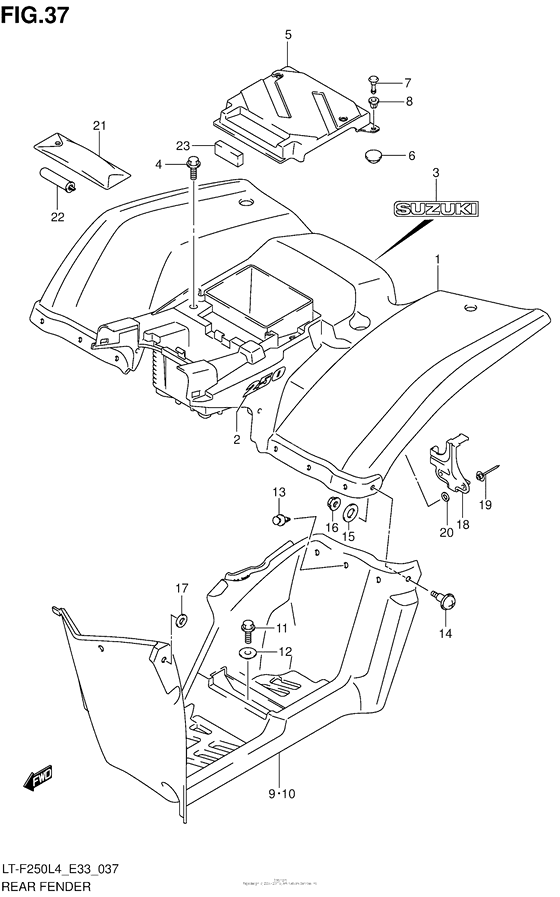

Rear Fender Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-05G01-YLG FENDER,RR |
63111-05G01-YLG |
US $404.80 |
||
|
1
|
1
63111-05G01-YT9 FENDER,RR |
63111-05G01-YT9 |
from US $404.80 |
||
|
2
|
2
68171-05G10-HFT EMBLEM,250 |
68171-05G10-HFT |
from US $8.72 |
||
|
3
|
3
68171-05GA0-1ZZ EMBLEM,SUZUKI |
68171-05GA0-1ZZ |
from US $8.72 |
||
|
4
|
4
09113-06001-000 BOLT(6X16)Bolt, outer |
09113-06001-000 |
from US $1.22 |
||
|
5
|
5
63121-05G10-000 COVER,RR FENDER |
63121-05G10-000 |
from US $24.66 |
||
|
6
|
6
09250-08007-000
CAP(OD:16)
|
09250-08007-000 |
— | ||
| replacement | |||||
|
6
|
6
09250-08020-000 Cap(Od:16) |
09250-08020-000 |
from US $2.28 |
||
|
7
|
7
09409-08329-000 GROMMETClip |
09409-08329-000 |
from US $1.06 |
||
|
8
|
8
09409-08330-000 PLUNGERGrommet |
09409-08330-000 |
from US $1.12 |
||
|
9
|
9
63331-05G00-291 MUDGUARD,FOOTREST,R |
63331-05G00-291 |
from US $98.26 |
||
|
10
|
10
63341-05G00-291 MUDGUARD,FOOTREST,L |
63341-05G00-291 |
from US $98.99 |
||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
12
|
12
09169-06076-000 WASHER |
09169-06076-000 |
from US $4.88 |
||
|
13
|
13
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
14
|
14
09136-05038-000 SCREW(5X16) |
09136-05038-000 |
from US $4.74 |
||
|
15
|
15
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
16
|
16
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
17
|
17
53341-38F01-000 WASHER |
53341-38F01-000 |
from US $2.13 |
||
|
18
|
18
47413-05G01-000 PLATE,CDI UNIT |
47413-05G01-000 |
US $7.18 |
||
|
19
|
19
09229-04020-000 RIVET |
09229-04020-000 |
from US $0.91 |
||
|
20
|
20
08322-01047-000 WASHER |
08322-01047-000 |
from US $0.80 |
||
|
21
|
21
09800-21044-000
TOOL ASSY
|
09800-21044-000 |
— | ||
| replacement | |||||
|
21
|
21
09800-21093-000 Tool Assy |
09800-21093-000 |
from US $12.51 |
||
|
22
|
22
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air |
96200-18A02-000 |
US $67.61 |
||
|
23
|
23
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) |
33652-31F00-000 |
from US $1.95 |
||
