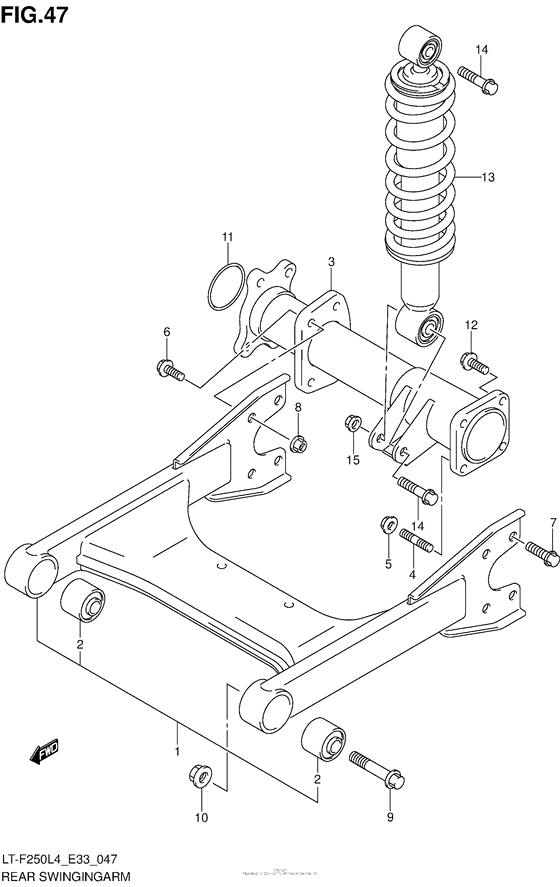

Rear Swingingarm Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-05850-000 SWINGINGARM SET,RR |
61100-05850-000 |
US $422.40 |
||
|
2
|
2
61230-38F00-000 BUSH,SUSPENSION ARM PIVOT |
61230-38F00-000 |
from US $23.55 |
||
|
3
|
3
61300-05G20-000 HOUSING,RR AXLE,R |
61300-05G20-000 |
from US $252.08 |
||
|
4
|
4
01421-1025A-000 BOLT,STUD |
01421-1025A-000 |
US $14.40 |
||
|
5
|
5
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
6
|
6
09103-10216-000 BOLT(10X20) |
09103-10216-000 |
from US $6.68 |
||
|
7
|
7
01550-1030B-000 BOLTBolt, axle housing rear |
01550-1030B-000 |
from US $5.07 |
||
|
8
|
8
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
9
|
9
09103-12042-000 BOLT(12X57)Bolt, pivot |
09103-12042-000 |
from US $9.76 |
||
|
10
|
10
09159-12054-000 NUTNut, pivot |
09159-12054-000 |
from US $7.78 |
||
|
11
|
11
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) |
09280-70005-000 |
from US $3.94 |
||
|
12
|
12
01550-1030B-000 BOLTBolt, axle housing rear |
01550-1030B-000 |
from US $5.07 |
||
|
13
|
13
62100-05G10-019
ABSORBER ASSY,RR SHOCK
|
62100-05G10-019 |
— | ||
| replacement | |||||
|
13
|
13
62100-05G11-019 Absorber Assy,rr Shock(Black) |
62100-05G11-019 |
from US $327.52 |
||
|
14
|
14
09103-10064-000 BOLT(10X50) |
09103-10064-000 |
from US $7.51 |
||
|
15
|
15
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
