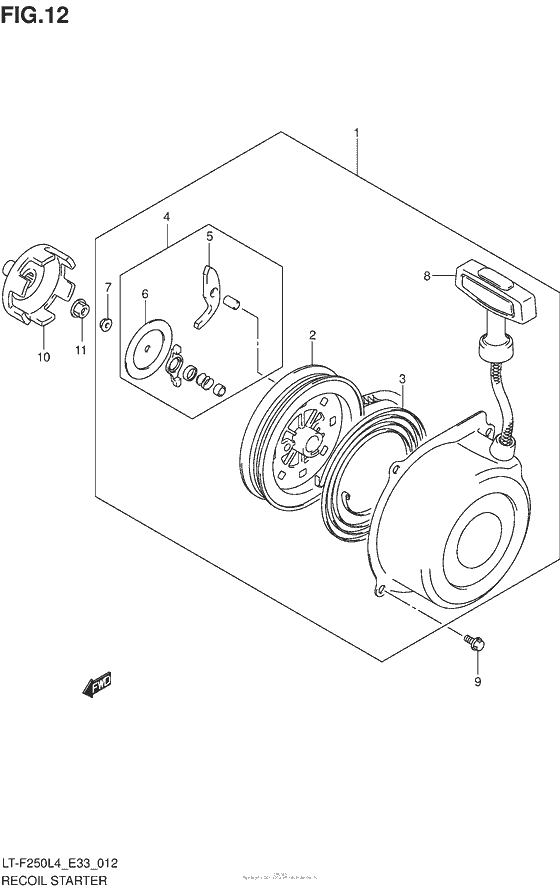

Recoil Starter Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-18A20-000 STARTER ASSY,RECOIL |
18100-18A20-000 |
from US $288.99 |
||
|
2
|
2
18120-24400-000 REEL,STARTER |
18120-24400-000 |
from US $48.50 |
||
|
3
|
3
18142-24400-000 SPRING,RECOIL |
18142-24400-000 |
from US $17.66 |
||
|
4
|
4
18130-24400-000 Ratchet set |
18130-24400-000 |
from US $22.88 |
||
|
5
|
5
18131-24411-000 RATCHET |
18131-24411-000 |
from US $3.97 |
||
|
6
|
6
18132-24400-000 GUIDE,RATCHET |
18132-24400-000 |
from US $1.62 |
||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
18200-24400-000 GRIP ASSY,STARTER 5.0X1870Rope assy (rope od:5) |
18200-24400-000 |
from US $22.82 |
||
|
9
|
9
09103-06236-000 BOLT(6X12) |
09103-06236-000 |
from US $4.25 |
||
|
10
|
10
18410-05G00-000 CUP,STARTER |
18410-05G00-000 |
from US $46.37 |
||
|
11
|
11
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
