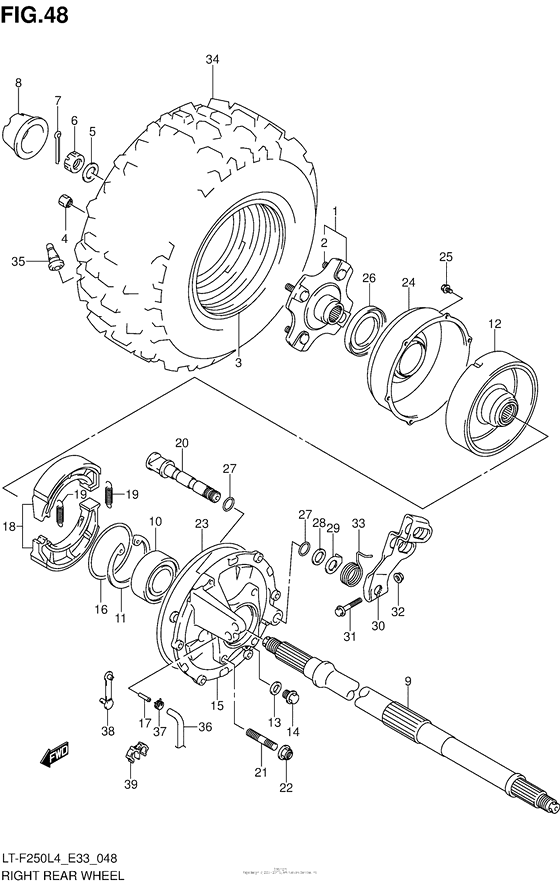

Right Rear Wheel Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-05G10-000 HUB,RR WHEEL,R |
64110-05G10-000 |
from US $136.16 |
||
|
2
|
2
09119-10049-XC0 BOLT |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
65310-05G00-YL8 RIM,RR WHEEL(9X8.0AT)Rim, rear wheel (9x7.0at) (silver) |
65310-05G00-YL8 |
from US $181.79 |
||
|
4
|
4
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
5
|
5
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
6
|
6
09141-18010-000 NUT |
09141-18010-000 |
from US $13.63 |
||
|
7
|
7
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
8
|
8
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
9
|
9
64711-05G10-000 AXLE,RR |
64711-05G10-000 |
from US $443.52 |
||
|
10
|
10
09267-30013-000
BEARING(30X62X23.8)
|
09267-30013-000 |
— | ||
| replacement | |||||
|
10
|
10
09267-30015-000 Bearing(30X62X23.8) |
09267-30015-000 |
from US $87.58 |
||
|
11
|
11
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $2.05 |
||
|
12
|
12
64120-05G10-000 DRUM,RR BRAKE |
64120-05G10-000 |
from US $202.40 |
||
|
13
|
13
09161-10007-000 WASHER(10X17X2) |
09161-10007-000 |
from US $2.35 |
||
|
14
|
14
09247-10008-000 PLUG(10X12)Plug, drain |
09247-10008-000 |
from US $1.52 |
||
|
15
|
15
64210-05G01-000 PANEL,RR BRAKE ANCHOR |
64210-05G01-000 |
US $348.13 |
||
|
16
|
16
09280-68008-000
O RING(D:2.4,ID:66.9)
|
09280-68008-000 |
— | ||
| replacement | |||||
|
16
|
16
09280-68011-000 O Ring |
09280-68011-000 |
from US $4.39 |
||
|
17
|
17
09364-04004-000 UNIONUnion, panel |
09364-04004-000 |
from US $15.05 |
||
|
18
|
18
64400-05810-000 SHOE SET,BRAKE |
64400-05810-000 |
from US $48.94 |
||
|
19
|
19
55421-45F00-000
SPRING,RR BRAKE SHOE
|
55421-45F00-000 |
— | ||
| replacement | |||||
|
19
|
19
55421-45F10-000 SPRING,BRAKE SHOE |
55421-45F10-000 |
from US $1.76 |
||
|
20
|
20
64440-05G01-000 CAM,RR BRAKE |
64440-05G01-000 |
from US $25.39 |
||
|
21
|
21
09108-10089-000 BOLT,STUDStud bolt |
09108-10089-000 |
from US $6.66 |
||
|
22
|
22
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
23
|
23
09280-00039-000 O RING(D:3.7,ID:165) |
09280-00039-000 |
from US $19.26 |
||
|
24
|
24
64123-05G00-000 COVER,RR BRAKE DRUM |
64123-05G00-000 |
from US $56.67 |
||
|
25
|
25
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
26
|
26
64124-05G00-000 SEAL,RR BRAKE DRUM COVER |
64124-05G00-000 |
US $37.33 |
||
|
27
|
27
09280-14004-000 O RING(D:1.9,ID:13.8)O ring, gear shifting cam |
09280-14004-000 |
from US $1.76 |
||
|
28
|
28
09160-14055-000 WASHER(14.5X22X1.6) |
09160-14055-000 |
from US $3.77 |
||
|
29
|
29
64492-21G00-000 PLATE,BRAKE LINING INDICATOR |
64492-21G00-000 |
from US $3.64 |
||
|
30
|
30
64451-05G00-000 LEVER,RR BRAKE CAM |
64451-05G00-000 |
from US $26.31 |
||
|
31
|
31
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
32
|
32
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
33
|
33
64484-05G00-000 SPRING,RR BRAKE CAM LEVER |
64484-05G00-000 |
from US $5.45 |
||
|
34
|
34
65110-05G20-000 TIRE,RR |
65110-05G20-000 |
from US $213.44 |
||
|
35
|
35
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
36
|
36
64270-05G00-000
HOSE,RR BRAKE BREATHER
|
64270-05G00-000 |
— | ||
| replacement | |||||
|
36
|
36
64270-05G01-000 Hose,rr Brake Breather |
64270-05G01-000 |
from US $10.67 |
||
|
37
|
37
09401-06405-000 CLIP |
09401-06405-000 |
from US $1.12 |
||
|
38
|
38
09407-03401-000 CLAMP(L:33) |
09407-03401-000 |
from US $0.96 |
||
|
39
|
39
09408-00200-000 CLIPClamp |
09408-00200-000 |
from US $3.64 |
||
