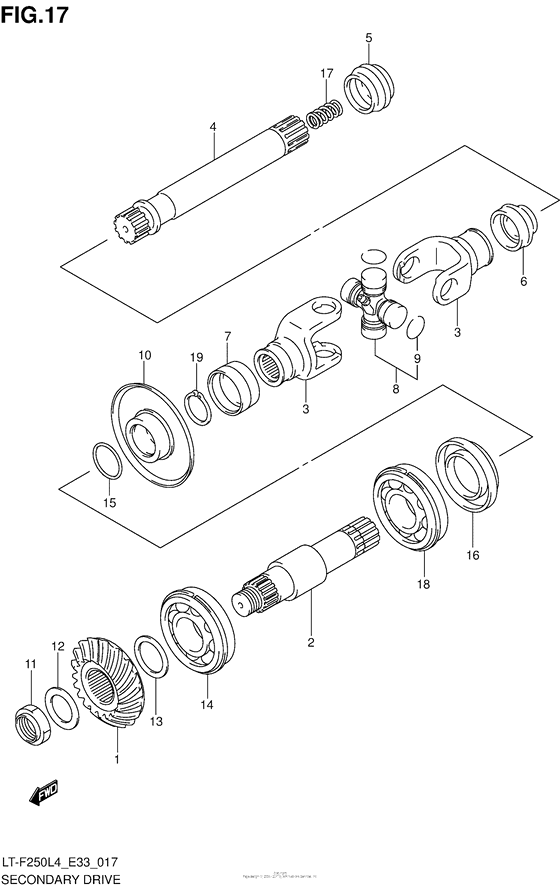

Secondary Drive Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24921-05G00-000 GEAR,SEC DRIVEN BEVEL(NT:21) |
24921-05G00-000 |
US $245.92 |
||
|
2
|
2
24971-05G00-000 SHAFT,SEC DRIVEN OUTPUT RR |
24971-05G00-000 |
from US $126.96 |
||
|
3
|
3
27140-03G00-000 YOKE,PROP SHAFT JOINTYoke, prop shaft, fr |
27140-03G00-000 |
US $158.97 |
||
|
4
|
4
27151-05G10-000 SHAFT,PROPELLER |
27151-05G10-000 |
from US $103.77 |
||
|
5
|
5
27153-03G00-000 BOOT,PROPELLER SHAFT |
27153-03G00-000 |
US $14.11 |
||
|
6
|
6
27153-05G00-000
BOOT,PROPELLER SHAFT
|
27153-05G00-000 |
— | ||
| replacement | |||||
|
6
|
6
27153-05G01-000 Boot,propeller Shaft |
27153-05G01-000 |
from US $2.69 |
||
|
7
|
7
27153-05G10-000
BOOT,RR OUTPUT JOINT
|
27153-05G10-000 |
— | ||
| replacement | |||||
|
7
|
7
27153-05G11-000 Boot,rr Output Joint |
27153-05G11-000 |
US $5 |
||
|
8
|
8
27200-38810-000 JOINT SET,UNIVERSAL |
27200-38810-000 |
from US $58.88 |
||
|
9
|
9
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
10
|
10
27590-05G00-000 COLLAR,OUTPUT OIL SEAL |
27590-05G00-000 |
US $71.50 |
||
|
11
|
11
09140-20012-000 NUT |
09140-20012-000 |
from US $5.88 |
||
|
12
|
12
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr |
09181-20223-000 |
from US $1.82 |
||
|
13
|
13
24945-03811-000 SHIM SET,SEC DRIVEN BEVEL |
24945-03811-000 |
US $128.04 |
||
|
14
|
14
09262-25135-000 BEARING(25X62X17) |
09262-25135-000 |
from US $30.36 |
||
|
15
|
15
09280-25005-000 O RING(D:1.9,ID:24.5) |
09280-25005-000 |
from US $1.19 |
||
|
16
|
16
09283-35052-000 SEAL,OIL(35X62X14.8) |
09283-35052-000 |
from US $10.34 |
||
|
17
|
17
09440-12038-000 SPRING |
09440-12038-000 |
from US $3.74 |
||
|
18
|
18
08173-63050-000 BEARING |
08173-63050-000 |
from US $14.59 |
||
|
19
|
19
08331-3124A-000 CIRCLIPCirclip, output shaft |
08331-3124A-000 |
from US $1.15 |
||
