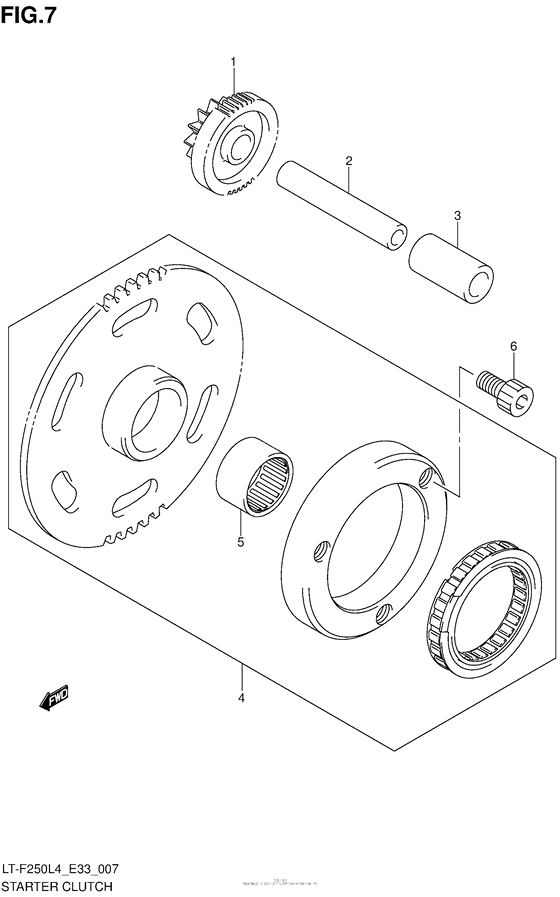

Starter Clutch Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12611-19B02-000 GEAR,STARTER IDLE |
12611-19B02-000 |
from US $55.20 |
||
|
2
|
2
09206-13016-000 PIN(7.4X13X72) |
09206-13016-000 |
from US $10.52 |
||
|
3
|
3
09180-13009-000 SPACER(13X19X32.8)Spacer |
09180-13009-000 |
from US $14.79 |
||
|
4
|
4
12600-16830-000 Clutch Set, Starter |
12600-16830-000 |
from US $350.15 |
||
|
5
|
5
09263-25049-000 BEARING(25X31X19) |
09263-25049-000 |
from US $14.14 |
||
|
6
|
6
09106-08190-000 BOLT(8X16) |
09106-08190-000 |
from US $3.62 |
