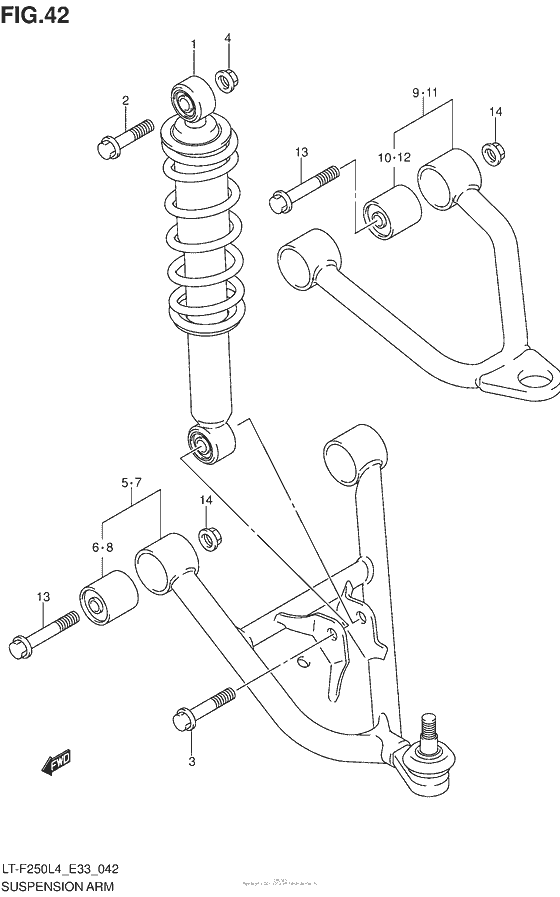

Suspension Arm Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-05G10-019 ABSORBER ASSY,FR SHOCKAbsorber assy, front shock (black) |
52100-05G10-019 |
US $272.32 |
||
|
2
|
2
09103-10019-000 BOLT(10X37)Bolt, shock absorber |
09103-10019-000 |
from US $1.82 |
||
|
3
|
3
09103-10126-000 BOLT(10X48)Bolt (10x48) |
09103-10126-000 |
from US $2.13 |
||
|
4
|
4
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
5
|
5
52410-05831-000 ARM SET,SUSPENSION LWR,R |
52410-05831-000 |
US $379.58 |
||
|
6
|
6
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
7
|
7
52420-05831-000 ARM SET,SUSPENSION LWR,L |
52420-05831-000 |
US $386.73 |
||
|
8
|
8
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
9
|
9
52430-05811-000 ARM SET,SUSPENSION UPR,R |
52430-05811-000 |
US $210.68 |
||
|
10
|
10
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
11
|
11
52440-05811-000 ARM SET,SUSPENSION UPR,L |
52440-05811-000 |
US $210.68 |
||
|
12
|
12
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
13
|
13
09103-10301-000 BOLT(10X60)Bolt (10x60) |
09103-10301-000 |
from US $8.16 |
||
|
14
|
14
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
