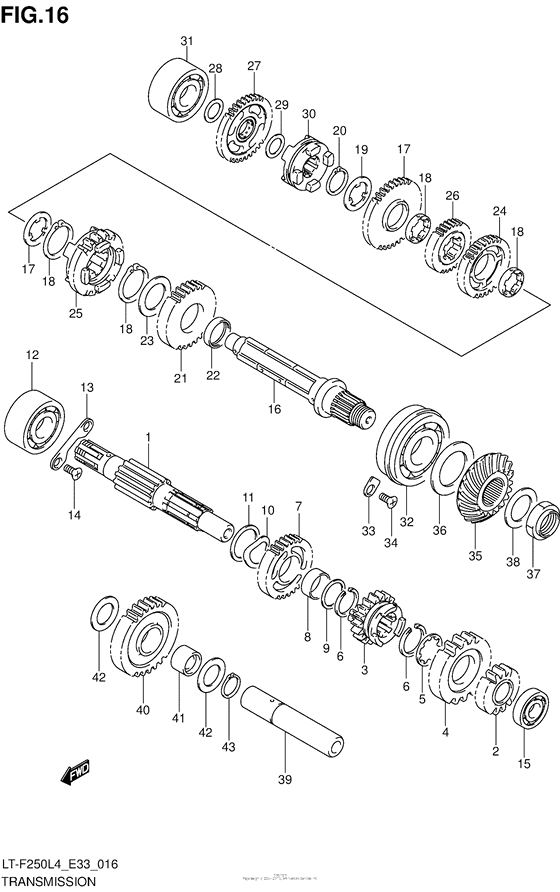

Transmission Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-05G00-000 SHAFT,COUNTER(NT:12) |
24121-05G00-000 |
US $101.20 |
||
|
2
|
2
24221-18A00-000 GEAR,2ND DRIVE(NT:15)Gear, 2nd drive (nt:15) |
24221-18A00-000 |
from US $55.20 |
||
|
3
|
3
24231-05G00-000 GEAR,3RD DRIVE(NT:18) |
24231-05G00-000 |
from US $66.61 |
||
|
4
|
4
24241-05G00-000 GEAR,4TH DRIVE(NT:21) |
24241-05G00-000 |
US $50.42 |
||
|
5
|
5
09167-22011-000 WASHER,LOCKWasher (22.1x27x0.5) |
09167-22011-000 |
from US $5.17 |
||
|
6
|
6
09380-22006-000 CIRCLIPCirclip |
09380-22006-000 |
from US $1.82 |
||
|
7
|
7
24251-05G00-000 GEAR,5TH DRIVE(NT:23) |
24251-05G00-000 |
from US $56.67 |
||
|
8
|
8
24252-05G00-000 BUSH,5TH DRIVE GEAR |
24252-05G00-000 |
from US $10.45 |
||
|
9
|
9
09181-22139-000 SHIM(22X28X1)Washer (22x28x1.0) |
09181-22139-000 |
from US $1.92 |
||
|
10
|
10
09164-26002-000 WASHER |
09164-26002-000 |
from US $3.71 |
||
|
11
|
11
08211-22425-000 WASHERWasher, 5th dr, rh |
08211-22425-000 |
from US $2.13 |
||
|
12
|
12
09262-22018-000 BEARING(22X50X14)Bearing, rh |
09262-22018-000 |
from US $11.84 |
||
|
13
|
13
24741-05G00-000 RETAINER,CNTR SHAFT BEARING,R |
24741-05G00-000 |
from US $3.64 |
||
|
14
|
14
09126-06011-000 SCREW(6X12)Screw, retainer mdl |
09126-06011-000 |
from US $0.76 |
||
|
15
|
15
09263-17026-000 BEARING(17X30X14)Bearing, lh |
09263-17026-000 |
from US $32.20 |
||
|
16
|
16
24131-05G00-000 SHAFT,DRIVE |
24131-05G00-000 |
from US $134.32 |
||
|
17
|
17
24311-05G00-000 GEAR,1ST DRIVEN(NT:37) |
24311-05G00-000 |
from US $60.72 |
||
|
18
|
18
24332-24510-000 BUSH,DRIVEN GEAR |
24332-24510-000 |
from US $10.18 |
||
|
19
|
19
09167-25016-000 WASHER,LOCKLock washer |
09167-25016-000 |
from US $2.13 |
||
|
20
|
20
09380-25003-000 RING,SNAPCirclip |
09380-25003-000 |
from US $2.74 |
||
|
21
|
21
24321-05G00-000 GEAR,2ND DRIVEN(NT:29) |
24321-05G00-000 |
US $59.25 |
||
|
22
|
22
09300-25020-000 BUSH(25X29X8)Bush |
09300-25020-000 |
from US $19.36 |
||
|
23
|
23
08211-25351-000 WASHER |
08211-25351-000 |
from US $5.07 |
||
|
24
|
24
24331-19B01-000 GEAR,3RD DRIVEN(NT:25)Gear, 3rd driven (nt:25) |
24331-19B01-000 |
from US $52.62 |
||
|
25
|
25
24341-05G00-000 GEAR,4TH DRIVEN(NT:23) |
24341-05G00-000 |
from US $58.14 |
||
|
26
|
26
24351-05G00-000 GEAR,5TH DRIVEN(NT:21) |
24351-05G00-000 |
from US $46.74 |
||
|
27
|
27
24570-05G00-000 GEAR,REVERSE DRIVEN(NT:34) |
24570-05G00-000 |
from US $52.62 |
||
|
28
|
28
09181-17195-000 SHIM(17X28X1)Washer (17x28x1.0) |
09181-17195-000 |
from US $4.91 |
||
|
29
|
29
09181-20167-000 SHIM(20X28X1)Shim (20x28x1.0) |
09181-20167-000 |
from US $4.13 |
||
|
30
|
30
24581-05G00-000 DOG,REVERSE |
24581-05G00-000 |
from US $33.30 |
||
|
31
|
31
09262-17026-000 BEARING(17X35X10) |
09262-17026-000 |
from US $20.98 |
||
|
32
|
32
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
33
|
33
24741-21A00-000 RETAINER |
24741-21A00-000 |
from US $1.60 |
||
|
34
|
34
09125-06122-000 SCREW(6X12) |
09125-06122-000 |
from US $3.35 |
||
|
35
|
35
24911-05G00-000 GEAR,SEC DRIVE BEVEL(NT:17) |
24911-05G00-000 |
from US $121.44 |
||
|
36
|
36
24935-03811-000 SHIM SET,SEC DRIVE BEVEL |
24935-03811-000 |
from US $65.14 |
||
|
37
|
37
09140-20012-000 NUT |
09140-20012-000 |
from US $5.88 |
||
|
38
|
38
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr |
09181-20223-000 |
from US $1.82 |
||
|
39
|
39
24551-05G00-000 SHAFT,REVERSE IDLE |
24551-05G00-000 |
from US $17.66 |
||
|
40
|
40
24561-05G02-000 GEAR,REVERSE IDLE(NT:29) |
24561-05G02-000 |
US $43.06 |
||
|
41
|
41
24562-05G00-000 BUSH,REVERSE IDLE GEAR |
24562-05G00-000 |
from US $10.12 |
||
|
42
|
42
09181-17195-000 SHIM(17X28X1)Washer (17x28x1.0) |
09181-17195-000 |
from US $4.91 |
||
|
43
|
43
08331-31179-000 CIRCLIP |
08331-31179-000 |
from US $0.96 |
