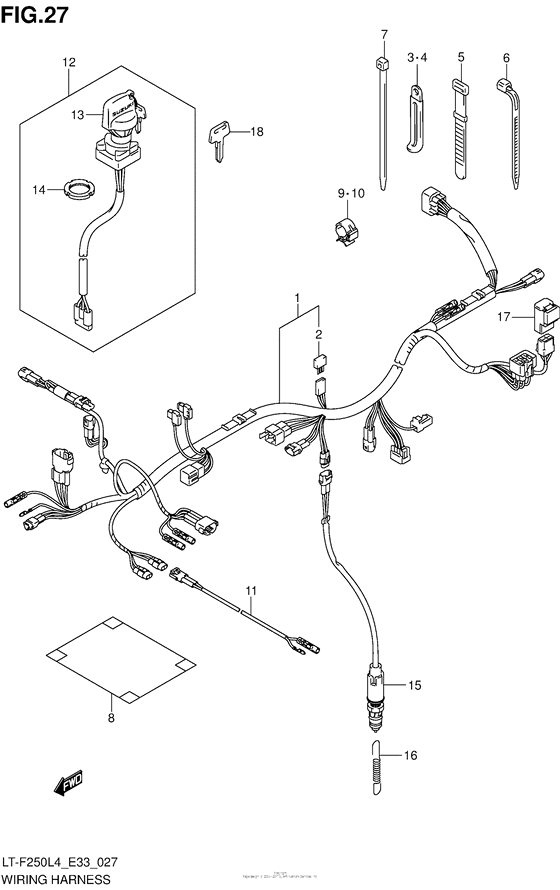

Wiring Harness Diagram Suzuki LT-F250 Ozark
- Model code
- LT-F250 L4
- Engine Capacity
- 249
- Year
- 2014
- Sales region
- USA/Canada
- Model
- Ozark
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-05G20-000 HARNESS,WIRING |
36610-05G20-000 |
from US $331.20 |
||
|
2
|
2
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
3
|
3
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
4
|
4
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
4
|
4
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
5
|
5
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $1.98 |
||
|
6
|
6
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
7
|
7
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
8
|
8
36618-15D20-000
COVER,WIRING HARNESS
|
36618-15D20-000 |
— | ||
| replacement | |||||
|
8
|
8
36618-15D21-000 Cover,wiring Harness |
36618-15D21-000 |
from US $9.12 |
||
|
9
|
9
09403-15405-000 CLAMPClamp, wiring harness |
09403-15405-000 |
from US $3.71 |
||
|
10
|
10
09403-25401-000 CLAMP |
09403-25401-000 |
US $19.10 |
||
|
11
|
11
36856-35B00-000 WIRE,BRAKE SW LEAD |
36856-35B00-000 |
from US $8.13 |
||
|
12
|
12
37110-05G00-000
SWITCH ASSY,IGNITION
|
37110-05G00-000 |
— | ||
| replacement | |||||
|
12
|
12
37110-05G01-000 Switch Assy,ignition |
37110-05G01-000 |
US $88.90 |
||
|
13
|
13
37142-19B00-000
MASCOT,KEY
|
37142-19B00-000 |
— | ||
| replacement | |||||
|
13
|
13
37142-19B01-000 Mascot,key |
37142-19B01-000 |
from US $5.76 |
||
|
14
|
14
37112-24500-000 NUT,IGNITION SWITCH |
37112-24500-000 |
from US $9.12 |
||
|
15
|
15
37740-38F01-000 SWITCH ASSY,STOP LAMP |
37740-38F01-000 |
from US $59.98 |
||
|
16
|
16
09443-06012-000 SPRINGSpring, stop lamp switch |
09443-06012-000 |
from US $5.07 |
||
|
17
|
17
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
17
|
17
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
from US $22.88 |
||
|
18
|
18
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c |
37146-19B00-000 |
from US $8.32 |
||
|
18
|
18
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d |
37146-19B10-000 |
from US $4.82 |
||
