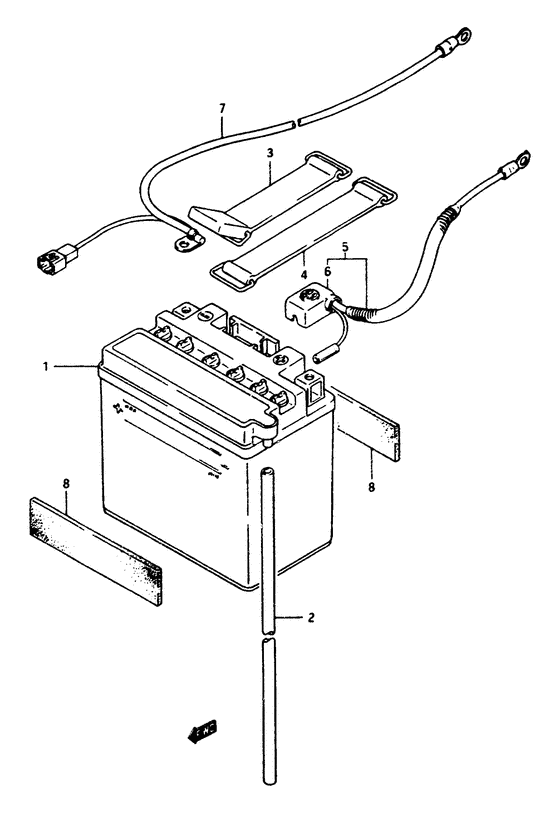

Battery Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-24560-000
Battery assy (12v,14ah)
|
33610-24560-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-24500-000
BATTERY(YB14A-A2,12V14.7AH)
|
33610-24500-000 |
— | ||
|
1
|
1
33610-24501-000 Battery Assy |
33610-24501-000 |
US $215.28 |
||
|
1
|
1
33610-24580-000 BATTERY(Y50-N18A-A,12V21.1AH)Battery assy (12v,20ah) Battery assy (12v,20ah); E28 |
33610-24580-000 |
from US $154.47 |
||
|
1
|
1
33610-24550-000
Battery assy (12v,20ah)
Opt |
33610-24550-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-24580-000 BATTERY(Y50-N18A-A,12V21.1AH)Battery assy (12v,20ah) Opt |
33610-24580-000 |
from US $154.47 |
||
|
2
|
2
33680-16A10-000
HOSE,BATTERY EXHAUST(L:780)
Hose, battery exhaust; L:600-550 |
33680-16A10-000 |
— | ||
| replacement | |||||
|
2
|
2
33680-16A11-000 Hose,battery Exhaust(L:780)Hose, battery exhaust; L:600-550 |
33680-16A11-000 |
from US $4.42 |
||
|
3
|
3
09462-00040-000 BANDBand, battery Band, battery; |
09462-00040-000 |
from US $8.99 |
||
|
4
|
4
09462-00087-000 BANDOpt,e28 |
09462-00087-000 |
from US $13.12 |
||
|
5
|
5
33820-19B02-000 WIRE,BATTERY PLUS LEADLead wire, battery (+) Lead wire, battery (+); |
33820-19B02-000 |
from US $12 |
||
|
6
|
6
33624-05A00-000 CAP,BATTERY PLUS TERMINALCap, battery (+) Cap, battery (+); |
33624-05A00-000 |
from US $3.02 |
||
|
7
|
7
33860-19B00-000 WIRE,BATTERY MINUS LEADLead wire, battery (-) Lead wire, battery (-); |
33860-19B00-000 |
from US $13.87 |
||
|
8
|
8
33652-19B00-000 CUSHION,BATTERY(80X27X3)Cushion, battery Cushion, battery; |
33652-19B00-000 |
from US $3.83 |
||
