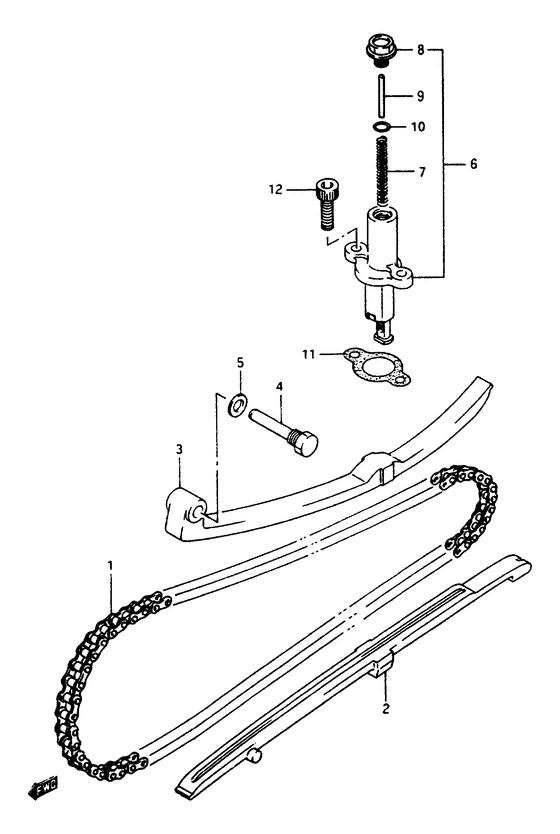

Cam chain Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12760-19B01-000 CHAIN,CAMSHAFT DRIVEChain, cam (104le) Chain, cam (104le); |
12760-19B01-000 |
from US $98.38 |
||
|
2
|
2
12771-19B00-000
Guide,cam chain
|
12771-19B00-000 |
— | ||
| replacements | |||||
|
2
|
2
12771-19B01-000
GUIDE,CAM CHAIN
|
12771-19B01-000 |
— | ||
|
2
|
2
12771-19B02-000 Guide,cam Chain |
12771-19B02-000 |
US $39.68 |
||
|
3
|
3
12811-19B10-000
TENSIONER,CAM CHAIN
|
12811-19B10-000 |
— | ||
| replacement | |||||
|
3
|
3
12811-19B11-000 Tensioner,cam Chain |
12811-19B11-000 |
US $53.55 |
||
|
4
|
4
12812-32410-000 BOLT,CAM CHAIN TENSIONERBolt |
12812-32410-000 |
from US $2.80 |
||
|
5
|
5
09168-08008-000
GASKET(8.2X14X1)
Washer; |
09168-08008-000 |
— | ||
| replacement | |||||
|
5
|
5
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Washer; |
09168-08016-000 |
from US $1.22 |
||
|
6
|
6
12830-19B02-000 ADJUSTER ASSY,TENSIONERAdjuster assy, tensioner |
12830-19B02-000 |
from US $96.80 |
||
|
7
|
7
12833-19B00-000 SPRING |
12833-19B00-000 |
from US $1.92 |
||
|
8
|
8
12834-19B00-000 PLUG |
12834-19B00-000 |
from US $8.46 |
||
|
9
|
9
12835-19B00-000 BAR |
12835-19B00-000 |
from US $1.92 |
||
|
10
|
10
12832-02A00-000 O RING |
12832-02A00-000 |
from US $2.11 |
||
|
11
|
11
12837-19B10-000 GASKET,TENSIONER ADJUSTERGasket, adjuster; |
12837-19B10-000 |
from US $1.82 |
||
|
12
|
12
07130-06203-000
Bolt
|
07130-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
07130-0620B-000 BOLTBolt, front brg housing |
07130-0620B-000 |
from US $0.91 |
||
