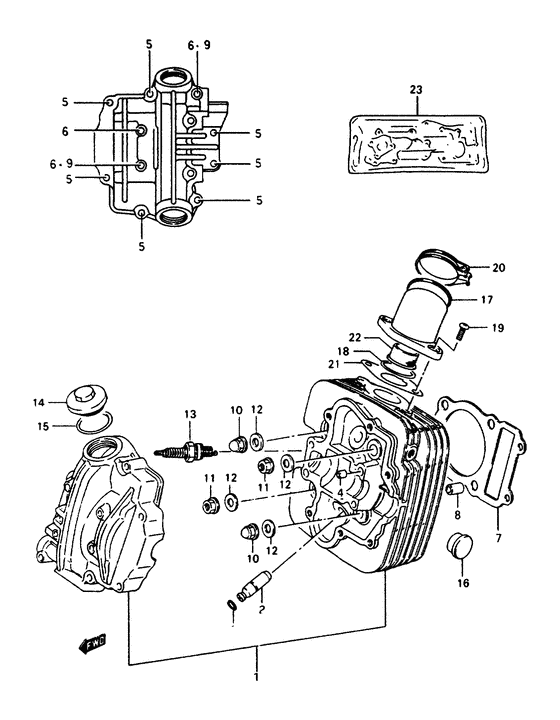

Cylinder head Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-19B01-000
HEAD ASSY,CYLINDER
|
11100-19B01-000 |
— | ||
|
2
|
2
11115-05270-000 GUIDE,VALVEGuide, valve Guide, valve; |
11115-05270-000 |
from US $15.96 |
||
|
3
|
3
09381-10004-000 RING,SNAPRing, valve guide Ring, valve guide; |
09381-10004-000 |
from US $1.06 |
||
|
4
|
4
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
5
|
5
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
5
|
5
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
6
|
6
01550-06603-000
Bolt
|
01550-06603-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
7
|
7
11141-19B00-000 GASKET,CYLINDER HEADGasket, cylinder head |
11141-19B00-000 |
from US $13.77 |
||
|
8
|
8
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
09159-08074-000 NUT |
09159-08074-000 |
from US $1.60 |
||
|
11
|
11
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
09168-08021-000 GASKET(8.5X17X2.3) CopperGasket (8.5x17x2.3) |
09168-08021-000 |
from US $1.22 |
||
|
13
|
13
09482-00182-000
Spark plug d7ea
Spark plug (ngk,d7ea); E3,e33 |
09482-00182-000 |
— | ||
| replacement | |||||
|
13
|
13
09482-00398-000 PLUG,SPARK(DR7EA)Spark plug (ngk,dr7ea) Spark plug (ngk,d7ea); E3,e33 |
09482-00398-000 |
from US $4.86 |
||
|
13
|
13
09482-00220-000 PLUG,SPARK(DR7ES)Spark plug (ngk,dr7es); E28 |
09482-00220-000 |
US $6.55 |
||
|
14
|
14
11175-37111-000
Cap inspection
Cap, inspection; |
11175-37111-000 |
— | ||
| replacement | |||||
|
14
|
14
11175-18920-000 CAP,INSPECTION HOLECap, inspection; |
11175-18920-000 |
from US $16.46 |
||
|
15
|
15
09280-30001-000 O RING(D:3,ID:29.5)O ring (d:3.0,id:29.5); |
09280-30001-000 |
from US $1.51 |
||
|
16
|
16
09241-22002-000 PLUG(OD:22.5)Plug, head Plug, head; |
09241-22002-000 |
from US $2.58 |
||
|
17
|
17
13110-19B52-000
Pipe, intake
|
13110-19B52-000 |
— | ||
| replacements | |||||
|
17
|
17
13101-19B50-000
PIPE ASSY,INTAKE
|
13101-19B50-000 |
— | ||
|
17
|
17
13101-19B51-000 Pipe Assy,intake |
13101-19B51-000 |
US $94.76 |
||
|
18
|
18
09280-35005-000 O RING(D:2.1,ID:34.7)O ring (d:2.1,id:34.7) O ring (d:2.1,id:34.7); |
09280-35005-000 |
from US $8.97 |
||
|
19
|
19
02112-76203-000
Screw
|
02112-76203-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-7620B-000 SCREW |
02112-7620B-000 |
from US $4.39 |
||
|
20
|
20
09402-50208-000 CLAMP |
09402-50208-000 |
from US $5.17 |
||
|
21
|
21
13120-19B01-000 GASKET,INTAKEGasket, intake pipe Gasket, intake pipe; |
13120-19B01-000 |
from US $2.46 |
||
|
22
|
22
13130-19B50-000
NET,INTAKE
|
13130-19B50-000 |
— | ||
|
23
|
23
11401-19861-000
Gasket set
|
11401-19861-000 |
— | ||
| replacement | |||||
|
23
|
23
11401-19864-000 GASKET SET |
11401-19864-000 |
from US $125.12 |
||
