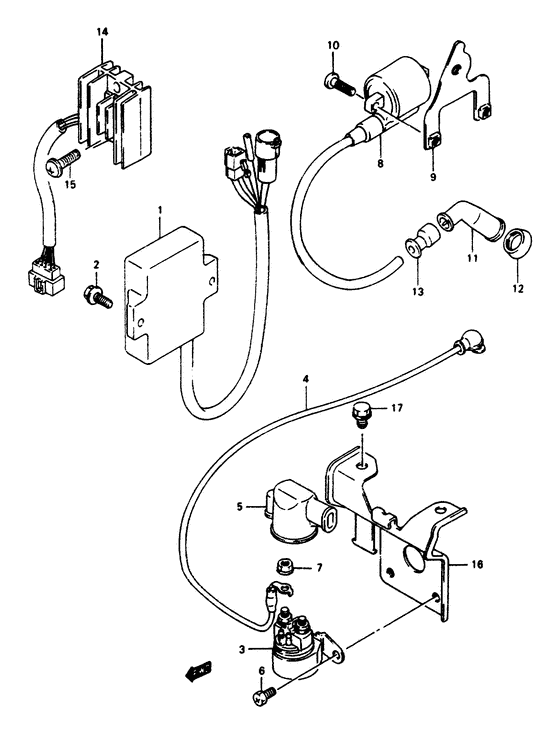

Electrical Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-19B50-000 CDI UNIT |
32900-19B50-000 |
from US $475.20 |
||
|
2
|
2
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
2
|
2
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
3
|
3
31800-49100-000 RELAY ASSY,STARTING MOTORRelay, starting motor Relay, starting motor; |
31800-49100-000 |
from US $77.60 |
||
|
4
|
4
33850-19B00-000 WIRE,STARTER MOTOR LEADLead wire, starting motor |
33850-19B00-000 |
from US $20.98 |
||
|
5
|
5
31861-46D00-000 CAP,STARTER RELAYCap, terminal Cap, terminal; |
31861-46D00-000 |
from US $4.16 |
||
|
6
|
6
09128-06013-000 SCREW(6X8)Screw Screw; |
09128-06013-000 |
from US $1.94 |
||
|
7
|
7
08361-35068-000
Nut
|
08361-35068-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.77 |
||
|
8
|
8
33410-01X50-000 COIL ASSY,IGNITIONCoil assy, ignition |
33410-01X50-000 |
from US $86.11 |
||
|
9
|
9
33416-19B00-000 BRACKET,IGNITION COILBracket, ignition coil |
33416-19B00-000 |
US $7.36 |
||
|
10
|
10
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
11
|
11
33510-43010-000 Cap,spark plugCap, spark plug Cap, spark plug; |
33510-43010-000 |
from US $19.73 |
||
|
12
|
12
33541-24510-000
Seal, spark plug cap
Seal, spark plug; |
33541-24510-000 |
— | ||
| replacement | |||||
|
12
|
12
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-47D00-000 |
from US $4.26 |
||
|
13
|
13
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, hightension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
14
|
14
32800-19B11-000 Rectifier Assy |
32800-19B11-000 |
from US $140.21 |
||
|
15
|
15
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
16
|
16
47410-19B10-000 HOLDER,ELECTRIC PARTS RRHolder, electric parts rear |
47410-19B10-000 |
from US $9.31 |
||
|
17
|
17
01570-06163-000
Bolt
Bolt, holder, rear; |
01570-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0616B-000 BoltBolt, holder, rear; |
01570-0616B-000 |
from US $0.80 |
||
|
17
|
17
01570-0616A-000 BoltBolt, holder, rear; |
01570-0616A-000 |
from US $0.80 |
||
