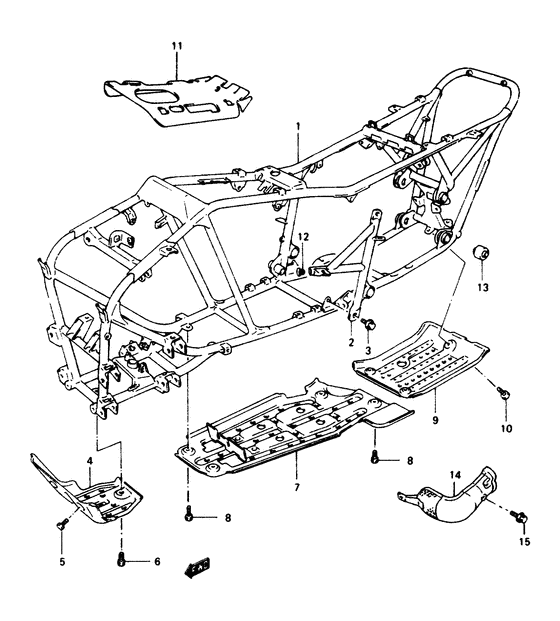

Frame Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-20861-019
Frame set (black)
|
41100-20861-019 |
— | ||
| replacement | |||||
|
1
|
1
41100-20862-019
Frame set
|
41100-20862-019 |
— | ||
|
2
|
2
41910-39D00-019 TUBE,ENGINE MOUNT FRBar, mounting front (black) Plate, mounting front (black); |
41910-39D00-019 |
US $97.15 |
||
|
3
|
3
09103-10165-000 BOLT(10X20) |
09103-10165-000 |
from US $6.29 |
||
|
4
|
4
42511-20B10-000
Protector,front
|
42511-20B10-000 |
— | ||
| replacement | |||||
|
4
|
4
42511-20B11-000
PROTECTOR,FR
|
42511-20B11-000 |
— | ||
|
5
|
5
01580-06123-000
Bolt
Bolt, front; |
01580-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01580-0612B-000 BoltBolt, front; |
01580-0612B-000 |
US $0.96 |
||
|
5
|
5
01580-0612A-000 BoltBolt, front; |
01580-0612A-000 |
from US $0.91 |
||
|
6
|
6
01580-06163-000
Bolt
Bolt, rear; |
01580-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
01580-0616A-000 BOLTBolt, rear; |
01580-0616A-000 |
from US $0.96 |
||
|
7
|
7
42560-19B02-000
Protector,middl
|
42560-19B02-000 |
— | ||
| replacement | |||||
|
7
|
7
42560-19B03-000
Protector, middle
|
42560-19B03-000 |
— | ||
|
8
|
8
01580-06203-000
Bolt
Bolt, rear; |
01580-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01580-0620B-000 BOLTBolt, rear; |
01580-0620B-000 |
from US $4.49 |
||
|
9
|
9
61390-19B01-000
Protector comp
|
61390-19B01-000 |
— | ||
| replacement | |||||
|
9
|
9
61390-19B02-000 PROTECTOR,ENGINE |
61390-19B02-000 |
from US $79.49 |
||
|
10
|
10
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
11
|
11
47157-19B10-000
Mud guard
|
47157-19B10-000 |
— | ||
| replacement | |||||
|
11
|
11
47157-19B11-000
MUDGUARD,CLEANER INLET
|
47157-19B11-000 |
— | ||
|
12
|
12
43978-24500-000 CAP,FR GRIPCap |
43978-24500-000 |
from US $2.72 |
||
|
13
|
13
09319-10064-000 BUSH |
09319-10064-000 |
from US $24.34 |
||
|
14
|
14
42570-39D00-000 COVER,MUD |
42570-39D00-000 |
US $162.66 |
||
|
15
|
15
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
15
|
15
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
