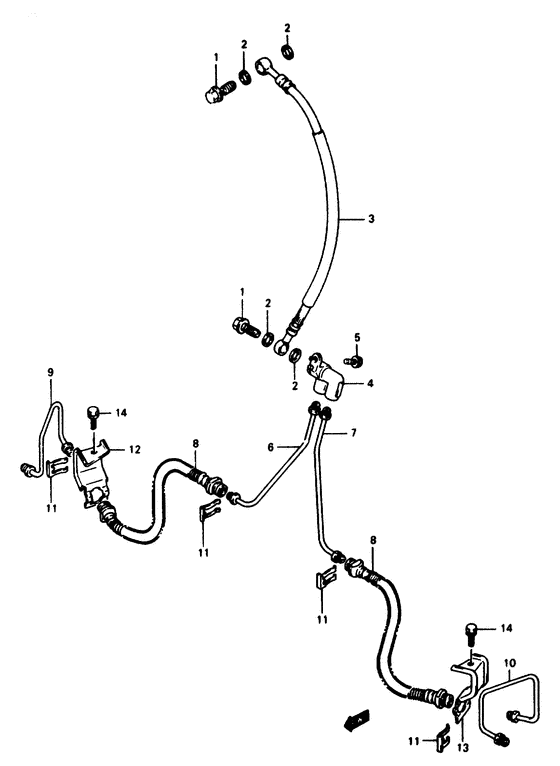

Front brake hose Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10039-000
Bolt
Bolt (10x1.00x22); |
09360-10039-000 |
— | ||
| replacement | |||||
|
1
|
1
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Bolt (10x1.00x22); |
09360-10061-000 |
from US $6.24 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59480-20B01-000
HOSE,FR BRAKE NO.1
|
59480-20B01-000 |
— | ||
| replacement | |||||
|
3
|
3
59480-20B02-000 Hose |
59480-20B02-000 |
US $58.14 |
||
|
4
|
4
59490-19A00-000 Joint 3 wayJoint, three way; |
59490-19A00-000 |
US $43.30 |
||
| replacement | |||||
|
4
|
4
59491-19A10-000 JOINT,3 WAYJoint, three way; |
59491-19A10-000 |
from US $28.34 |
||
|
5
|
5
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
5
|
5
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
6
|
6
59250-20B00-000
PIPE,BRAKE NO.1,R
|
59250-20B00-000 |
— | ||
|
7
|
7
59450-20B00-000
Pipe comp,brake
|
59450-20B00-000 |
— | ||
|
8
|
8
59240-20B01-000
HOSE,FR BRAKE NO.2
|
59240-20B01-000 |
— | ||
|
9
|
9
59250-20B10-000 PIPE,BRAKE NO.2,RPipe, brake no.2 rh |
59250-20B10-000 |
from US $6.96 |
||
|
10
|
10
59450-20B10-000 PIPE,BRAKE NO.2,LPipe, brake no.2 lh |
59450-20B10-000 |
from US $6.29 |
||
|
11
|
11
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
11
|
11
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
12
|
12
59261-20B00-000
Guide,brake hos
|
59261-20B00-000 |
— | ||
|
13
|
13
59271-20B00-000
Guide brake hos
|
59271-20B00-000 |
— | ||
|
14
|
14
01570-06103-000
Bolt
|
01570-06103-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-0610A-000 Bolt |
01570-0610A-000 |
from US $2.48 |
||
