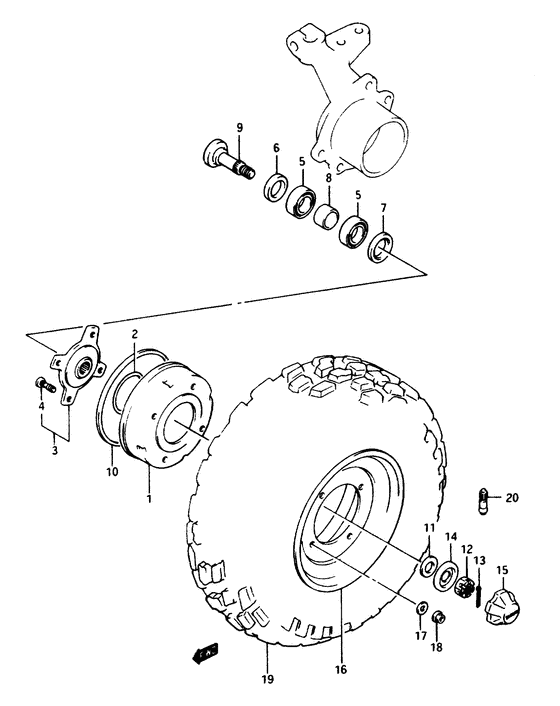

Front wheel Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54120-19B10-000
Drum comp,brake
|
54120-19B10-000 |
— | ||
|
2
|
2
09280-80001-000 O RING(D:2.4,ID:79.8)O ring (id:79.8,d:2.40); |
09280-80001-000 |
from US $1.98 |
||
|
3
|
3
54110-19B01-000
HUB,FR
|
54110-19B01-000 |
— | ||
|
4
|
4
09119-10045-000
Bolt
Bolt, front hub; |
09119-10045-000 |
— | ||
| replacement | |||||
|
4
|
4
09119-10045-XC0 BoltBolt, front hub; |
09119-10045-XC0 |
from US $3.25 |
||
|
5
|
5
08123-60067-000 BEARINGBearing, front hub Bearing, front hub; |
08123-60067-000 |
from US $16.72 |
||
|
6
|
6
09283-38012-000 SEAL,OIL(38X55X8)Dust seal, inner (38x55x8); |
09283-38012-000 |
from US $10.72 |
||
|
7
|
7
09283-38013-000 SEAL,OIL(38X55X6.4)Dust seal, outer Dust seal, outer (38x55x6.4); |
09283-38013-000 |
from US $8.98 |
||
|
8
|
8
54731-19B00-000 SPACER,HUB BEARINGSpacer, front hub Spacer, front hub; |
54731-19B00-000 |
from US $7.36 |
||
|
9
|
9
54711-20B01-000
Axle, front
|
54711-20B01-000 |
— | ||
| replacement | |||||
|
9
|
9
54711-20B0V-000 AXLE,FR |
54711-20B0V-000 |
from US $42.69 |
||
|
10
|
10
54124-19B10-000 SEAL,DRUM BRAKE DUSTDust seal, drum brake Dust seal, drum brake; |
54124-19B10-000 |
from US $56.67 |
||
|
11
|
11
09164-18004-000 WASHERWasher, hub Washer, hub; |
09164-18004-000 |
from US $3.20 |
||
|
12
|
12
09141-18008-000 NUTNut, hub (white) Nut, hub; |
09141-18008-000 |
from US $11.29 |
||
|
13
|
13
04111-40408-000
Pin, cotter
Cotter pin; |
04111-40408-000 |
— | ||
| replacement | |||||
|
13
|
13
04111-4040A-000 PINCotter pin; |
04111-4040A-000 |
from US $0.80 |
||
|
14
|
14
64726-19B00-000 HOLDER,CTR CAPHolder, center cap Holder, center cap; |
64726-19B00-000 |
from US $1.60 |
||
|
15
|
15
54725-39D00-000 CAP,RR WHEEL CTRCap, wheel center Cap, wheel center; |
54725-39D00-000 |
from US $9.72 |
||
|
16
|
16
55310-20B00-13L RIM,FR WHEELRim, front wheel (silver) Rim, front wheel (silver); |
55310-20B00-13L |
from US $172.96 |
||
|
17
|
17
09160-10119-000 WASHER(10.5X22X1.6)Washer, wheel set Washer, wheel set; |
09160-10119-000 |
from US $0.96 |
||
| replacement | |||||
|
17
|
17
09160-10143-000 WASHER(10.5X22X1.6)Washer, wheel set; |
09160-10143-000 |
from US $0.91 |
||
|
18
|
18
08316-10103-000
Nut
Nut, wheel set; |
08316-10103-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1010B-000 NUTNut, wheel set; |
08316-1010B-000 |
from US $0.80 |
||
|
19
|
19
55100-20B51-000
Tire fr at22x8-
Tire, t/l front (at22x8-10) (dunlop); |
55100-20B51-000 |
— | ||
|
20
|
20
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim Valve assy, wheel rim, tr413; |
43130-78030-000 |
US $12.50 |
||
