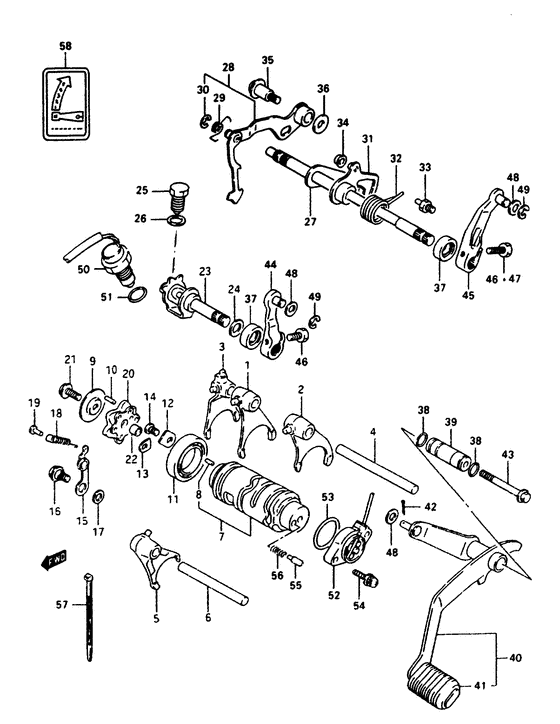

Gear shifting Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-19B00-000 FORK,GEAR SHIFT NO.1Fork, gear shifting, no.1 |
25211-19B00-000 |
from US $41.95 |
||
|
2
|
2
25221-19B00-000 FORK,GEAR SHIFT NO.2Fork, gear shifting, no.2 Fork, gear shifting, no. 2; |
25221-19B00-000 |
from US $41.95 |
||
|
3
|
3
25241-19B00-000 FORK,GEAR SHIFT REVERSEFork, gear shifting, no.4 |
25241-19B00-000 |
from US $46.37 |
||
|
4
|
4
25411-24501-000 SHAFT,GEAR SHIFT FORK NO.1Shaft, no.1 Shaft, no. 1; |
25411-24501-000 |
from US $11.92 |
||
|
5
|
5
25231-19B00-000 FORK,GEAR SHIFT NO.3Fork, gear shifting, no.3 Fork, gear shifting, no. 3; |
25231-19B00-000 |
from US $47.20 |
||
|
6
|
6
25411-14331-000 SHAFT,GEAR SHIFT FORKShaft, no.2 Shaft, no. 2; |
25411-14331-000 |
from US $10.82 |
||
|
7
|
7
25310-19B02-000 CAM,GEAR SHIFTCam, gear shifting |
25310-19B02-000 |
from US $93.10 |
||
|
8
|
8
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
9
|
9
25322-19B00-000 RETAINER,SHIFT CAM DR PINRetainer, pin |
25322-19B00-000 |
from US $1.80 |
||
|
10
|
10
09261-04002-000 ROLLER(4X13.8)Pin |
09261-04002-000 |
from US $0.91 |
||
|
11
|
11
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) Bearing (25x47x8); |
09262-25006-000 |
from US $14.08 |
||
|
12
|
12
25341-19B00-000 RETAINER,SHIFT CAM BRG NO.1 |
25341-19B00-000 |
US $2.83 |
||
|
13
|
13
24741-21A00-000 RETAINERRetainer; |
24741-21A00-000 |
from US $1.60 |
||
|
14
|
14
02112-06123-000
Screw, breather cover
Screw; |
02112-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0612B-000 SCREWScrew, oil guide plate Screw; |
02112-0612B-000 |
from US $0.76 |
||
|
14
|
14
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
15
|
15
25350-19B00-000 STOPPER,GEAR SHIFT CAMStopper, cam |
25350-19B00-000 |
from US $6.77 |
||
|
16
|
16
09111-06054-000 BOLT(6X14.6)Bolt (16x14.6); |
09111-06054-000 |
from US $5.03 |
||
|
17
|
17
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
18
|
18
09443-06067-000 SPRING |
09443-06067-000 |
US $21.30 |
||
|
19
|
19
09223-04001-000 RIVETPin Pin; |
09223-04001-000 |
from US $2.30 |
||
|
20
|
20
25381-20A00-000 PLATE,SHIFT CAM STOPPERPlate, stopper Plate, stopper; |
25381-20A00-000 |
from US $10.64 |
||
|
21
|
21
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
21
|
21
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
22
|
22
04211-09109-000 PINKnock pin Pin; |
04211-09109-000 |
from US $0.96 |
||
|
23
|
23
25320-19B01-000
Cam,reverse shi
|
25320-19B01-000 |
— | ||
| replacement | |||||
|
23
|
23
25320-19B10-000 CAM,REVERSE SHIFTCam, reverse shifting |
25320-19B10-000 |
from US $31.83 |
||
|
24
|
24
08211-12183-000
Washer
|
08211-12183-000 |
— | ||
| replacement | |||||
|
24
|
24
08211-1218A-000 WASHER |
08211-1218A-000 |
from US $3.37 |
||
|
25
|
25
25350-11000-000 STOPPER,REVERSEStopper, cam |
25350-11000-000 |
US $9.46 |
||
|
26
|
26
09168-14002-000
GASKET(13.8X18.8X4.8)
|
09168-14002-000 |
— | ||
| replacement | |||||
|
26
|
26
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
27
|
27
25510-19B00-000 SHAFT,GEAR SHIFTShaft, gear shifting no.1 |
25510-19B00-000 |
from US $53.73 |
||
|
28
|
28
25520-19B01-000 ARM,GEAR SHIFTING NO.2Arm, gear shifting no.2 |
25520-19B01-000 |
from US $26.86 |
||
|
29
|
29
09448-13006-000 SPRINGSpring |
09448-13006-000 |
from US $3.47 |
||
|
30
|
30
08332-11075-000
E ring
|
08332-11075-000 |
— | ||
| replacement | |||||
|
30
|
30
08332-1107A-000 E RING |
08332-1107A-000 |
from US $0.96 |
||
|
31
|
31
25540-19B01-000 ARM,GEAR SHIFT LINKArm, link |
25540-19B01-000 |
from US $16.41 |
||
|
32
|
32
09444-26025-000 SPRING |
09444-26025-000 |
from US $5.22 |
||
|
33
|
33
25671-24500-000
Stopper arm
|
25671-24500-000 |
— | ||
| replacement | |||||
|
33
|
33
25671-24501-000 STOPPER,GEAR SHIFT ARM |
25671-24501-000 |
US $2.94 |
||
|
34
|
34
09180-07014-000 SPACER(7X10X5)Roller |
09180-07014-000 |
from US $6.58 |
||
|
35
|
35
09103-08193-000 BOLT(8X30.3) |
09103-08193-000 |
from US $6.95 |
||
|
36
|
36
08211-08201-000 WASHERWasher |
08211-08201-000 |
from US $3.21 |
||
|
37
|
37
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Oil seal (12x22x9); |
09285-12006-000 |
from US $2.58 |
||
|
38
|
38
09280-10012-000 O RING(D:1.5,ID:10)O ring (d:1.5,id:10) O ring (d:1.5,id:10); |
09280-10012-000 |
from US $1.52 |
||
|
39
|
39
25661-19B00-000 COLLAR,GEAR SHIFT LEVER |
25661-19B00-000 |
US $19.92 |
||
|
40
|
40
25600-19B70-000 LEVER ASSY,GEAR SHIFTLever assy, gear shifting |
25600-19B70-000 |
from US $60.04 |
||
|
41
|
41
25652-24401-000 RUBBER,GEAR SHIFT PEDALCover |
25652-24401-000 |
US $8.08 |
||
|
42
|
42
04111-25158-000
Pin 25x15
|
04111-25158-000 |
— | ||
| replacement | |||||
|
42
|
42
04111-2515A-000 PIN |
04111-2515A-000 |
from US $0.77 |
||
|
43
|
43
01550-06553-000
Bolt
|
01550-06553-000 |
— | ||
| replacement | |||||
|
43
|
43
01550-0655B-000 BoltBolt, hydraulic unit no.2 |
01550-0655B-000 |
from US $0.91 |
||
|
44
|
44
25640-19B00-000 ARM,REVERSE GEAR SHIFT |
25640-19B00-000 |
from US $36.25 |
||
|
45
|
45
25630-19B70-000 ARM,T/M GEAR SHIFT CABLEArm, gear shifting cable |
25630-19B70-000 |
from US $36.80 |
||
|
46
|
46
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
46
|
46
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
47
|
47
01500-08253-000
Bolt
|
01500-08253-000 |
— | ||
| replacement | |||||
|
47
|
47
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
48
|
48
08322-01083-000
WASHER
Washer; |
08322-01083-000 |
— | ||
| replacements | |||||
|
48
|
48
08322-0108B-000 WASHERWasher; |
08322-0108B-000 |
from US $0.80 |
||
|
48
|
48
08322-0108A-000 WASHERWasher; |
08322-0108A-000 |
from US $0.80 |
||
|
49
|
49
08332-11063-000
E ring
E ring; |
08332-11063-000 |
— | ||
| replacements | |||||
|
49
|
49
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
49
|
49
08332-1106A-000 E RINGE ring, pinion E ring; |
08332-1106A-000 |
from US $0.77 |
||
|
50
|
50
37600-19B02-000
Switch assy, reverse
|
37600-19B02-000 |
— | ||
| replacement | |||||
|
50
|
50
37600-19B03-000 SWITCH ASSY,REVERSESwitch assy, reverse |
37600-19B03-000 |
from US $59.25 |
||
|
51
|
51
09280-16008-000 O RING(D:3.2,ID:15.8)O ring (d:3.2,id:15.8) O ring (d:3.2,id:15.8); |
09280-16008-000 |
from US $2.75 |
||
|
52
|
52
37720-24501-000
Base assy gr sh
Switch, gear shifting; |
37720-24501-000 |
— | ||
| replacement | |||||
|
52
|
52
37720-24502-000 BASE ASSY,NEUTRAL SW TERMINALSwitch, gear shifting; |
37720-24502-000 |
from US $56.32 |
||
|
53
|
53
09280-26005-000 O RING(D:2.4,ID:26.2)O ring (d:2.4,id:26.2) O ring (d:2.4,id:26.2); |
09280-26005-000 |
from US $1.82 |
||
|
54
|
54
02112-75203-000
Screw
|
02112-75203-000 |
— | ||
| replacements | |||||
|
54
|
54
02112-7520B-000 SCREW |
02112-7520B-000 |
US $15.50 |
||
|
54
|
54
02112-7520A-000 SCREW |
02112-7520A-000 |
from US $3.96 |
||
|
55
|
55
09209-05011-000 PIN(5X15.5)Contact Contact; |
09209-05011-000 |
from US $1.51 |
||
|
56
|
56
09440-04010-000 SPRINGSpring; |
09440-04010-000 |
from US $1.06 |
||
|
57
|
57
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
58
|
58
68392-24210-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift |
68392-24210-000 |
from US $1.62 |
||
|
58
|
58
68392-24220-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift pattern E28 |
68392-24220-000 |
from US $1.60 |
||
