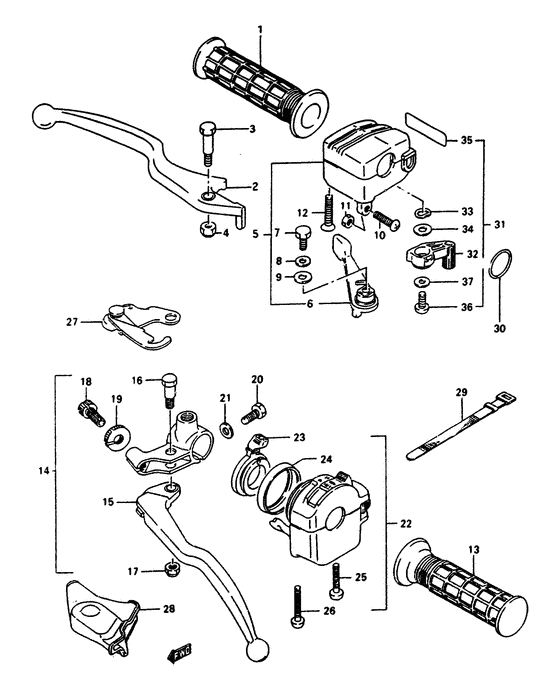

Handle lever Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-19A03-291
GRIP
Grip (black); |
57211-19A03-291 |
— | ||
| replacement | |||||
|
1
|
1
57211-19A04-291 GripGrip (black); |
57211-19A04-291 |
US $15.86 |
||
|
2
|
2
57421-39D10-000 LEVER,FR BRAKELever, brake Lever, brake; |
57421-39D10-000 |
from US $37.60 |
||
|
3
|
3
57431-13030-000
Screw, brake le
|
57431-13030-000 |
— | ||
| replacement | |||||
|
3
|
3
09111-06075-000 BOLT(6X28)Bolt |
09111-06075-000 |
from US $9.84 |
||
|
4
|
4
08319-21065-000
Nut
|
08319-21065-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
5
|
5
57100-19B02-000
Case assy, throttle
|
57100-19B02-000 |
— | ||
| replacement | |||||
|
5
|
5
57100-39DB0-000 CASE ASSY,THROTTLE |
57100-39DB0-000 |
from US $64.03 |
||
|
6
|
6
57151-24301-000 LEVER,THROTTLE |
57151-24301-000 |
from US $8.13 |
||
|
7
|
7
01500-06163-000
Bolt
|
01500-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
8
|
8
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
9
|
9
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer; |
09160-06019-000 |
from US $0.76 |
||
|
10
|
10
09125-05066-000 SCREW(5X25) |
09125-05066-000 |
from US $0.81 |
||
|
11
|
11
09140-05006-000 NUT |
09140-05006-000 |
from US $3.47 |
||
|
12
|
12
02132-05307-000 SCREW |
02132-05307-000 |
from US $2.04 |
||
|
13
|
13
57211-19A03-291
GRIP
Grip (black); |
57211-19A03-291 |
— | ||
| replacement | |||||
|
13
|
13
57211-19A04-291 GripGrip (black); |
57211-19A04-291 |
US $15.86 |
||
|
14
|
14
57500-24502-000
LEVER ASSY,RR BRAKE
|
57500-24502-000 |
— | ||
|
15
|
15
57620-24501-000 LEVER,RR BRAKELever |
57620-24501-000 |
from US $40.95 |
||
|
16
|
16
57431-29502-000 BOLT,LEVER PIVOT |
57431-29502-000 |
from US $3.50 |
||
|
17
|
17
08319-21065-000
Nut
|
08319-21065-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
18
|
18
57441-44400-000 ADJUSTER,CABLEAdjuster |
57441-44400-000 |
from US $3.04 |
||
|
19
|
19
57442-44400-000 NUT,CABLE ADJUSTER LOCK |
57442-44400-000 |
US $2.66 |
||
| replacement | |||||
|
19
|
19
57442-11010-000 NUT,CABLE ADJUSTERNut |
57442-11010-000 |
from US $1.67 |
||
|
20
|
20
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
21
|
21
08322-01063-000
Washer
Washer; |
08322-01063-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
|
22
|
22
37400-19B11-000
Switch assy, lh
|
37400-19B11-000 |
— | ||
| replacement | |||||
|
22
|
22
37400-19B13-000 SWITCH ASSY,HANDLE,L |
37400-19B13-000 |
from US $101.20 |
||
|
23
|
23
37571-19B01-000 LEVER,CHOKE |
37571-19B01-000 |
US $16.39 |
||
|
24
|
24
37576-19B01-000 COVER,CHOKE |
37576-19B01-000 |
from US $4.05 |
||
|
25
|
25
02112-05403-000
Screw
|
02112-05403-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-0540B-000 SCREW |
02112-0540B-000 |
from US $0.77 |
||
|
26
|
26
02112-05455-000
Screw
|
02112-05455-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-0545B-000 SCREW |
02112-0545B-000 |
from US $2.08 |
||
|
27
|
27
57790-19B00-000
STOPPER,BRAKE LEVER
|
57790-19B00-000 |
— | ||
|
28
|
28
57541-29500-000
Cover, clutch lever
|
57541-29500-000 |
— | ||
| replacement | |||||
|
28
|
28
57541-29501-000 COVER,CLUTCH CABLE DUSTCover, brake dust |
57541-29501-000 |
from US $6.16 |
||
|
29
|
29
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $1.98 |
||
|
30
|
30
09280-24009-000 O RING(D:3.6,ID:23.5)O ring |
09280-24009-000 |
from US $10.85 |
||
|
31
|
31
57300-19820-000 LEVER SET,THROTTLELever set, throttle position; E28 |
57300-19820-000 |
US $8.13 |
||
|
32
|
32
57155-18B10-000 LEVER,STOPE28 |
57155-18B10-000 |
US $5.74 |
||
|
33
|
33
57156-24300-000 WASHER,LEVER STOPE28 |
57156-24300-000 |
US $1.73 |
||
|
34
|
34
09160-08003-000 WASHER(8X13.7X1)Washer (8x13.7x1) Washer; E28 |
09160-08003-000 |
from US $1.60 |
||
|
35
|
35
68628-19B00-000 LABEL,THROTTLE POSITIONERE28 |
68628-19B00-000 |
US $2.36 |
||
|
36
|
36
02112-05123-000
Screw 5x12
E28 |
02112-05123-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-0512A-000 SCREWE28 |
02112-0512A-000 |
from US $0.80 |
||
|
37
|
37
08322-01053-000
Washer
E28 |
08322-01053-000 |
— | ||
| replacements | |||||
|
37
|
37
08322-0105B-000 WASHERE28 |
08322-0105B-000 |
from US $0.76 |
||
|
37
|
37
08322-0105A-000 WASHERWasher, front E28 |
08322-0105A-000 |
from US $0.80 |
||
