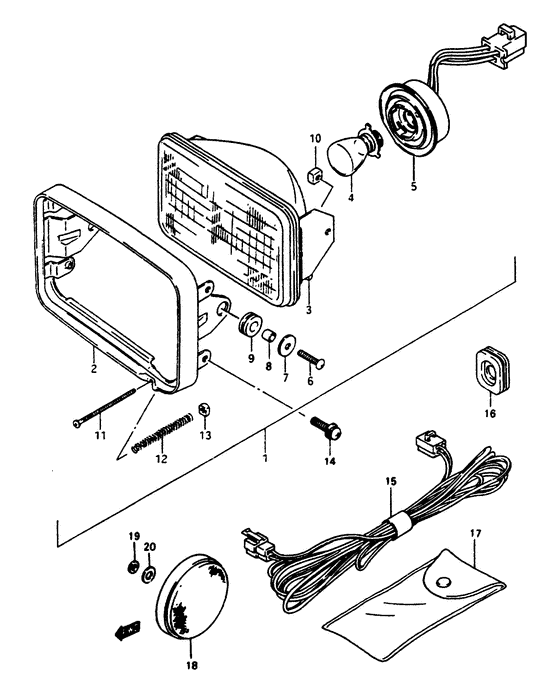

Headlamp Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-41B01-000
Lamp assy, head
|
35100-41B01-000 |
— | ||
|
2
|
2
35111-41B01-000
Rim, head lamp
|
35111-41B01-000 |
— | ||
|
3
|
3
35121-41B00-000
LAMP UNIT
|
35121-41B00-000 |
— | ||
|
4
|
4
09471-12080-000 BULB(12V45/45W,STANLEY,70281A)Bulb (12v,45/45w); |
09471-12080-000 |
from US $9.86 |
||
|
5
|
5
35171-41B00-000 SOCKET |
35171-41B00-000 |
from US $17 |
||
|
6
|
6
02112-05203-000
Screw
|
02112-05203-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
7
|
7
09160-05013-000 WASHER(5.2X16X1)Washer |
09160-05013-000 |
from US $0.76 |
||
|
8
|
8
35133-41B01-000
Spacer,headlamp
|
35133-41B01-000 |
— | ||
|
9
|
9
35139-41B01-000
CUSHION,HEADLAMP RIM
Cusion; |
35139-41B01-000 |
— | ||
|
10
|
10
35135-45900-000 NUT |
35135-45900-000 |
from US $1.60 |
||
|
11
|
11
35151-45900-000 SCREW |
35151-45900-000 |
from US $2.83 |
||
|
12
|
12
35154-41B00-000
SPRING
|
35154-41B00-000 |
— | ||
|
13
|
13
35135-45600-000 NUTNut Nut; |
35135-45600-000 |
from US $1.95 |
||
|
14
|
14
02112-75123-000
Screw
Screw; |
02112-75123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-7512A-000 SCREWScrew; |
02112-7512A-000 |
from US $3.83 |
||
|
15
|
15
36856-41B00-000 WIRE,HEADLAMP LEADWire, headlamp lead |
36856-41B00-000 |
from US $15.38 |
||
|
16
|
16
09320-13019-000
Cushion
|
09320-13019-000 |
— | ||
|
17
|
17
09811-00301-000
BAG,LEAD WIRE(PVC)
|
09811-00301-000 |
— | ||
|
18
|
18
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflex reflector, front side; E28 |
35950-14A00-000 |
from US $21.60 |
||
|
19
|
19
08321-01053-000
Lock washer
E28 |
08321-01053-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0105B-000 WASHER,LOCKE28 |
08321-0105B-000 |
from US $0.77 |
||
|
19
|
19
08321-0105A-000 WASHER,LOCKE28 |
08321-0105A-000 |
from US $0.76 |
||
|
20
|
20
08322-01053-000
Washer
E28 |
08322-01053-000 |
— | ||
| replacements | |||||
|
20
|
20
08322-0105B-000 WASHERE28 |
08322-0105B-000 |
from US $0.76 |
||
|
20
|
20
08322-0105A-000 WASHERWasher, front E28 |
08322-0105A-000 |
from US $0.80 |
||
