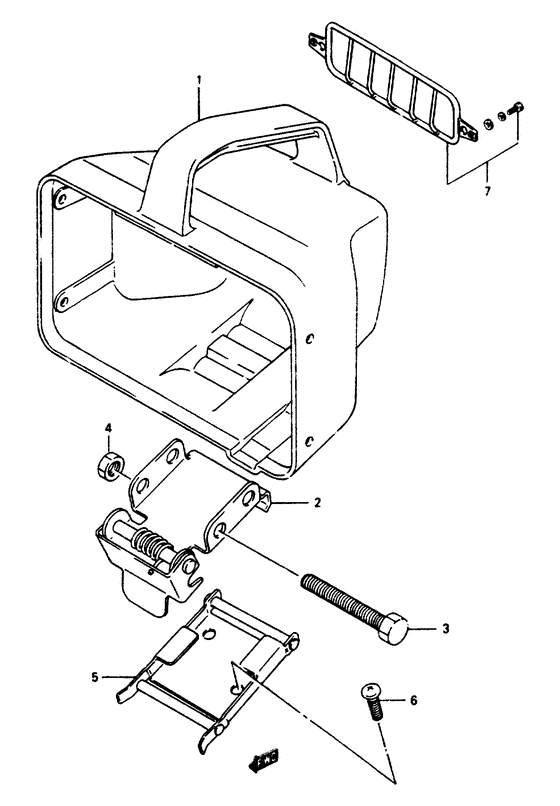

Headlamp housing Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-41B01-291 Housing,headlampHousing, headlamp (black) Housing, headlamp (black); |
51811-41B01-291 |
from US $48.58 |
||
|
2
|
2
51870-41B01-000
BRACKET,HEADLAMP HOUSING
|
51870-41B01-000 |
— | ||
|
3
|
3
01500-08603-000
Bolt
|
01500-08603-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0860B-000 Bolt |
01500-0860B-000 |
from US $5.59 |
||
|
4
|
4
08310-22085-000
Nut
|
08310-22085-000 |
— | ||
| replacement | |||||
|
4
|
4
09140-08021-000 NUT |
09140-08021-000 |
from US $3.59 |
||
|
5
|
5
51860-41B01-000
PLATE,HEADLAMP HOUSING
|
51860-41B01-000 |
— | ||
|
6
|
6
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
6
|
6
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
7
|
7
48500-19841-000
H/lgrdlt4wd(x)b
Guard, headlamp; Opt |
48500-19841-000 |
— | ||
| replacement | |||||
|
7
|
7
48500-19842-000 GUARD SET,HEADLAMPGuard, headlamp; Opt |
48500-19842-000 |
US $79.49 |
||
