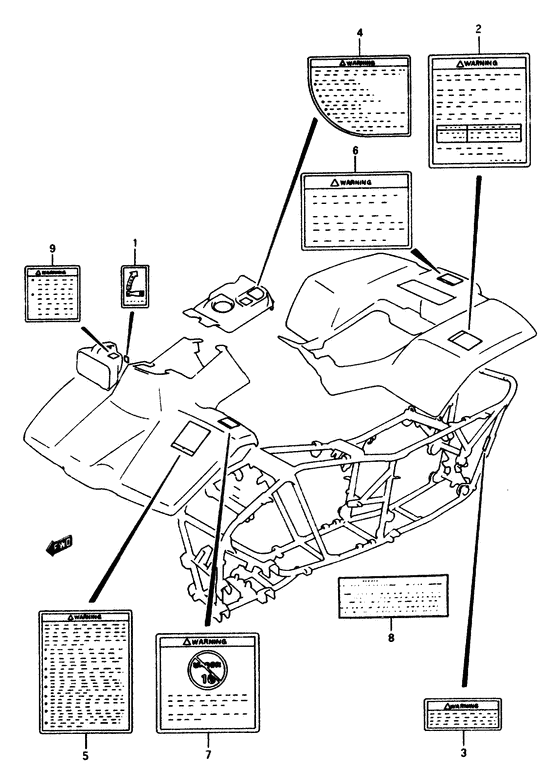

Label Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68392-24210-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift Label, gear shift pattern; |
68392-24210-000 |
from US $1.62 |
||
|
2
|
2
68332-20B20-000
Label,tire air
Label, tire air pressure; |
68332-20B20-000 |
— | ||
|
2
|
2
68332-20B30-000
Label, tire air pressure
Label, tire air pressure; E28 |
68332-20B30-000 |
— | ||
|
3
|
3
68617-20B00-000
LABEL,TRAILER TOW
Label, warning trailer; |
68617-20B00-000 |
— | ||
|
3
|
3
68617-20B10-000
Label, warning trailer
E28 |
68617-20B10-000 |
— | ||
|
4
|
4
68366-20B10-000
Label,warning
|
68366-20B10-000 |
— | ||
|
4
|
4
68366-20B20-000
Label, warning reverse
E28 |
68366-20B20-000 |
— | ||
|
5
|
5
68366-25C00-000 LABEL,WARNING MAIN |
68366-25C00-000 |
US $52.73 |
||
| replacement | |||||
|
5
|
5
68366-20B50-000
LABEL,GENERAL WARNING
|
68366-20B50-000 |
— | ||
|
5
|
5
68366-04600-000
Label, warning main
Label, warning main; E28 |
68366-04600-000 |
— | ||
|
6
|
6
68367-04620-000
LABEL,WARNING NO PASSENGER
Label, warning no passenger; |
68367-04620-000 |
— | ||
|
6
|
6
68367-04630-000
LABEL,WARNING
Label, warning no passenger; E28 |
68367-04630-000 |
— | ||
|
7
|
7
68367-25C00-000 LABEL,AGE 16Label, warning Label, warning age 16; |
68367-25C00-000 |
US $4.71 |
||
|
7
|
7
68367-04640-000
Label, age.16
Label, warning age 16; E28 |
68367-04640-000 |
— | ||
| replacements | |||||
|
7
|
7
68367-04641-000
LABEL,AGE 16
Label, warning age 16; E28 |
68367-04641-000 |
— | ||
|
7
|
7
68367-04642-000 Label,age 16Label, warning age 16; E28 |
68367-04642-000 |
US $9.20 |
||
|
8
|
8
68353-26E01-000
Label, manual notice
|
68353-26E01-000 |
— | ||
| replacements | |||||
|
8
|
8
68353-26E02-000
LABEL, OWNERs MANUAL NOTICE
|
68353-26E02-000 |
— | ||
|
8
|
8
68353-26E03-000 Label,manual Notice |
68353-26E03-000 |
from US $3.74 |
||
|
9
|
9
68367-20B00-000
LABEL,WARNING
|
68367-20B00-000 |
— | ||
|
9
|
9
68367-20B10-000
Label, warning
E28 |
68367-20B10-000 |
— | ||
|
10
|
10
99011-20B60-03A
Own man lt-f250
|
99011-20B60-03A |
— | ||
|
10
|
10
99011-20B60-28B
Manual, owner`s
E28 drawing not shown |
99011-20B60-28B |
— | ||
