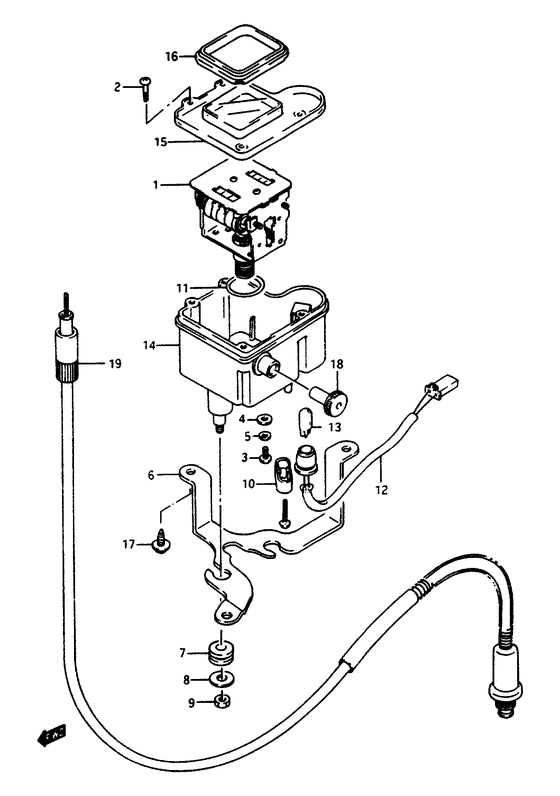

Odometer Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
34720-20B10-000
Odometer assy
Odometer (mile/kilo); |
34720-20B10-000 |
— | ||
|
8
|
8
34720-20B00-000
ODOMETER ASSY
Odometer (kilo); E28 |
34720-20B00-000 |
— | ||
|
1
|
1
34721-18A10-000
ODOMETER (MPH)
Odometer (mile/kilo); |
34721-18A10-000 |
— | ||
|
1
|
1
34721-18A00-000
Odometer (kilo)
Odometer (kilo); E28 |
34721-18A00-000 |
— | ||
|
2
|
2
09132-03008-000 SCREW(3X16)Tapping screw Tapping screw; |
09132-03008-000 |
from US $0.77 |
||
|
3
|
3
02112-04103-000
Screw 4x10
|
02112-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
4
|
4
08322-01043-000
Washer
|
08322-01043-000 |
— | ||
| replacements | |||||
|
4
|
4
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
4
|
4
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
|
5
|
5
08321-01043-000
Lock washer
|
08321-01043-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
6
|
6
34950-20B00-000
Bracket
|
34950-20B00-000 |
— | ||
|
7
|
7
34189-45410-000
Cushion speedom
|
34189-45410-000 |
— | ||
|
8
|
8
09160-05017-000
Washer
|
09160-05017-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
9
|
9
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
10
|
10
34193-20B00-000
Cover
|
34193-20B00-000 |
— | ||
|
11
|
11
34742-18A00-000
Packing
|
34742-18A00-000 |
— | ||
|
12
|
12
34170-20B00-000
Socket
|
34170-20B00-000 |
— | ||
|
13
|
13
09471-12028-000 BULB(12V3.4W,T10)Bulb (12v,3.4w); |
09471-12028-000 |
from US $1.98 |
||
|
14
|
14
34111-20B00-000
CASE
|
34111-20B00-000 |
— | ||
|
15
|
15
34150-20B00-000
LENS,ODOMETER
|
34150-20B00-000 |
— | ||
|
16
|
16
34726-18A00-000
Cushion
Packing, rubber; |
34726-18A00-000 |
— | ||
|
17
|
17
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
18
|
18
34124-18A00-000
Knob,trip
|
34124-18A00-000 |
— | ||
|
19
|
19
34910-20B00-000
CABLE ASSY,ODOMETER
|
34910-20B00-000 |
— | ||
| replacement | |||||
|
19
|
19
34910-20B01-000 Cable Assy,odometer |
34910-20B01-000 |
from US $39.38 |
||
