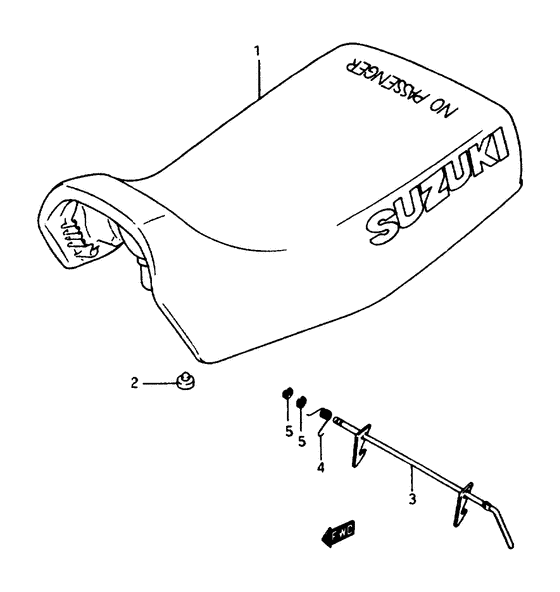

Seat Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-19B10-9MG
SEAT SET
E3,e33 |
45100-19B10-9MG |
— | ||
|
1
|
1
45100-19B30-9MG
SEAT SET
E28 |
45100-19B30-9MG |
— | ||
|
2
|
2
09329-10001-000 CUSHIONCushion; |
09329-10001-000 |
from US $1.82 |
||
|
3
|
3
45210-19B00-000
Clamp comp,seat
|
45210-19B00-000 |
— | ||
|
4
|
4
45135-24301-000 SPRING,SEAT CLAMP |
45135-24301-000 |
from US $2.83 |
||
|
5
|
5
08332-11063-000
E ring
E ring; |
08332-11063-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
5
|
5
08332-1106A-000 E RINGE ring, pinion E ring; |
08332-1106A-000 |
from US $0.77 |
||
