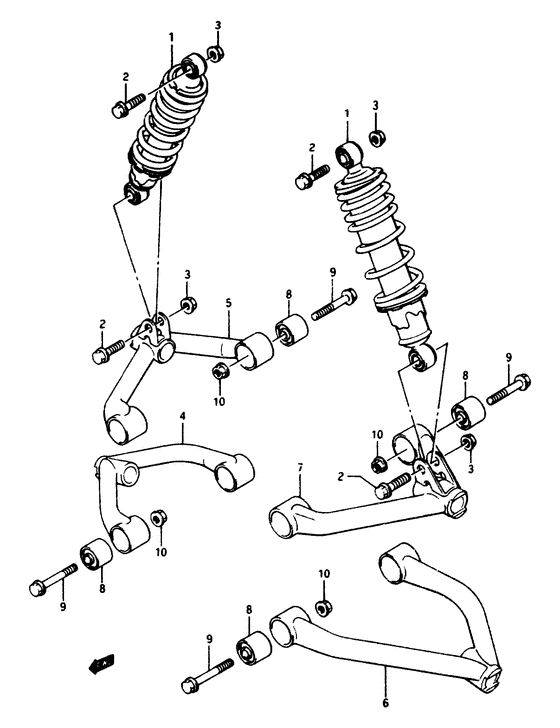

Suspension arm Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-20B00-019
ABSORBER ASSY,FR SHOCK
Absorber assy, front shock (black); |
52100-20B00-019 |
— | ||
|
2
|
2
09103-10019-000 BOLT(10X37)Bolt, shock absorber Bolt, shock absorber (10x37); |
09103-10019-000 |
from US $1.82 |
||
|
3
|
3
08319-31103-000
Nut
|
08319-31103-000 |
— | ||
| replacement | |||||
|
3
|
3
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
4
|
4
52410-20B00-000
ARM,SUSPENSION LWR,R
|
52410-20B00-000 |
— | ||
|
5
|
5
52430-20B00-000
ARM,SUSPENSION UPR,R
|
52430-20B00-000 |
— | ||
|
6
|
6
52420-20B00-000
ARM,SUSPENSION LWR,L
|
52420-20B00-000 |
— | ||
|
7
|
7
52440-20B00-000
Arm,usup,upper,
|
52440-20B00-000 |
— | ||
|
8
|
8
09319-10055-000 BUSHBush, suspension arm Bush, suspension arm; |
09319-10055-000 |
from US $11.68 |
||
|
9
|
9
09103-10107-000 BOLT(10X60)Bolt, suspension arm pivot Bolt, suspension arm pivot (10x60); |
09103-10107-000 |
from US $7.36 |
||
|
10
|
10
08319-31105-000
Nut
|
08319-31105-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
