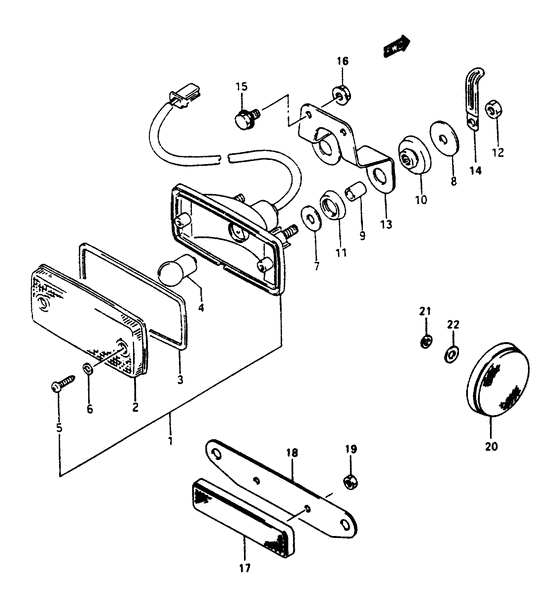

Tail lamp Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-41B02-000
LAMP ASSY,TAIL
|
35710-41B02-000 |
— | ||
|
2
|
2
35712-18A32-000 LENS |
35712-18A32-000 |
from US $13.14 |
||
|
3
|
3
35713-18A30-000 GASKET |
35713-18A30-000 |
from US $3.31 |
||
|
4
|
4
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
5
|
5
03212-04169-000 SCREWScrew |
03212-04169-000 |
from US $2.13 |
||
|
6
|
6
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
7
|
7
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) Washer (6.5x20x1.2); |
09160-06077-000 |
from US $0.96 |
||
|
8
|
8
09160-06504-000 Washer,6.5x29x1Washer (6.5x29x1.6) Washer (6.5x29x1.6); |
09160-06504-000 |
US $1.75 |
||
| replacement | |||||
|
8
|
8
09160-06136-000 WASHER(6.5X28X1.6)Washer (6.5x29x1.6); |
09160-06136-000 |
from US $0.96 |
||
|
9
|
9
09180-06289-000 SPACER(6.5X10X11.5)Spacer (6.8x10x11.5) Spacer (6.5x10x11.5); |
09180-06289-000 |
from US $1.68 |
||
|
10
|
10
09320-09012-000
CUSHION
|
09320-09012-000 |
— | ||
|
11
|
11
09320-14010-000
Cushion,tail la
|
09320-14010-000 |
— | ||
|
12
|
12
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
35726-19B01-000
BRACKET,TAIL LAMP
|
35726-19B01-000 |
— | ||
|
14
|
14
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
15
|
15
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
35970-44A00-000 REFLEX REFLECTOR,RRReflex reflector assy, rear; E28 |
35970-44A00-000 |
from US $15.97 |
||
|
18
|
18
35974-19B00-000
Bracker, rear rr
Bracket, rear; E28 |
35974-19B00-000 |
— | ||
|
19
|
19
08310-00053-000
Nut
E28 |
08310-00053-000 |
— | ||
| replacement | |||||
|
19
|
19
08310-0005A-000 NUTE28 |
08310-0005A-000 |
from US $0.80 |
||
|
20
|
20
35970-14A10-000 REFLEX REFLECTOR,RRReflector assy, rear side Reflex reflector assy, side; E28 |
35970-14A10-000 |
from US $21.57 |
||
|
21
|
21
08321-01053-000
Lock washer
E28 |
08321-01053-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0105B-000 WASHER,LOCKE28 |
08321-0105B-000 |
from US $0.77 |
||
|
21
|
21
08321-0105A-000 WASHER,LOCKE28 |
08321-0105A-000 |
from US $0.76 |
||
|
22
|
22
08322-01053-000
Washer
E28 |
08322-01053-000 |
— | ||
| replacements | |||||
|
22
|
22
08322-0105B-000 WASHERE28 |
08322-0105B-000 |
from US $0.76 |
||
|
22
|
22
08322-0105A-000 WASHERWasher, front E28 |
08322-0105A-000 |
from US $0.80 |
||
