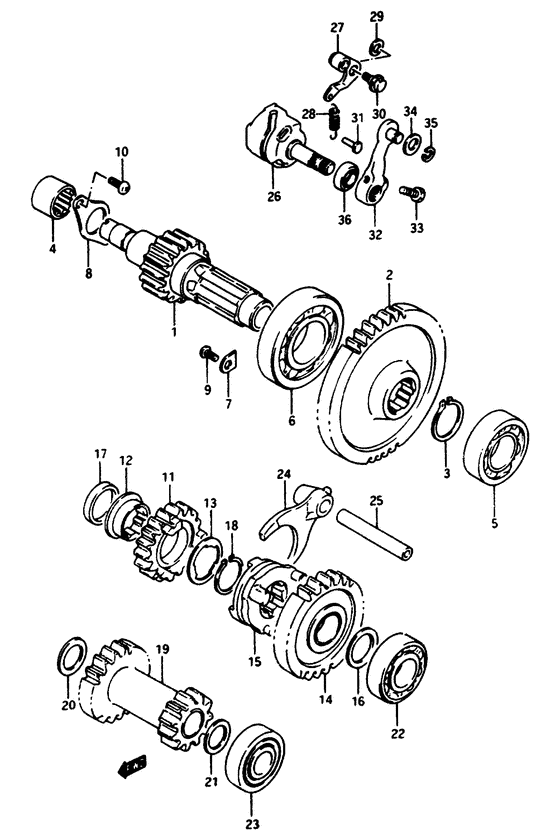

Transmission Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29121-20B00-000
SHAFT,SUB T/M OUTPUT
|
29121-20B00-000 |
— | ||
|
2
|
2
29311-20B00-000
GEAR,SUB T/M DRIVEN
Gear, driven no. 1 (nt:43); |
29311-20B00-000 |
— | ||
|
3
|
3
08331-31326-000
Circlip, driven gear
|
08331-31326-000 |
— | ||
| replacement | |||||
|
3
|
3
08331-3132A-000 CIRCLIP |
08331-3132A-000 |
from US $2.87 |
||
|
4
|
4
09263-18023-000 BEARING(18X26X16)Bearing, rh |
09263-18023-000 |
from US $23.74 |
||
|
5
|
5
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) Bearing, lh; |
09262-25003-000 |
from US $12.80 |
||
|
6
|
6
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) Bearing, middle (35x72x17); |
09262-35038-000 |
from US $22.04 |
||
|
7
|
7
24741-21A00-000 RETAINERRetainer; |
24741-21A00-000 |
from US $1.60 |
||
|
8
|
8
24751-19B00-000
RETAINER,T/M OUT SFT,R BRG
|
24751-19B00-000 |
— | ||
|
9
|
9
02112-06123-000
Screw, breather cover
Screw; |
02112-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0612B-000 SCREWScrew, oil guide plate Screw; |
02112-0612B-000 |
from US $0.76 |
||
|
9
|
9
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
10
|
10
02112-06163-000
Screw
Screw; |
02112-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-0616B-000 SCREWScrew; |
02112-0616B-000 |
from US $0.80 |
||
|
10
|
10
02112-0616A-000 SCREWScrew; |
02112-0616A-000 |
from US $0.76 |
||
|
11
|
11
29211-19B00-000
Gear,sub t/m dr
Gear, drive no. 1 (nt:18); |
29211-19B00-000 |
— | ||
| replacement | |||||
|
11
|
11
29211-19B01-000 GEAR SUB T/M DRIVE NO,1Gear, drive no. 1 (nt:18); |
29211-19B01-000 |
from US $52.80 |
||
|
12
|
12
29215-19B00-000
Bush
|
29215-19B00-000 |
— | ||
| replacement | |||||
|
12
|
12
29215-19B01-000 BUSH,SUB T/M DRIVE NO.1 GEARBush |
29215-19B01-000 |
from US $39.13 |
||
|
13
|
13
09167-25016-000 WASHER,LOCKLock washer Washer; |
09167-25016-000 |
from US $2.13 |
||
|
14
|
14
29220-19B00-000 GEAR,SUB T/M DRIVE NO.2Gear, drive no.2 (nt:25) Gear, drive no. 2 (nt:25); |
29220-19B00-000 |
from US $56.67 |
||
|
15
|
15
29231-19B00-000 DOG,SUB T/M DRIVEN SLIDINGDog, drive gear |
29231-19B00-000 |
US $46.37 |
||
|
16
|
16
09181-20195-000 SHIM(20X30X1)Washer (20x30x1.0); |
09181-20195-000 |
from US $1.82 |
||
|
17
|
17
09180-25083-000 SPACER(25X34X5.5)Spacer (25x34x5.5) Spacer (25x34x5.5); |
09180-25083-000 |
from US $16.27 |
||
|
18
|
18
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
19
|
19
29150-19B10-000 GEAR,SUB T/M IDLEGear, idle (nt:17/11) Gear, idle (nt:17/11); |
29150-19B10-000 |
from US $96.42 |
||
|
20
|
20
09180-17076-000 SPACER(17X24X4.5)Washer (17x24x4.5) Washer (17x24x4.5); |
09180-17076-000 |
from US $11 |
||
|
21
|
21
09181-15195-000 SHIM(15X26X1)Washer (15x26x1.0) Washer (15x26x1.0); |
09181-15195-000 |
from US $4.06 |
||
|
22
|
22
09262-20069-000 BEARING(20X47X14)Bearing, drive shaft lh; |
09262-20069-000 |
from US $11.52 |
||
|
23
|
23
09262-15022-000
BEARING(15X42X13)
Bearing, counter shaft lh; |
09262-15022-000 |
— | ||
| replacement | |||||
|
23
|
23
09262-15062-000 BearingBearing, counter shaft lh; |
09262-15062-000 |
from US $14.24 |
||
|
24
|
24
29511-19B00-000 FORK,SUB T/M GEAR SHIFT NO.1Fork, no.1 Fork, sub transmission; |
29511-19B00-000 |
from US $46.74 |
||
|
25
|
25
25421-35403-000 SHAFT,GEAR SHIFT FORKShaft, no.1 Shaft, sub transmission; |
25421-35403-000 |
from US $9.66 |
||
| replacement | |||||
|
25
|
25
25421-35410-000 SHAFT,GEAR SHIFT FORK NO.2Shaft, sub transmission Shaft, sub transmission; |
25421-35410-000 |
from US $12.14 |
||
|
26
|
26
29610-20B00-000
CAM,SUB T/M GEAR SHIFT
|
29610-20B00-000 |
— | ||
|
27
|
27
29630-19B00-000 STOPPER,SUB T/M SHIFT CAM |
29630-19B00-000 |
from US $8.54 |
||
|
28
|
28
09443-09042-000 SPRING |
09443-09042-000 |
from US $7.63 |
||
|
29
|
29
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
30
|
30
09111-06054-000 BOLT(6X14.6)Bolt (6x14.6); |
09111-06054-000 |
from US $5.03 |
||
|
31
|
31
09223-04001-000 RIVETPin Pin; |
09223-04001-000 |
from US $2.30 |
||
|
32
|
32
25360-19B70-000 ARM,T/M GEAR SHIFT |
25360-19B70-000 |
from US $34.96 |
||
|
33
|
33
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
34
|
34
08322-01083-000
WASHER
Washer; |
08322-01083-000 |
— | ||
| replacements | |||||
|
34
|
34
08322-0108B-000 WASHERWasher; |
08322-0108B-000 |
from US $0.80 |
||
|
34
|
34
08322-0108A-000 WASHERWasher; |
08322-0108A-000 |
from US $0.80 |
||
|
35
|
35
08332-11063-000
E ring
E ring; |
08332-11063-000 |
— | ||
| replacements | |||||
|
35
|
35
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
35
|
35
08332-1106A-000 E RINGE ring, pinion E ring; |
08332-1106A-000 |
from US $0.77 |
||
|
36
|
36
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Oil seal (12x22x9); |
09285-12006-000 |
from US $2.58 |
||
