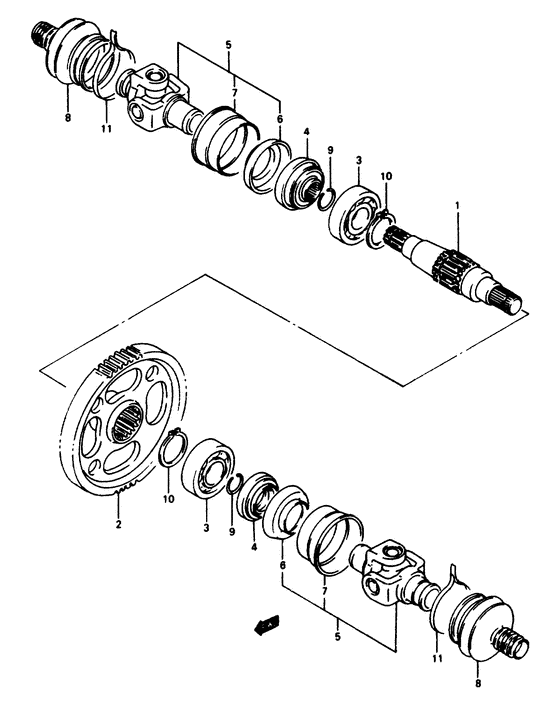

Transmission Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27551-19B10-000
SHAFT,RR FINAL DRIVEN
Shaft, rear final driven; |
27551-19B10-000 |
— | ||
| replacement | |||||
|
1
|
1
27551-19B11-000 SHAFT,RR FINAL DRIVENShaft, rear final driven; |
27551-19B11-000 |
from US $156.77 |
||
|
2
|
2
27541-19B10-000 GEAR,RR FINAL DRIVENGear, driven (nt:62) Gear, driven (nt:62); |
27541-19B10-000 |
US $179.95 |
||
|
3
|
3
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) Bearing (25x62x17); |
09262-25073-000 |
from US $14.59 |
||
|
4
|
4
09283-34008-000 SEAL,OIL(34X52X9) |
09283-34008-000 |
from US $11.44 |
||
|
5
|
5
27501-19B70-000
Joint,rr final
|
27501-19B70-000 |
— | ||
| replacement | |||||
|
5
|
5
27501-19B80-000 JOINT,RR FINAL OUTPUT |
27501-19B80-000 |
US $449.82 |
||
|
6
|
6
27592-19B70-000
Cover,output oi
Plate; |
27592-19B70-000 |
— | ||
| replacement | |||||
|
6
|
6
27592-19B80-000 COVER,OUTPUT OIL SEALPlate; |
27592-19B80-000 |
from US $19.50 |
||
|
7
|
7
27593-19B70-000 COVER,UNIVERSAL JOINTCover, universal joint Cover, universal joint; |
27593-19B70-000 |
from US $14.06 |
||
|
8
|
8
27153-19B70-000
BOOT,UNIVERSAL JOINT
|
27153-19B70-000 |
— | ||
| replacement | |||||
|
8
|
8
27153-19B71-000 Boot,universal Joint |
27153-19B71-000 |
US $19.69 |
||
|
9
|
9
09381-24001-000 RING,SNAPRing (od:24,d:1.6) Ring (od:24,d:1.6); |
09381-24001-000 |
from US $1.60 |
||
|
10
|
10
08331-31406-000
Circlip
|
08331-31406-000 |
— | ||
| replacement | |||||
|
10
|
10
08331-31409-000 CIRCLIP |
08331-31409-000 |
from US $4.88 |
||
|
11
|
11
44123-60A00-000 CLAMP,BOOTClamp, universal joint Clamp, universal joint; |
44123-60A00-000 |
from US $12.59 |
||
