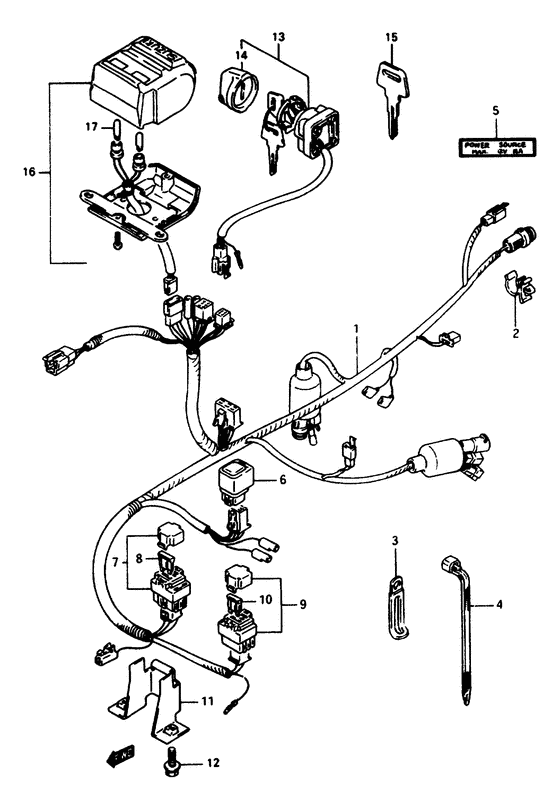

Wiring harness Diagram Suzuki LT-F250 QuadRunner 2WD
- Model code
- LT-F250V
- Engine Capacity
- 246
- Year
- 1997
- Frame
- JSAAJ47A*V2100001~
- Model
- QuadRunner 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-20B61-000
HARNESS,WIRING
|
36610-20B61-000 |
— | ||
|
2
|
2
09403-16307-000 CLAMP |
09403-16307-000 |
from US $1.12 |
||
|
3
|
3
09404-06432-000
CLAMP(L:65)
Clamp (l:65); |
09404-06432-000 |
— | ||
| replacement | |||||
|
3
|
3
09404-06039-000 Clamp(L:65)Clamp (l:65); |
09404-06039-000 |
from US $1.82 |
||
|
4
|
4
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
4
|
4
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
4
|
4
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
5
|
5
38852-19B10-000
LABEL,CAUTION MAX AMP
Label, power source; |
38852-19B10-000 |
— | ||
|
5
|
5
38852-19B20-000
Label, power source
Label, power source; E28 |
38852-19B20-000 |
— | ||
|
6
|
6
38730-19B00-000 RELAY,NEUTRAL STARTERRelay, neutral start Relay, neutral start; |
38730-19B00-000 |
from US $32 |
||
|
7
|
7
36740-04701-000 BOX ASSY,FUSE |
36740-04701-000 |
from US $24.80 |
||
|
8
|
8
09481-15101-000 FUSE(15A)Fuse (15a) Fuse (15a); |
09481-15101-000 |
from US $1.28 |
||
|
9
|
9
36740-04701-000 BOX ASSY,FUSE |
36740-04701-000 |
from US $24.80 |
||
|
10
|
10
09481-15101-000 FUSE(15A)Fuse (15a) Fuse (15a); |
09481-15101-000 |
from US $1.28 |
||
|
11
|
11
47410-19B00-000 HOLDER,ELECTRIC PARTS FRHolder, electric parts front Holder, electric parts front; |
47410-19B00-000 |
from US $6.40 |
||
|
12
|
12
09118-06103-000
09118-06103
|
09118-06103-000 |
— | ||
| replacement | |||||
|
12
|
12
09118-06055-000 BOLT(6X12) |
09118-06055-000 |
from US $3.83 |
||
|
13
|
13
37110-02C00-000
SWITCH ASSY,IGNITION
|
37110-02C00-000 |
— | ||
| replacement | |||||
|
13
|
13
37110-02C01-000 Switch Assy,ignition |
37110-02C01-000 |
from US $126.09 |
||
|
14
|
14
37142-19B00-000
MASCOT,KEY
Mascot, key; |
37142-19B00-000 |
— | ||
| replacement | |||||
|
14
|
14
37142-19B01-000 Mascot,keyMascot, key; |
37142-19B01-000 |
from US $5.76 |
||
|
15
|
15
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c Key, blank type c; Opt |
37146-19B00-000 |
from US $8.32 |
||
|
15
|
15
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d Key, blank type d; Opt |
37146-19B10-000 |
from US $4.82 |
||
|
16
|
16
36380-35B01-000
Box assy,pilot
|
36380-35B01-000 |
— | ||
| replacement | |||||
|
16
|
16
36380-35B0V-000
BOX ASSY,PILOT LAMP
|
36380-35B0V-000 |
— | ||
|
17
|
17
09471-12118-000 BULB(13.5V,2W,A7427)Bulb (13.5v,2w) Bulb (13.5v,2w); |
09471-12118-000 |
from US $2.13 |
||
