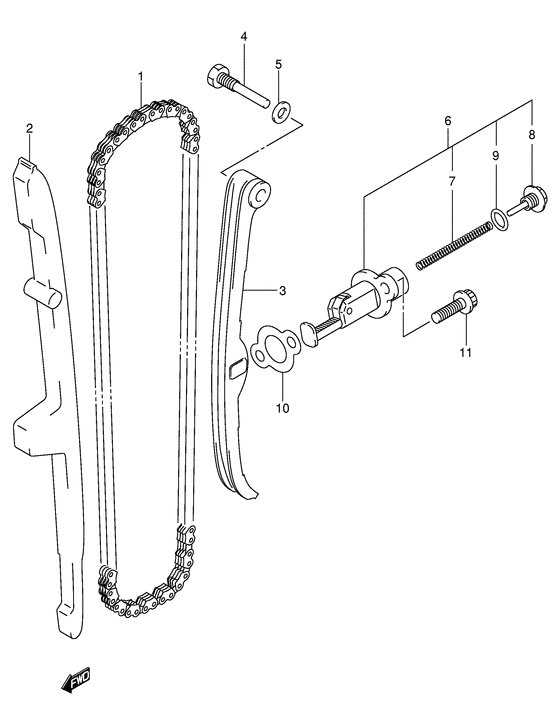

Cam chain Diagram Suzuki LT-F400 Eiger 4WD
- Model code
- LT-F400FK4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- 5SAAK46A*47100001~
- Power
- 25 hp
- Model
- Eiger 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12760-19B71-000 CHAIN,CAMSHAFT DRIVEChain, cam (108le) Chain, cam (108le); |
12760-19B71-000 |
from US $55.48 |
||
|
2
|
2
12771-14D10-000
GUIDE,CAM CHAIN
|
12771-14D10-000 |
— | ||
| replacement | |||||
|
2
|
2
12771-14D11-000 Guide,cam Chain |
12771-14D11-000 |
US $51.03 |
||
|
3
|
3
12811-14D10-000
TENSIONER,CAM CHAIN
|
12811-14D10-000 |
— | ||
| replacement | |||||
|
3
|
3
12811-14D11-000 Tensioner,cam Chain |
12811-14D11-000 |
from US $52.45 |
||
|
4
|
4
12812-32410-000 BOLT,CAM CHAIN TENSIONERBolt |
12812-32410-000 |
from US $2.80 |
||
|
5
|
5
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Washer; |
09168-08016-000 |
from US $1.22 |
||
|
6
|
6
12830-29B11-000 ADJUSTER ASSY,TENSIONER |
12830-29B11-000 |
from US $96.80 |
||
|
7
|
7
12833-29B00-000 SPRING |
12833-29B00-000 |
from US $2.28 |
||
|
8
|
8
12834-26B00-000 PLUG,ADJUSTERPlug; |
12834-26B00-000 |
from US $17.60 |
||
|
9
|
9
12832-02A00-000 O RING |
12832-02A00-000 |
from US $2.11 |
||
|
10
|
10
12837-19B10-000 GASKET,TENSIONER ADJUSTERGasket, adjuster; Model k3/k4 |
12837-19B10-000 |
from US $1.82 |
||
|
10
|
10
12837-14D00-000 GASKET,TENSIONER ADJUSTER(NA)Gasket, adjuster; Model k5/k6/k7 |
12837-14D00-000 |
from US $1.62 |
||
| replacement | |||||
|
10
|
10
12837-19B10-000 GASKET,TENSIONER ADJUSTERGasket, adjuster; Model k5/k6/k7 |
12837-19B10-000 |
from US $1.82 |
||
|
11
|
11
07120-06203-000
Bolt
|
07120-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
07120-0620B-000 BOLT |
07120-0620B-000 |
from US $0.96 |
||
