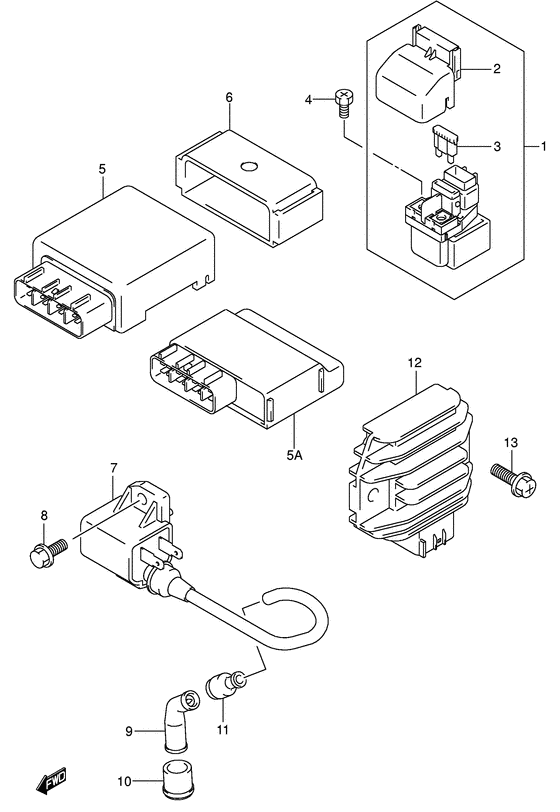

Electrical Diagram Suzuki LT-F400 Eiger 4WD
- Model code
- LT-F400FK4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- 5SAAK46A*47100001~
- Power
- 25 hp
- Model
- Eiger 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-03G00-000 RELAY ASSY,STARTING MOTOR |
31800-03G00-000 |
from US $130.40 |
||
|
2
|
2
31861-26E00-000 COVER,STARTER RELAYCover, starter relay; |
31861-26E00-000 |
from US $1.92 |
||
|
3
|
3
09481-30101-000 FUSE(30A)Fuse, 30a; |
09481-30101-000 |
from US $1.22 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Bolt, starting motor term; |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32900-38F10-000 CDI UNITModel k3/k4 |
32900-38F10-000 |
from US $601.92 |
||
|
5A
|
5A
32900-38F30-000 CDI UNITModel k5/k6/k7 |
32900-38F30-000 |
from US $601.92 |
||
|
6
|
6
32980-38F00-000 CUSHION,CDI UNITHolder, cdi unit |
32980-38F00-000 |
from US $6.29 |
||
|
7
|
7
33410-41D20-000 COIL ASSY,IGNITION |
33410-41D20-000 |
from US $78.02 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
33510-43010-000 Cap,spark plugCap, spark plug Cap, spark plug; |
33510-43010-000 |
from US $19.73 |
||
|
10
|
10
33541-44D00-000 SEAL,SPARK PLUG |
33541-44D00-000 |
from US $4.93 |
||
|
11
|
11
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
12
|
12
32800-38F10-000 Rectifier AssyRectifier/regulator |
32800-38F10-000 |
from US $290.32 |
||
|
13
|
13
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
