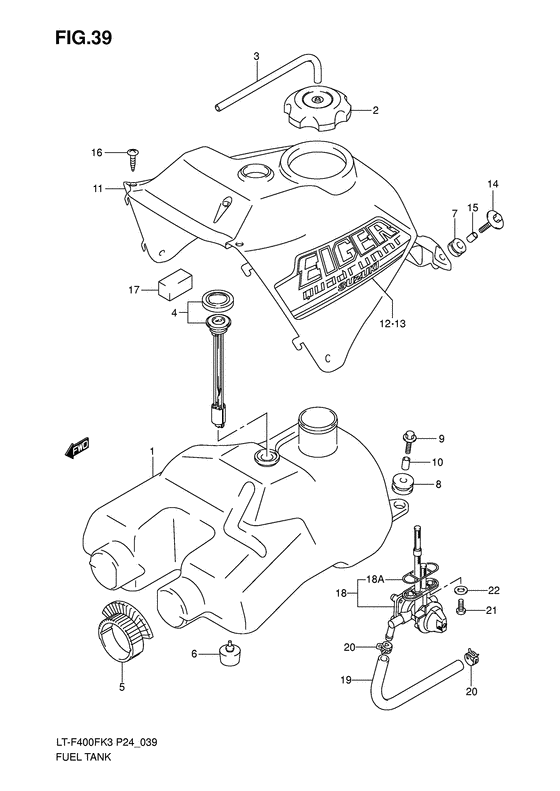

Fuel tank (Model k3) Diagram Suzuki LT-F400 Eiger 4WD
- Model code
- LT-F400FK4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- 5SAAK46A*47100001~
- Power
- 25 hp
- Model
- Eiger 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-38F00-000
TANK ASSY,FUEL
|
44100-38F00-000 |
— | ||
|
2
|
2
44200-29F00-000
CAP ASSY,FUEL TANK FILLER
|
44200-29F00-000 |
— | ||
| replacement | |||||
|
2
|
2
44200-29F01-000 Cap Assy,fuel Tank Filler |
44200-29F01-000 |
from US $37.90 |
||
|
3
|
3
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->80); |
09352-50823-600 |
— | ||
| replacements | |||||
|
3
|
3
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->80); |
44420-44AR0-000 |
US $11.95 |
||
|
3
|
3
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->80); |
09352-50005-600 |
US $4.10 |
||
|
4
|
4
44580-38F01-000
Gauge assy, fuel level
|
44580-38F01-000 |
— | ||
| replacement | |||||
|
4
|
4
44580-38F02-000 GAUGE ASSY,FUEL LEVEL |
44580-38F02-000 |
US $85.65 |
||
|
5
|
5
44511-38F00-000
CUSHION,FUEL TANK FR
|
44511-38F00-000 |
— | ||
| replacement | |||||
|
5
|
5
44511-38F01-000 Cushion,fuel Tank Fr |
44511-38F01-000 |
from US $9.20 |
||
|
6
|
6
44543-38F00-000
CUSHION,FUEL TANK LWR
Cushion, lower; |
44543-38F00-000 |
— | ||
| replacement | |||||
|
6
|
6
44543-38F01-000 Cushion,fuel Tank LwrCushion, lower; |
44543-38F01-000 |
from US $5.37 |
||
|
7
|
7
45141-09F00-000 CUSHION,MOUNTCushion, seat mount Cushion, seat mount; |
45141-09F00-000 |
from US $2.94 |
||
|
8
|
8
44281-03G00-000 CUSHION,FUEL TANK RRCushion, rear; |
44281-03G00-000 |
from US $3.31 |
||
|
9
|
9
09116-06050-000 BOLT(6X30) |
09116-06050-000 |
from US $3.57 |
||
|
10
|
10
44544-38F00-000 SPACER,FUEL TANK |
44544-38F00-000 |
from US $5.59 |
||
|
11
|
11
44271-38F00-YT8
Cover, tank (green)
Cover, tank (green); ~f.no.5saak46a3x102000 |
44271-38F00-YT8 |
— | ||
| replacement | |||||
|
11
|
11
44271-38F10-YT8
COVER,FUEL TANK
Cover, tank (green); ~f.no.5saak46a3x102000 |
44271-38F10-YT8 |
— | ||
|
11
|
11
44271-38F10-YT8
COVER,FUEL TANK
Cover, tank (green); F.no.5saak46a3x102001~ |
44271-38F10-YT8 |
— | ||
|
11
|
11
44271-38F00-YT9
Cover, tank (red)
Cover, tank (red); ~f.no.5saak46a3x102000 |
44271-38F00-YT9 |
— | ||
| replacement | |||||
|
11
|
11
44271-38F10-YT9 COVER,FUEL TANKCover, tank (red); ~f.no.5saak46a3x102000 |
44271-38F10-YT9 |
from US $76.50 |
||
|
11
|
11
44271-38F10-YT9 COVER,FUEL TANKCover, tank (red); F.no.5saak46a3x102001~ |
44271-38F10-YT9 |
from US $76.50 |
||
|
12
|
12
68111-38F00-YAM
EMBLEM,TANK COVER,R(GREEN)
For yt8 |
68111-38F00-YAM |
— | ||
|
12
|
12
68111-38F00-YAN
EMBLEM,TANK COVER,R(RED)
For yt9 |
68111-38F00-YAN |
— | ||
|
13
|
13
68121-38F00-YAM EMBLEM,TANK COVER,L(GREEN)For yt8 |
68121-38F00-YAM |
from US $45.63 |
||
|
13
|
13
68121-38F00-YAN
Emblem, cover lh
For yt9 |
68121-38F00-YAN |
— | ||
|
14
|
14
01550-06203-000
Bolt
Bolt, rear; |
01550-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0620B-000 BOLTBolt, inspection cap Bolt, rear; |
01550-0620B-000 |
from US $0.76 |
||
|
15
|
15
09180-06267-000 SPACER(6.5X9X12.5) |
09180-06267-000 |
from US $5.59 |
||
|
16
|
16
03241-15163-000
Screw, side panel
Screw, front; |
03241-15163-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-1516A-000 SCREWScrew, cover rear Screw, front; |
03241-1516A-000 |
from US $0.76 |
||
|
17
|
17
47161-04A00-000
Cushion, 2nd air cover inner
|
47161-04A00-000 |
— | ||
| replacement | |||||
|
17
|
17
47191-22D00-000 RUBBERCushion, front |
47191-22D00-000 |
from US $2.65 |
||
|
18
|
18
44300-38F02-000
COCK ASSY,FUEL
|
44300-38F02-000 |
— | ||
| replacement | |||||
|
18
|
18
44300-38F03-000 Cock Assy,fuel |
44300-38F03-000 |
from US $107.82 |
||
|
18A
|
18A
44348-38F00-000 O RING |
44348-38F00-000 |
from US $3.39 |
||
|
19
|
19
44421-38F10-000
Hose, fuel
~f.no.5saak46a3x102000 |
44421-38F10-000 |
— | ||
| replacement | |||||
|
19
|
19
44421-38F20-000 HOSE,FUEL~f.no.5saak46a3x102000 |
44421-38F20-000 |
from US $14.98 |
||
|
19
|
19
44421-38F20-000 HOSE,FUELF.no.5saak46a3x102001~ |
44421-38F20-000 |
from US $14.98 |
||
|
20
|
20
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
21
|
21
09103-06277-000 BOLT(6X14)Screw; |
09103-06277-000 |
from US $3.59 |
||
|
22
|
22
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
