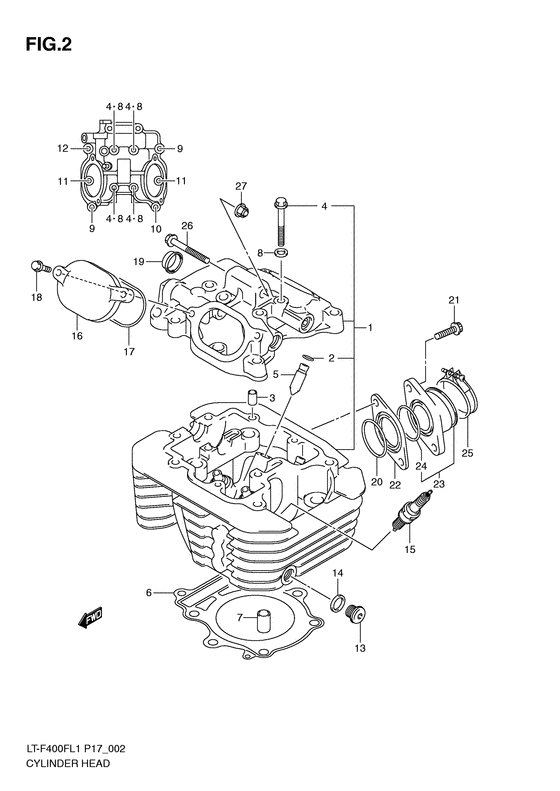

Cylinder head Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL1
- Engine Capacity
- 376
- Year
- 2011
- Sales region
- Sweden (P17)
- Frame
- 5SAAK4CA*B7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-27H10-000 HEAD ASSY,CYLINDER |
11100-27H10-000 |
from US $696.96 |
||
|
2
|
2
09381-10004-000 RING,SNAPRing, valve guide Ring,; |
09381-10004-000 |
from US $1.06 |
||
|
3
|
3
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
4
|
4
09103-06102-000 BOLT(6X55)Bolt (6x55); |
09103-06102-000 |
from US $1.52 |
||
|
5
|
5
11115-14D71-000 GUIDE,VALVEGuide, valve (os:0.3); Opt |
11115-14D71-000 |
from US $18.48 |
||
|
6
|
6
11141-38F00-000 GASKET,CYLINDER HEAD |
11141-38F00-000 |
US $48.25 |
||
|
7
|
7
09206-13004-000 PIN(10.4X13X22)Pin (l:22) Pin; |
09206-13004-000 |
from US $3.69 |
||
|
8
|
8
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
9
|
9
09103-06108-000 BOLT(6X35)Bolt, head cover l:35 Bolt (6x35); |
09103-06108-000 |
from US $3.04 |
||
|
10
|
10
09103-06026-000 BOLT(6X39)Bolt (6x39) Bolt (6x39); |
09103-06026-000 |
from US $0.95 |
||
|
11
|
11
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
13
|
13
09248-12004-000 PLUG(L:12)Plug, oil gallery |
09248-12004-000 |
from US $10.13 |
||
|
14
|
14
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); |
09168-12002-000 |
from US $0.76 |
||
|
15
|
15
09482-00516-000 PLUG,SPARK(CR7E)Spark plug (ngk,cr7e); |
09482-00516-000 |
from US $9.69 |
||
|
15
|
15
09482-00515-000 PLUG,SPARK(U22ESR-N)Spark plug (denso,u22esr-n); |
09482-00515-000 |
US $9.30 |
||
|
15
|
15
09482-00528-000 PLUG,SPARK(CR6E)Spark plug (ngk,cr6e); Opt |
09482-00528-000 |
from US $9.69 |
||
|
15
|
15
09482-00529-000 PLUG,SPARK(U20ESR-N)Spark plug (denso u20esr-n); Opt |
09482-00529-000 |
from US $6.40 |
||
|
15
|
15
09482-00456-000 PLUG,SPARK NGK(CR8E)Spark plug (ngk,cr8e); Opt |
09482-00456-000 |
from US $10.10 |
||
|
15
|
15
09482-00457-000 PLUG,SPARK(U24ESR-N)Spark plug (denso u24esr-n); Opt |
09482-00457-000 |
from US $4.68 |
||
|
16
|
16
11175-47D00-000 CAP,INSPECTION |
11175-47D00-000 |
from US $11.78 |
||
|
17
|
17
11177-14D01-000 O RING,INSPECTION CAPO ring, inspection cap O ring, inspection cap; |
11177-14D01-000 |
from US $2.64 |
||
|
18
|
18
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
19
|
19
09241-25007-000 PLUG,OD:30 |
09241-25007-000 |
from US $7.90 |
||
|
20
|
20
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); |
09280-40010-000 |
— | ||
| replacement | |||||
|
20
|
20
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); |
09280-40020-000 |
from US $4.59 |
||
|
21
|
21
07120-0625A-000 BOLTBolt, cylinder head (l25) Screw; |
07120-0625A-000 |
from US $0.91 |
||
|
22
|
22
13117-38F00-000
Insulator, intake pipe
|
13117-38F00-000 |
— | ||
| replacement | |||||
|
22
|
22
13117-38F01-000 INSULATOR,INTAKE PIPE |
13117-38F01-000 |
US $12.44 |
||
|
23
|
23
13101-27H00-000
PIPE ASSY,INTAKE
|
13101-27H00-000 |
— | ||
| replacement | |||||
|
23
|
23
13101-27H01-000 Pipe Assy,intake |
13101-27H01-000 |
from US $29.62 |
||
|
24
|
24
13118-38F00-000 O RING |
13118-38F00-000 |
from US $2.65 |
||
|
25
|
25
09402-54208-000 CLAMP |
09402-54208-000 |
from US $8.91 |
||
|
26
|
26
09103-08217-000 BOLT(8X60)Bolt (8x60) Bolt (8x60); |
09103-08217-000 |
from US $5.07 |
||
|
27
|
27
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
