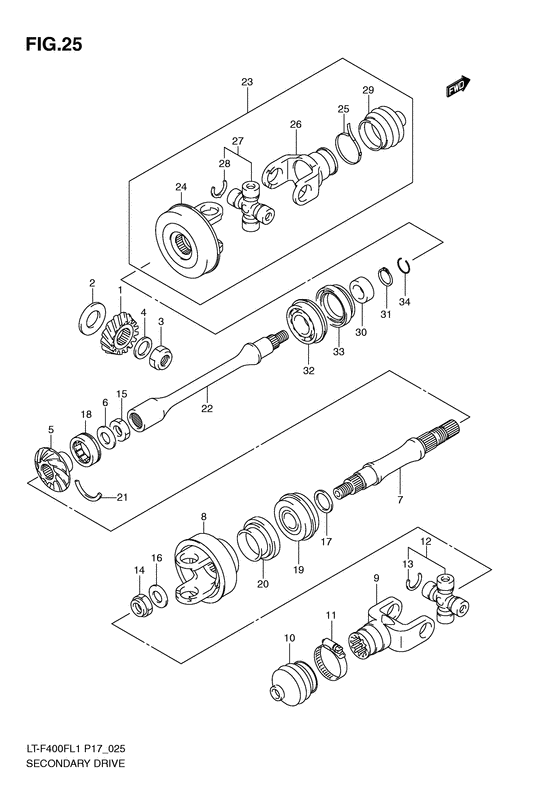

Secondary drive (Lt-f400fl1 p24) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL1
- Engine Capacity
- 376
- Year
- 2011
- Sales region
- Sweden (P17)
- Frame
- 5SAAK4CA*B7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24911-44D11-000 GEAR,SECONDARY DRIVE BEVELNt:15 |
24911-44D11-000 |
US $256.16 |
||
|
2
|
2
24935-03811-000 SHIM SET,SEC DRIVE BEVELShim set, sec drive bevel gr; T:0.25/0.30/0.35/0.55/0.58/0.60/, 0.63/0.65/0.68/0.70/0.73/0.75/, 0.78/0.80/0.83/0.85/0.88/0.90/, 0.93/0.95/0.98/1.00/1.03/1.05/, 1.08/1.10/1.13/1.15/1.18/1.20/, 1.23/1.25/1.28/1.30 |
24935-03811-000 |
from US $65.14 |
||
|
3
|
3
09140-20012-000 NUT |
09140-20012-000 |
from US $5.88 |
||
|
4
|
4
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr Washer (20.1x32x10); |
09181-20223-000 |
from US $1.82 |
||
|
5
|
5
24921-44D10-000 GEAR,SECONDARY DRIVE BEVEL |
24921-44D10-000 |
from US $132.48 |
||
|
6
|
6
08211-22362-000 WASHER |
08211-22362-000 |
US $22.80 |
||
|
7
|
7
24971-38F50-000 SHAFT,SEC DRIVEN OUTPUT RRShaft, sec driven output rr; |
24971-38F50-000 |
from US $137.63 |
||
|
8
|
8
27130-27H20-000 YOKE,RR DRIVE OUTPUTYoke, rear drive output Yoke, rr drive output; |
27130-27H20-000 |
US $110.40 |
||
|
9
|
9
27140-27H00-000
Yoke, prop shaft joint rear
Yoke, prop shaft joint rear; |
27140-27H00-000 |
— | ||
| replacement | |||||
|
9
|
9
27140-27H01-000 YOKE,PROP SHAFT JOINTYoke, prop shaft joint rear; |
27140-27H01-000 |
from US $73.23 |
||
|
10
|
10
27200-19810-000
JOINT SET,UNIVERSAL
Joint set, universal; |
27200-19810-000 |
— | ||
| replacement | |||||
|
10
|
10
27200-19811-000 JOINT SET,UNIVEJoint set, universal; |
27200-19811-000 |
US $80.36 |
||
|
11
|
11
27153-38F10-000 BOOT,RR OUTPUT JOINTBoot, rear output joint; |
27153-38F10-000 |
US $13.69 |
||
|
12
|
12
09402-00512-000 CLAMP |
09402-00512-000 |
from US $17.37 |
||
|
13
|
13
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
14
|
14
09159-16003-000 NUTNut, rear drive output yoke |
09159-16003-000 |
from US $1.67 |
||
|
15
|
15
09159-22005-000 NUT |
09159-22005-000 |
from US $31.84 |
||
|
16
|
16
09160-16026-000 WASHER(16X30X3)Washer (18.5x35x4) Washer (16x30x3); |
09160-16026-000 |
from US $4.10 |
||
|
17
|
17
24945-03811-000 SHIM SET,SEC DRIVEN BEVELShim set, sec driven; T:0.55/0.58/0.60/0.63/0.65/0.68/, 0.70/0.73/0.75/0.78/0.80/0.83/, 0.85/0.88/0.90/0.93/0.95/0.98/, 1.00/1.03/1.05/1.08/1.10/1.13/, 1.15/1.18/1.20/1.23/1.25/1.28/, 1.30/1.33/1.35/1.38/1.40 |
24945-03811-000 |
US $128.04 |
||
|
18
|
18
09263-30050-000 BEARING(30X50X17)Bearing (30x50x17); |
09263-30050-000 |
from US $22.05 |
||
|
19
|
19
09267-25014-000 BEARING(25X52X20.6)Brg, sec driven output sft rr Bearing (25x52x20.6); |
09267-25014-000 |
from US $60.35 |
||
|
20
|
20
09283-34008-000 SEAL,OIL(34X52X9)Oil seal (34x52x9); |
09283-34008-000 |
from US $11.44 |
||
|
21
|
21
09390-50002-000 C RINGRing; |
09390-50002-000 |
from US $4.13 |
||
|
22
|
22
24961-27H50-000 SHAFT,SEC DRIVEN OUTPUT FRShaft, sec driven output, fr; |
24961-27H50-000 |
from US $115.18 |
||
|
23
|
23
27100-27H10-000
Yoke assy, universal joint
|
27100-27H10-000 |
— | ||
| replacements | |||||
|
23
|
23
27100-27H11-000
YOKE ASSY,UNIVERSAL JOINT
|
27100-27H11-000 |
— | ||
|
23
|
23
27100-27H12-000 Yoke Assy,universal Joint |
27100-27H12-000 |
US $237.36 |
||
|
24
|
24
27130-27H10-000
Yoke, fr drive output
|
27130-27H10-000 |
— | ||
| replacement | |||||
|
24
|
24
27130-27H11-000 YOKE,FR DRIVE OUTPUT |
27130-27H11-000 |
US $111.50 |
||
|
25
|
25
44123-60A00-000 CLAMP,BOOTClamp, universal joint Clamp, boot; |
44123-60A00-000 |
from US $12.59 |
||
|
26
|
26
27140-27H00-000
Yoke, prop shaft joint rear
|
27140-27H00-000 |
— | ||
| replacement | |||||
|
26
|
26
27140-27H01-000 YOKE,PROP SHAFT JOINT |
27140-27H01-000 |
from US $73.23 |
||
|
27
|
27
27200-19810-000
JOINT SET,UNIVERSAL
Joint set, universal; |
27200-19810-000 |
— | ||
| replacement | |||||
|
27
|
27
27200-19811-000 JOINT SET,UNIVEJoint set, universal; |
27200-19811-000 |
US $80.36 |
||
|
28
|
28
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
29
|
29
27153-38F10-000 BOOT,RR OUTPUT JOINTBoot, propeller shaft yoke; |
27153-38F10-000 |
US $13.69 |
||
|
30
|
30
27591-27H00-000 COLLAR,FR DRIVE OUTPUT |
27591-27H00-000 |
from US $12.22 |
||
|
31
|
31
08331-3122A-000 Circlip, final drive gearCirclip, fr prive output |
08331-3122A-000 |
from US $0.64 |
||
| replacement | |||||
|
31
|
31
08331-31229-000 CIRCLIP |
08331-31229-000 |
from US $1.44 |
||
|
32
|
32
09262-25131-000 BEARING(25X52X15)Bearing (25x52x15); |
09262-25131-000 |
from US $29.62 |
||
|
33
|
33
09283-34008-000 SEAL,OIL(34X52X9)Seal (34x52x14); |
09283-34008-000 |
from US $11.44 |
||
|
34
|
34
09381-19005-000 CIRCLIPC ring, sec driven output C ring (21.5x1.2); |
09381-19005-000 |
from US $1.52 |
||
